Window Wheel

A quick learner from Slippery Rock says:
February 21, 2022
Hello,

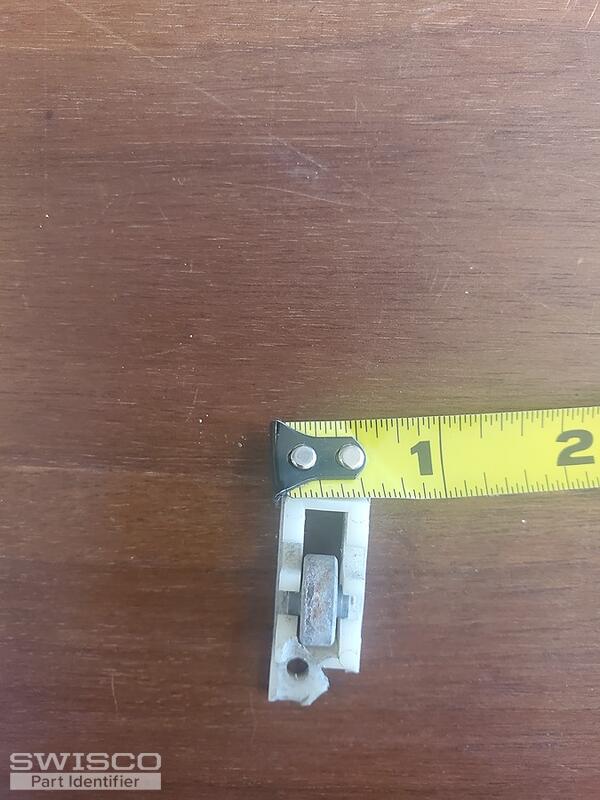

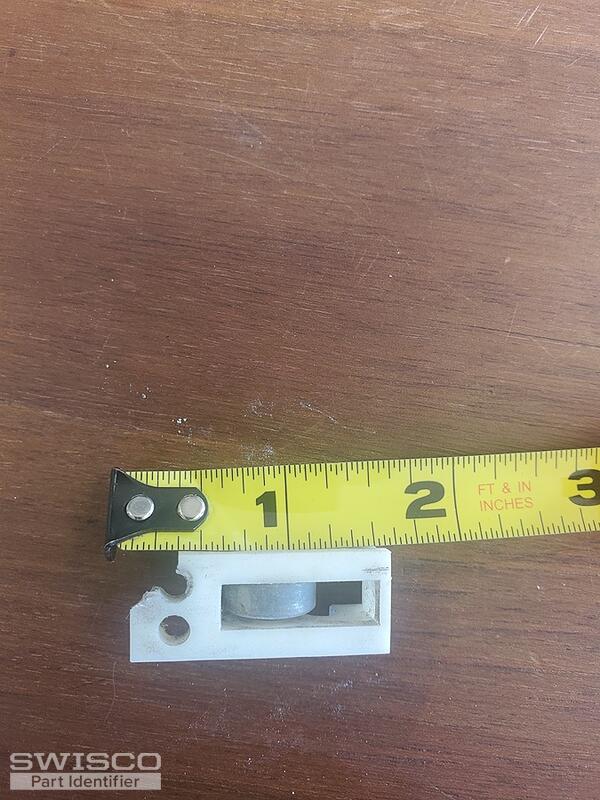

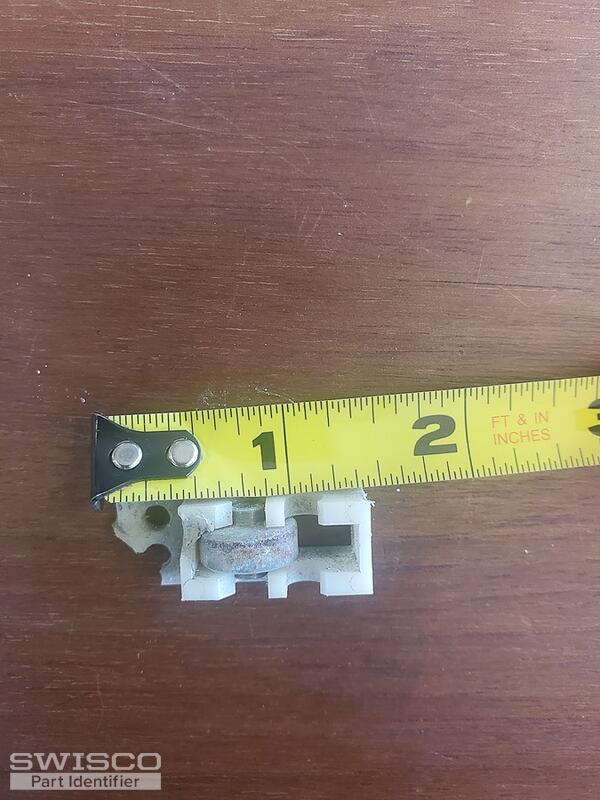

I am looking for (175) replacement wheels like the attached. These are commercial windows in a hotel.
Thumbnail of the uploaded file named 20220221_134140.jpg
Thumbnail of the uploaded file named 20220221_134155.jpg
Thumbnail of the uploaded file named 20220221_134212.jpg
Profile picture of Emily
Emily from SWISCO responded:
February 23, 2022

Hello there!

Start by comparing an undamaged roller to our 87-218 to see if this matches up for what you need.

Dimensions for 87-218
Dimensions for 87-218
A contractor from Slippery Rock says:
April 28, 2022
Hello,

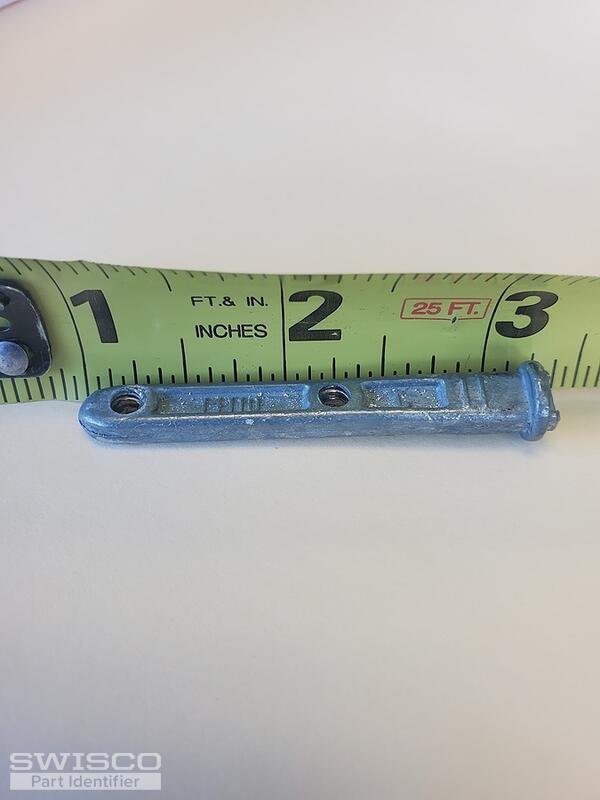

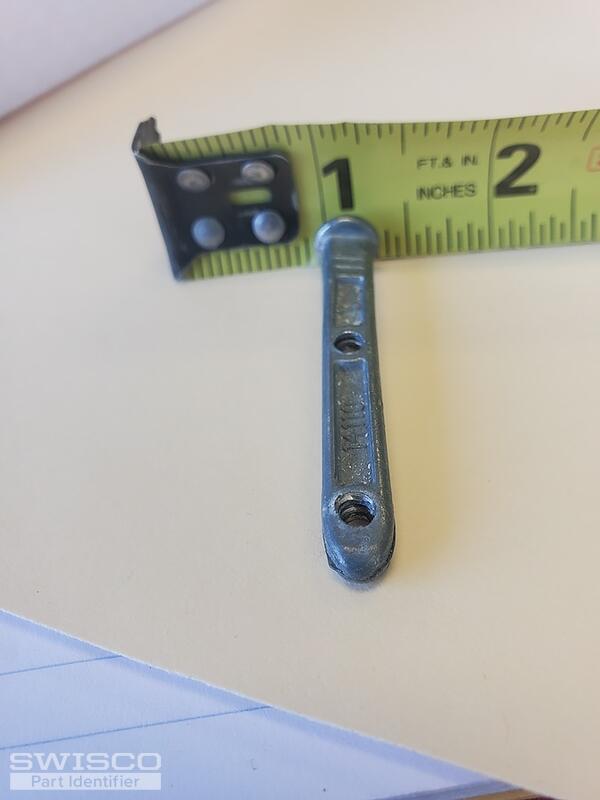

I am looking for these, let me know if you need any additional info.
Thumbnail of the uploaded file named 20220221_134212 (1).jpg
Thumbnail of the uploaded file named 20220221_134140 (1).jpg
Thumbnail of the uploaded file named 20220221_134155 (1).jpg
Thumbnail of the uploaded file named 20220428_142941.jpg
Thumbnail of the uploaded file named 20220428_142926.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 2, 2022

See our recommendation for your sliding window roller above. As for the pivot bar, see the 26-466 and compare the dimensions shown on our product page to yours. Thank you.
A contractor from Slippery Rock says:
May 4, 2022

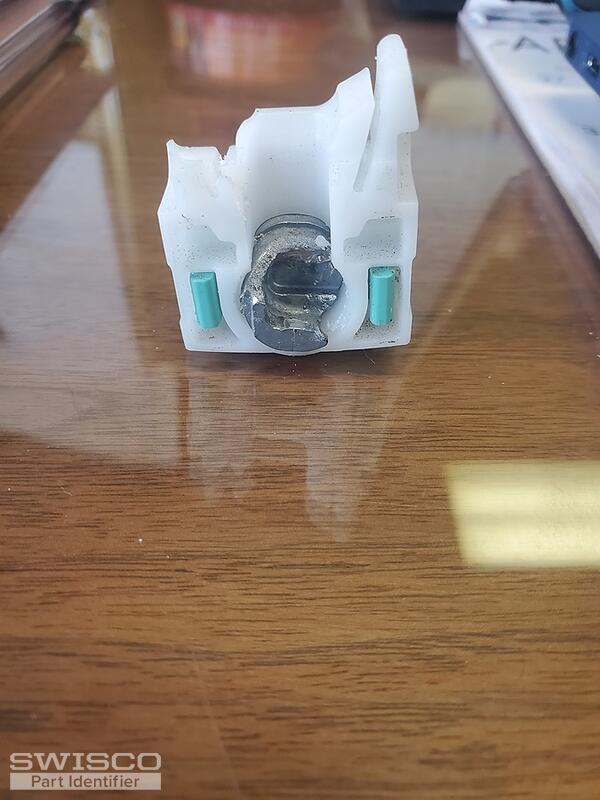

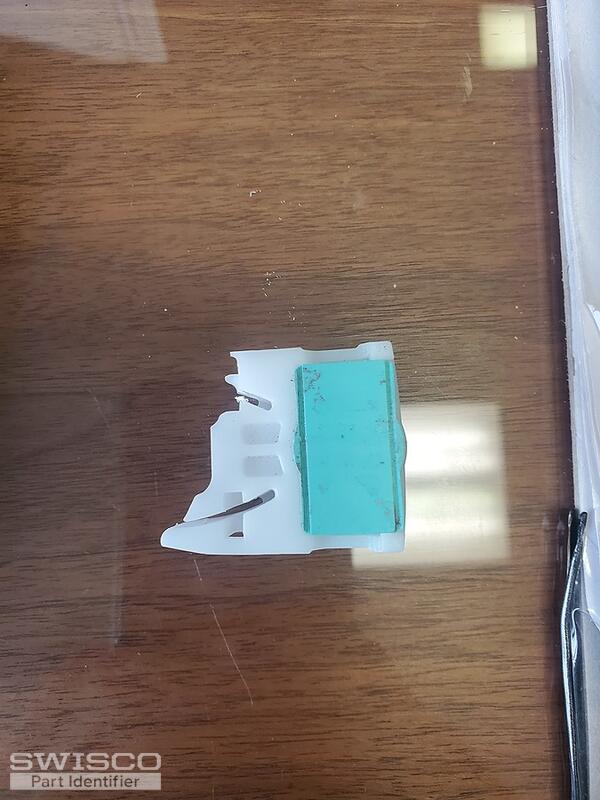

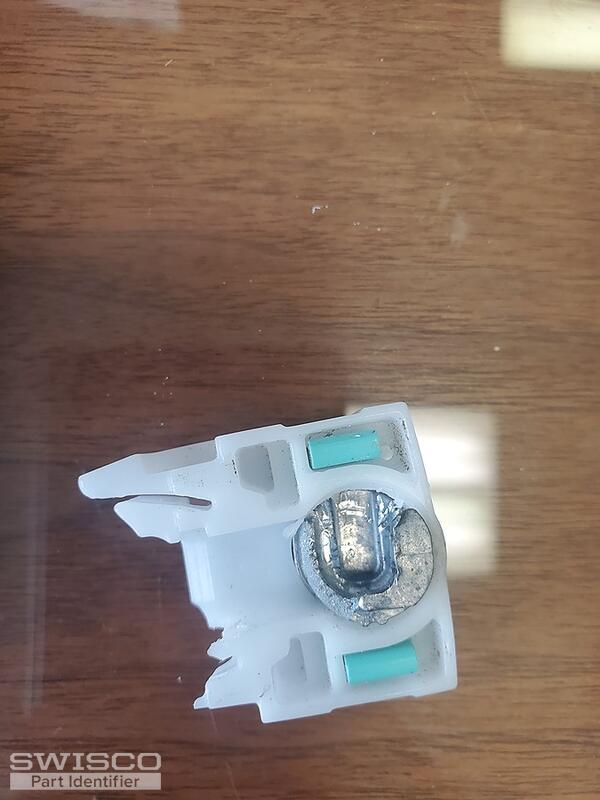

The roller assembly doesn't seem to match the photos I sent, please see the attached photos of what I am looking for.

Thanks,
Thumbnail of the uploaded file named McCloskey3.jpg
Thumbnail of the uploaded file named McCloskey2 .jpg
Thumbnail of the uploaded file named McCloskey1.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 4, 2022

I'm confused. Your first and second batch of pictures above looks like a dead ringer for our 87-218 roller but these new pictures are of a pivot shoe, not a roller assembly.
A contractor from Slippery Rock says:
May 6, 2022
Yes, I am looking for the piece that connects the balancer to the pivot bar.
Thumbnail of the uploaded file named McCloskey3.jpg
Thumbnail of the uploaded file named McCloskey2 .jpg
Thumbnail of the uploaded file named McCloskey1.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 6, 2022

Gotcha! I'm not familiar with this shoe but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available.

Thank you!
Profile picture of Paul
Paul from SWISCO responded:
May 9, 2022

Your pivot shoe looks like an older version of our 15-177 and is designed to use the Series 152 coil springs. These springs screw to the pivot shoe. Compare the dimensions to confirm everything lines up for what you need.
Roller Assembly With Ball Bearing Wheel
Roller Assembly With Ball Bearing Wheel
87-218
$4.69
Pivot Bar, 2-1/4"
Pivot Bar, 2-1/4"
26-466
$1.92
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
