Window Wizard Pivot Hardware
Handy Person from NJ
May 20, 2022 10:17 am

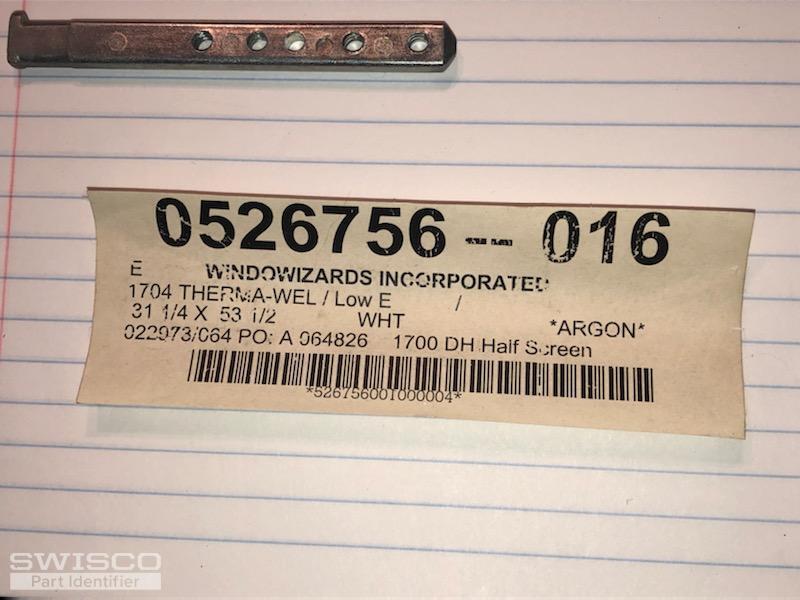

Looking for Pivot bar and slide block to mount window into . Window is from Window Wizard over 15 years ago. I suspect replacement bar is your part number 26-241. The side block I can't determine on your web site. I provided W Wizards window part number label for reference. Also can you recommend best lubricant to clean and condition inside of slide block/and rail. Some lubricants make the block squeal / shudder. Thank you
4 user uploaded images
6 Replies
Tom from SWISCO
May 24, 2022 12:36 pm
I agree, our 26-241 looks like a great match for your old pivot bar. I'm not sure about the shoe, either, though. I would like you to remove it from the window and carefully measure its width and thickness, then write out what you get for me to review. Those are the two most important dimensions, but you won't get accurate numbers while it's still in the track. Removal is necessary.
As for track lubrication, I like to use silicone spray. It works better than oil since it doesn't attract dirt and debris.
Handy Person from NJ
May 25, 2022 2:10 pm
Thanks ..these are the measurements are 2.15 " high, .55" thick and slightly under 1.3" wide. and the connects string/rope as shown in photos.
Tom from SWISCO
May 25, 2022 2:32 pm
We don't have anything with those exact dimensions, unfortunately. The closest option we have is our 15-129, which is a little off at 9/16" thick by 1-1/4" wide. That said, it is fully compatible with your pivot bar and balance. You may want to triple check your dimensions just to be safe.
Detail of 15-129
Handy Person from NJ
May 25, 2022 3:14 pm
I think it will fit. Will pivot bar 26-241 work with this or will I need something else?
Again Thanks
Phil
Again Thanks
Phil
Tom from SWISCO
May 25, 2022 4:10 pm
No, like I mentioned in my last response this shoe will be fully compatible with your style pivot bar.
