Window balacers

A quick learner from Sicklerville, NJ says:
September 20, 2022
Do You Have These Parts
Thumbnail of the uploaded file named IMG_7421.jpg
Thumbnail of the uploaded file named IMG_7422.jpg
Thumbnail of the uploaded file named IMG_7423.jpg
Thumbnail of the uploaded file named IMG_7431.jpg
Thumbnail of the uploaded file named IMG_7434.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 23, 2022

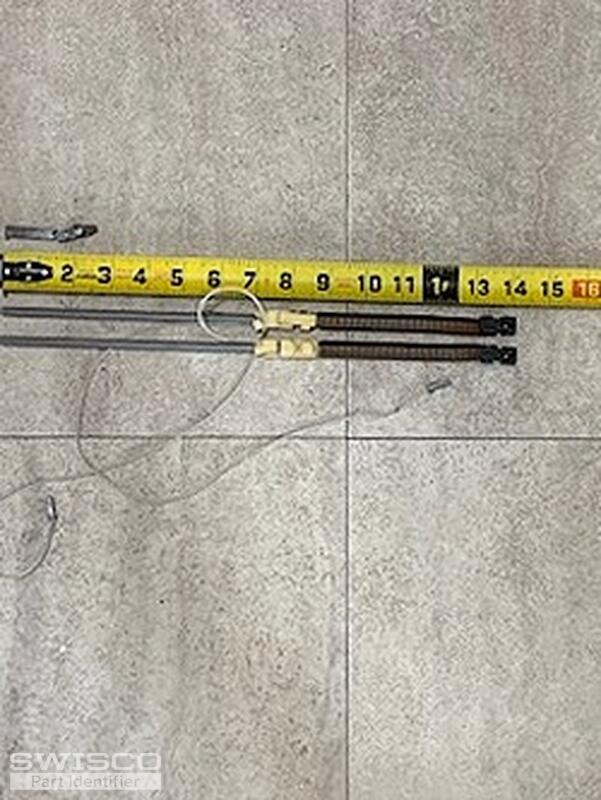

This is an old rod-type balance that hasn't been made in many years now. The good news is that you can use one of our modern channel balances to replace it, but it takes a little handiwork.

To start, can you verify that the diameter of the spring is 1/2"? If so, you can use our Series 795. The video below will cover the entire conversion process step by step, but I'm happy to answer any follow up questions you may have.

Note that if your spring is 3/8" instead of 1/2" then you have something else. I can help with that, too, just let me know.
A quick learner from Sicklerville, NJ says:
September 26, 2022
Good Morning Tom, thanks for you research and feedback. The diameter is 1/2, so series 795 should work. Also can I get feed back on the part shown on picture number 1. Pls advise
Profile picture of Tom
Tom from SWISCO responded:
September 27, 2022

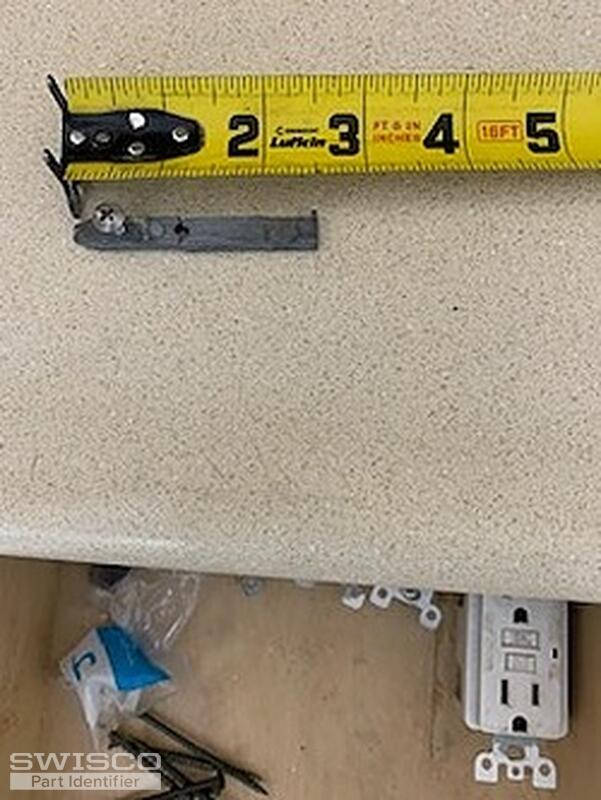

Your first picture appears to be of the balance. Could you be referring to the pivot bar? If so, what you show there might be our 26-021. However you should review our dimensions to ensure that they align.

Alternate image for 26-021
Alternate image for 26-021
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
