Window balance

A contractor from Charlotte NC says:
January 27, 2023

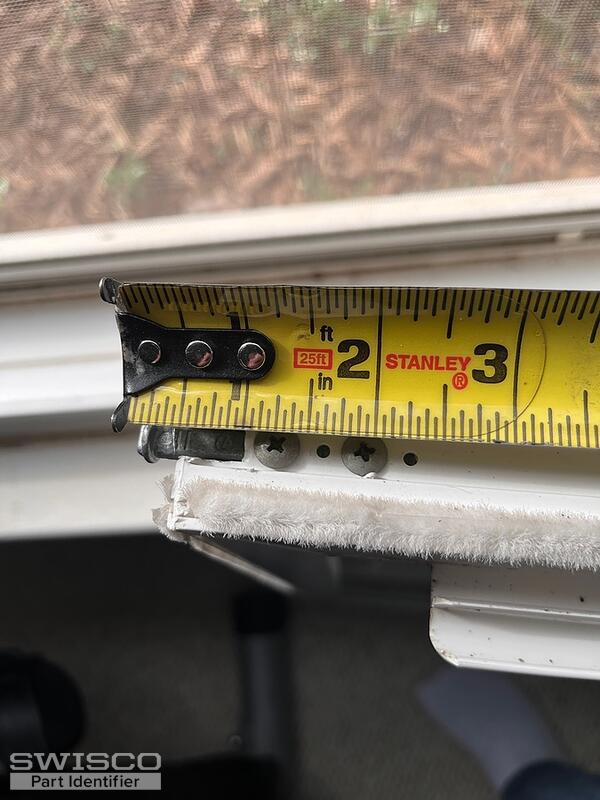

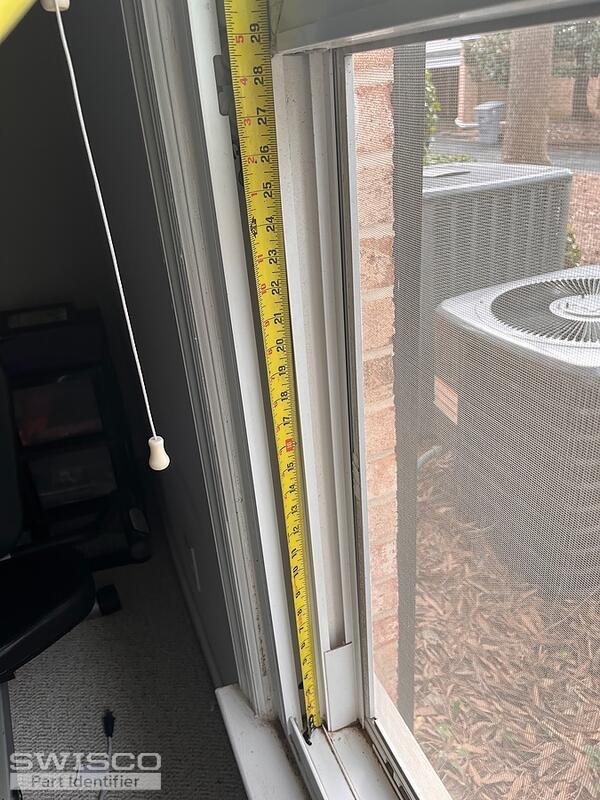

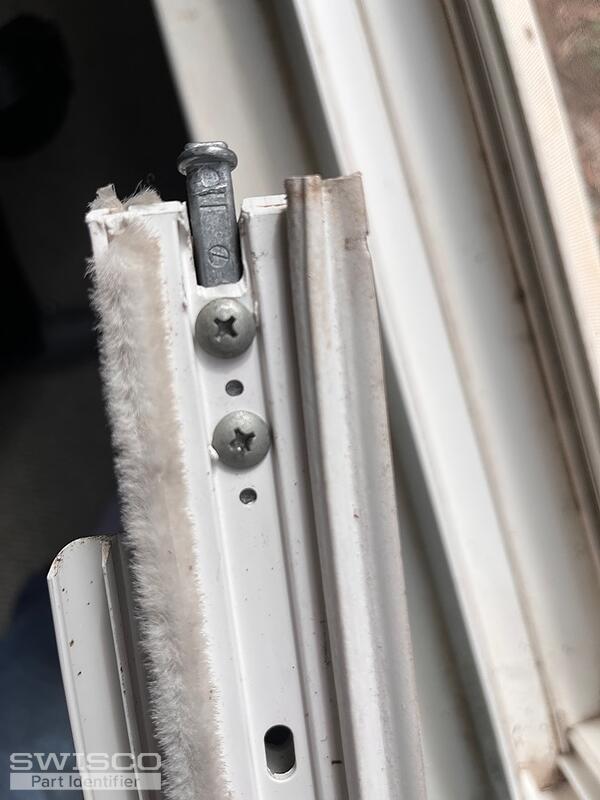

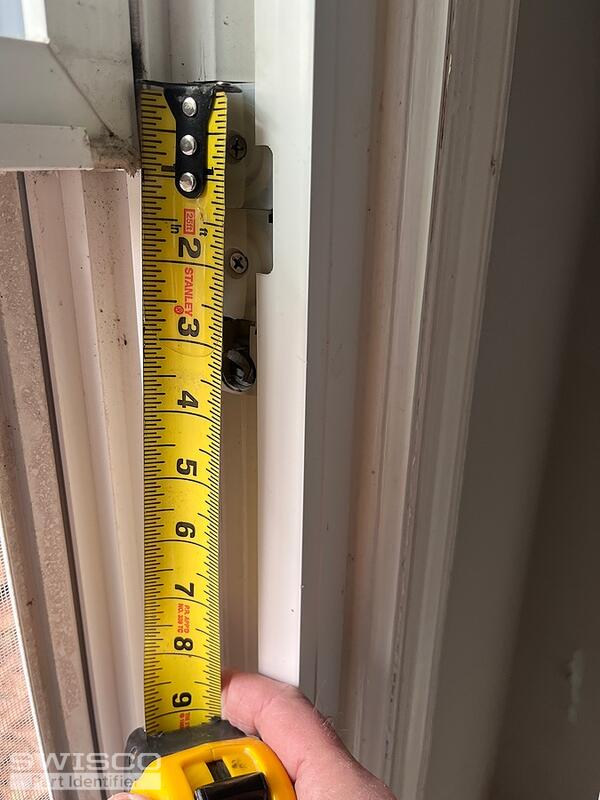

Please help with funding the part #'s
Thumbnail of the uploaded file named 7CA04930-C195-4E1C-A3E6-055384CB4749.jpeg
Thumbnail of the uploaded file named 9C4F4213-B68E-499C-86F1-612E30654BB0.jpeg
Thumbnail of the uploaded file named 29B6055C-FF59-48B0-86D8-D4B0AE82383B.jpeg
Thumbnail of the uploaded file named 491F4757-67DC-4F4E-A2B1-3DC99A1795A0.jpeg
Thumbnail of the uploaded file named E65805CD-E046-49FF-B243-28129AB3F101.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:
January 30, 2023

Thanks for reaching out!

I recommend starting with our 15-177 pivot shoe and the 26-226 pivot bar. Carefully compare the measurements to confirm that these are the correct replacements. If our products differ, please let me know and we can work from there on getting you the right replacements.

Alternate image for 15-177
Alternate image for 15-177

End view of the 26-226 pivot bar
End view of the 26-226 pivot bar
A contractor from Charlotte NC says:
January 30, 2023

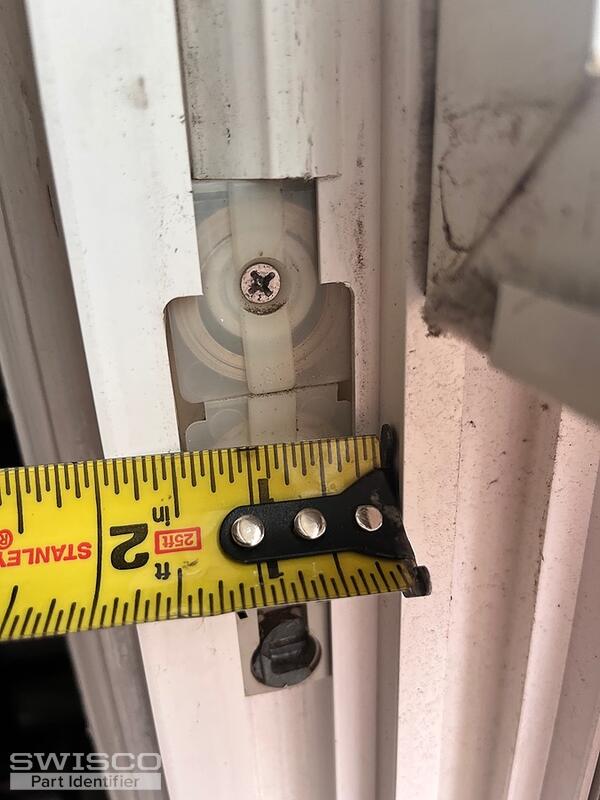

Thank you! What about the coil balances? I also need to replace the ones I sent in the pics. Please advise.
Charlie
Profile picture of Jasmine
Jasmine from SWISCO responded:
February 1, 2023

Great! I am confident that the 15-177 should be the correct shoe replacement. With that being said, they are compatible with the Series 152 Coil Balance spring.

To confirm the spring strength, you'll need to remove the coils from the window channel to confirm what it is stamped with.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
