Window balance

Quick Learner from Florida
I have this old window that I'm looking to repair can you please identify the right balance for me let me know if you need more information about my balance.
1 user uploaded image
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for writing in! There is a chance that we can supply you with a replacement channel balance for you window. However, to determine the correct replacement balances, I'll need to see a photo of an undamaged balance removed from the window. Unfortunately, the stamp from the balance does not indicate the type of balance you need. It only tells us the weight range the balance should be able to carry to support the weight of your sash.

To properly identify them, I'll need to see a photo of any attachments that may be on the top or bottom of the balance.

If this is a tilt window, I'll need to see any attachments that could possibly be left behind in the window or that could possibly be attached to the bottom of the window. If there is a hook at the top of the balance, I'll need to see the space in the window channel where the hook connects.

Please feel free to reach out with any questions.

Quick Learner from Florida

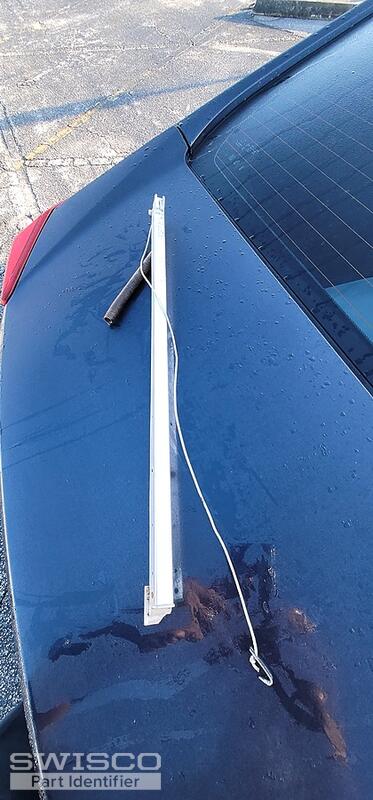

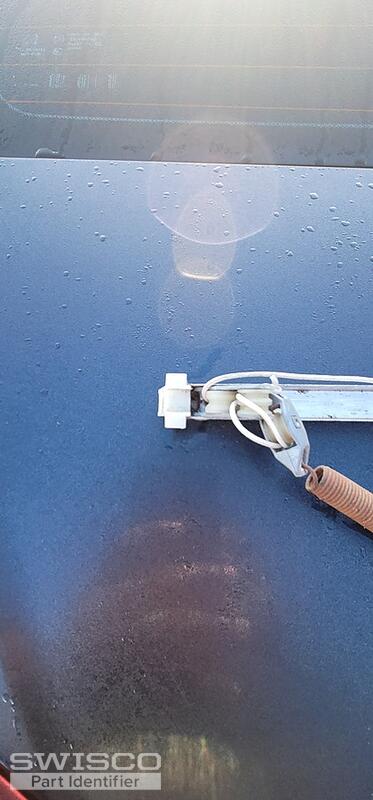

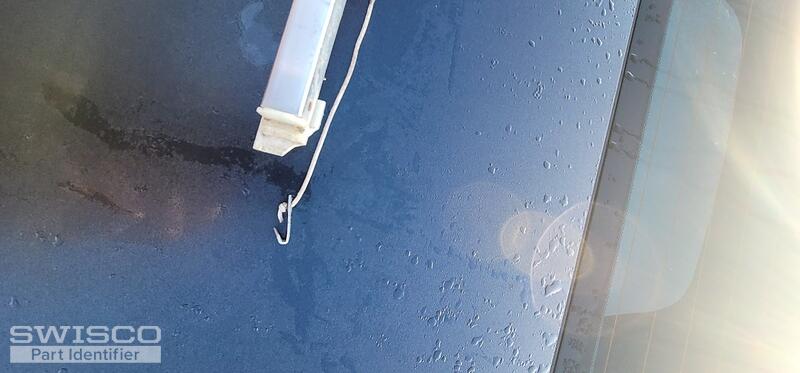

Here are the pictures let me know if you want me to send a video of it
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the photos. Your balance looks a lot like our S377-19 that comes assembled with the 19-018 Pan Am Top and 15-005 bottom shoe with a 1" depth.

You'll need to select the 1810 stamp.
