19" Series 377 Channel Balance

Product Code: S377-19

19" Series 377 Channel Balance
Main product image of the S377-19 19" Series 377 Channel Balance
How to identify a replacement channel balance
How to Replace a Non-Tilt Channel Balance
How to Repair a Jammed Window
$8.55/each
Quantity Price
1-11 $8.55
12-49 $7.70
50-99 $7.27
100-249 $6.84
250+ $6.41
Please Note: Bulk pricing applies only to purchases of the same option
Option:
1810
1820
1830
1840
Product Description
This is a Series 377 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

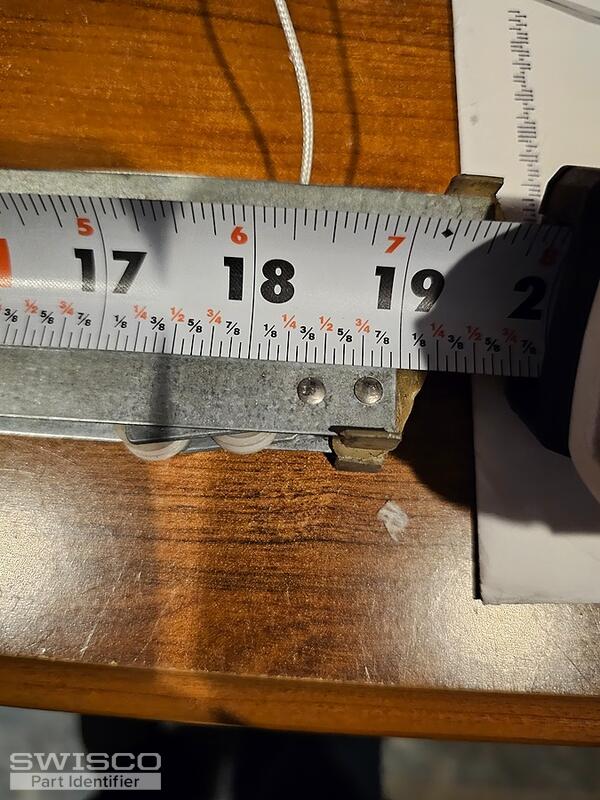

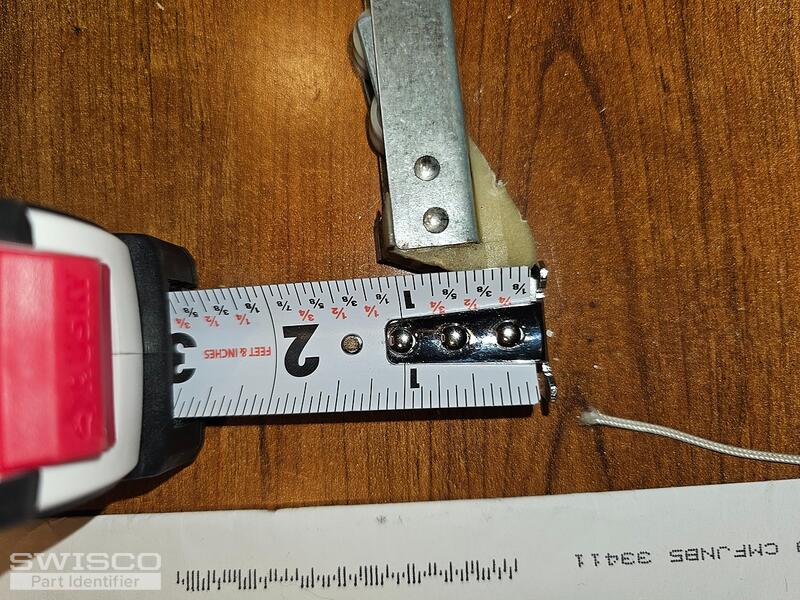

  • This balance has a 19 long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-018 top and 15-005 (1" deep) bottom fittings and will be ready to install out of the box.

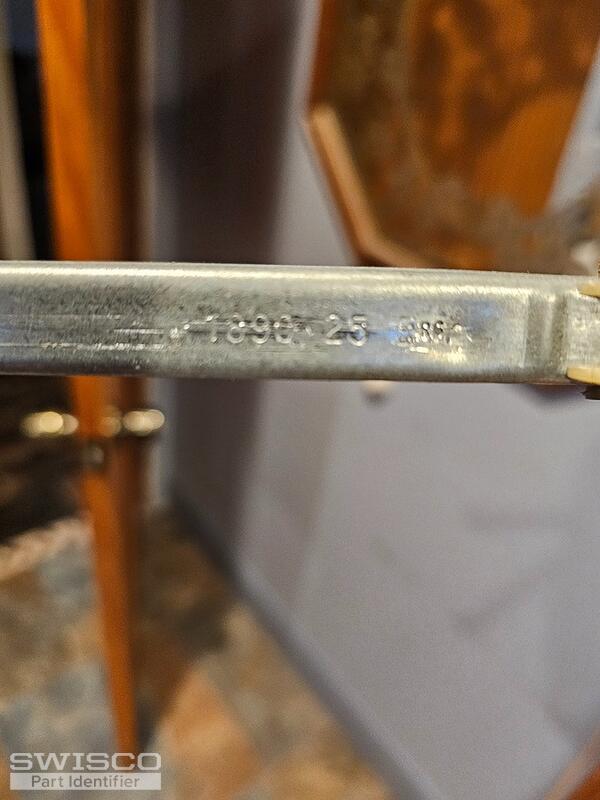

  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.

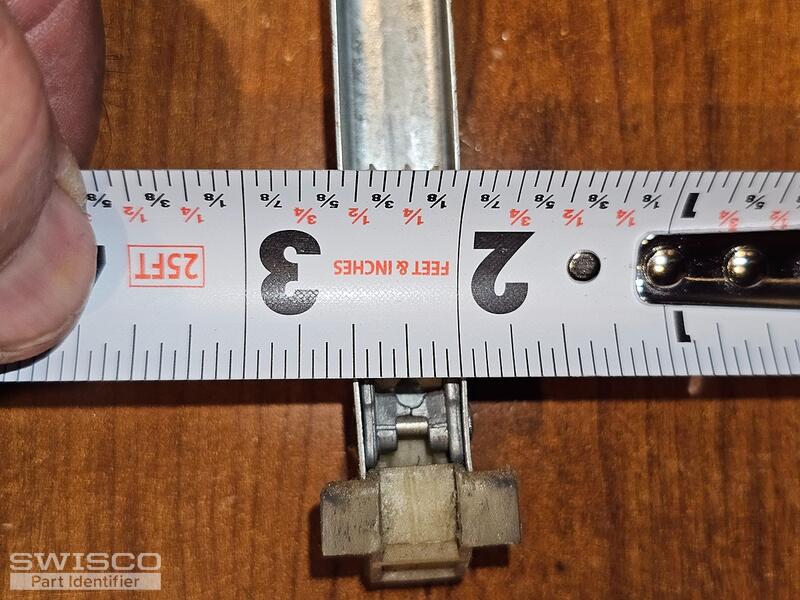

  • The width of the metal channel measures 9/16 but is considered 1/2 in the trade.
  • Can work for either the left or right side of the window interchangeably.
  • Used in windows manufactured by Pan Am
Stamp Option Sash Weight Range
1810 5 to 8 lbs
1820 8 to 12 lbs
1830 12 to 14 lbs
1840 14 to 17 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Guides
Customer Questions & Answers
Discussion # Of Replies Last Post Date
Channel Balance IDThis discussion includes image(s). 2 Mar 16, 2020

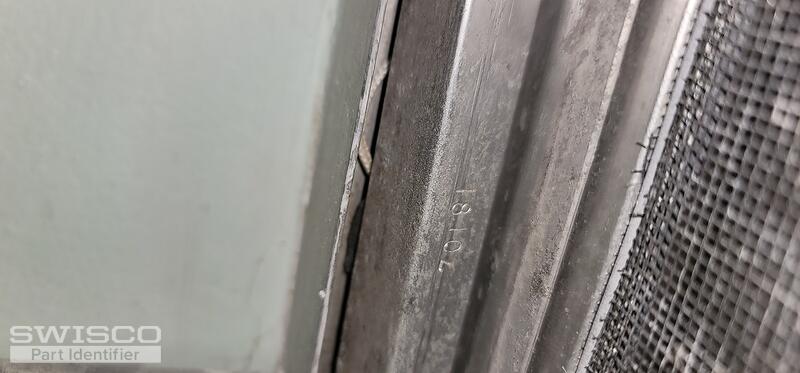

Stamped part number 1840 channel balance This discussion includes image(s). 2 Dec 4, 2019
