Window balance

Quick Learner from St. Cloud, Florida.

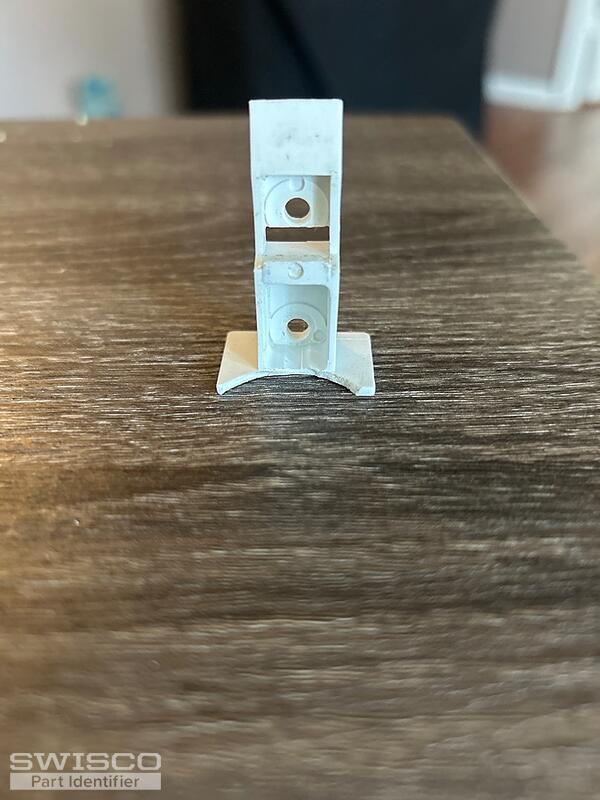

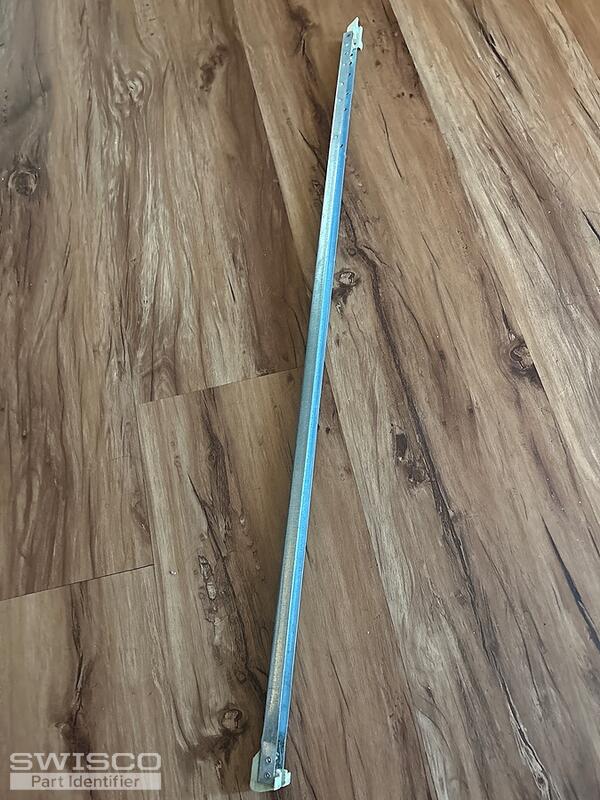

I'm trying to replace this 29 inch window balance and also need the end caps. I would appreciate any help. You could give me So that I can order this. Thank you
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. The balance looks like it might be either an S380-29 or S385-29 Channel Balance. It depends on the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Measure your balance's shoe depth to see what matches best. In either case for a stamp option choose 2820.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

For the Top Sash Guide, see if the 18-180 matches what you have. Let me know if anything differs.

Side view of 18-180
Side view of 18-180
Detail of 18-180
Detail of 18-180
