Window balance 24hdb

Quick Learner from California

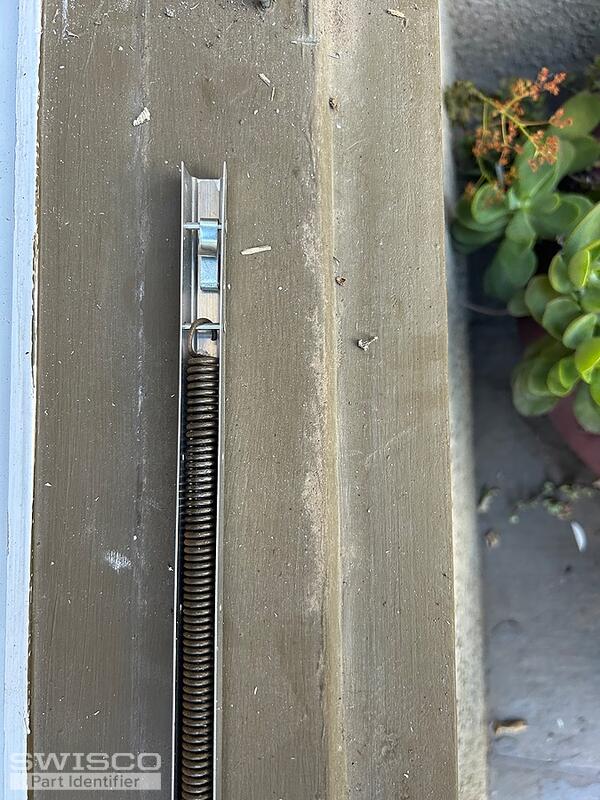

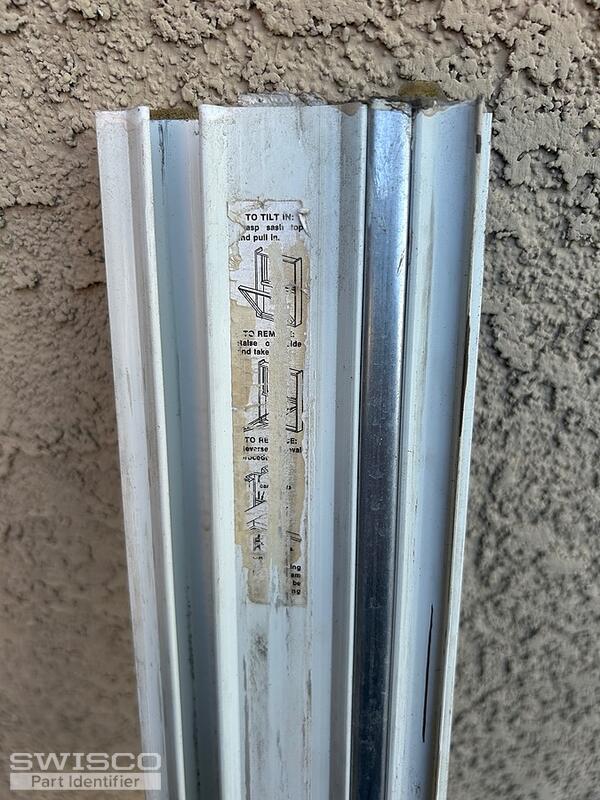

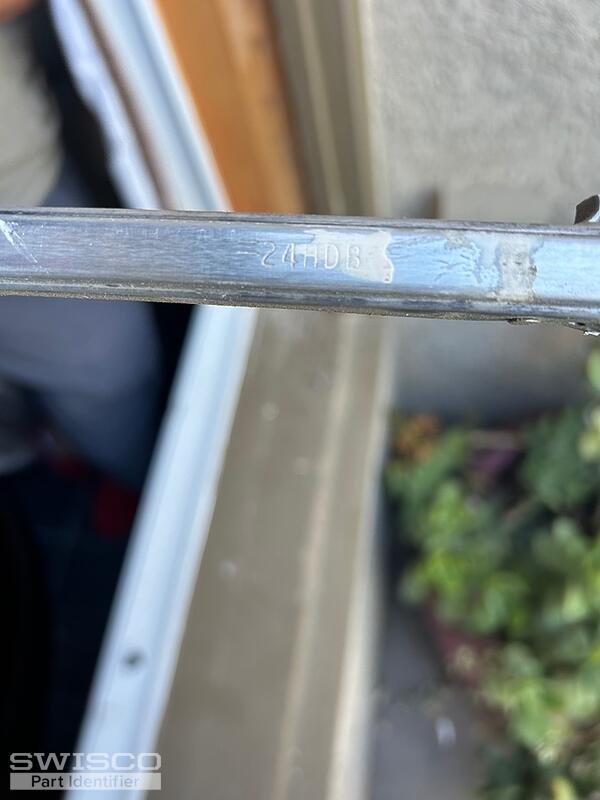

Please help identify pet and where I can buy. Can I also source the Vimeo inserts? 24 inches code on balance is 24hdb

5 user uploaded images
3 Replies
Quick Learner from California

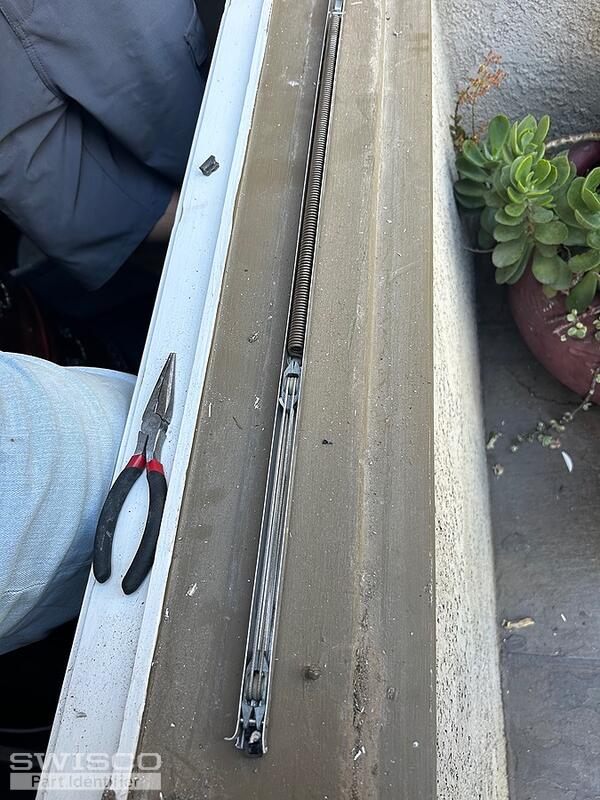

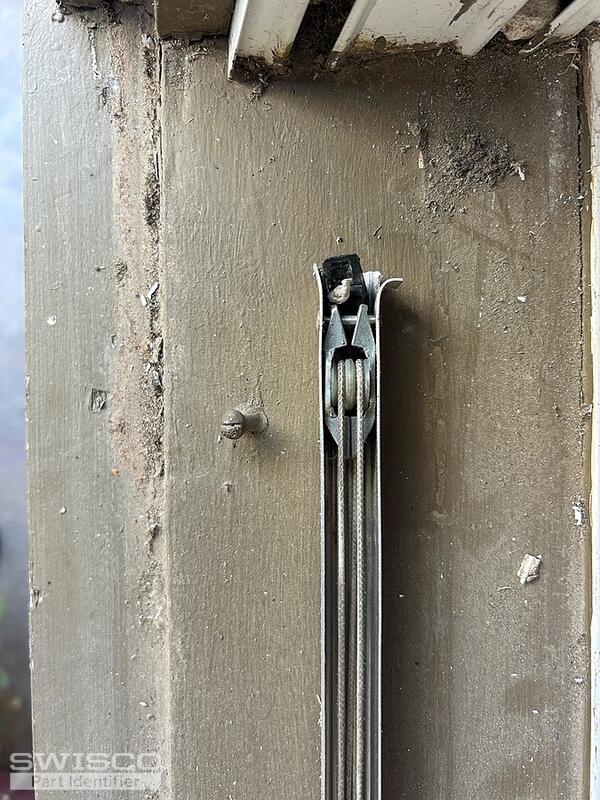

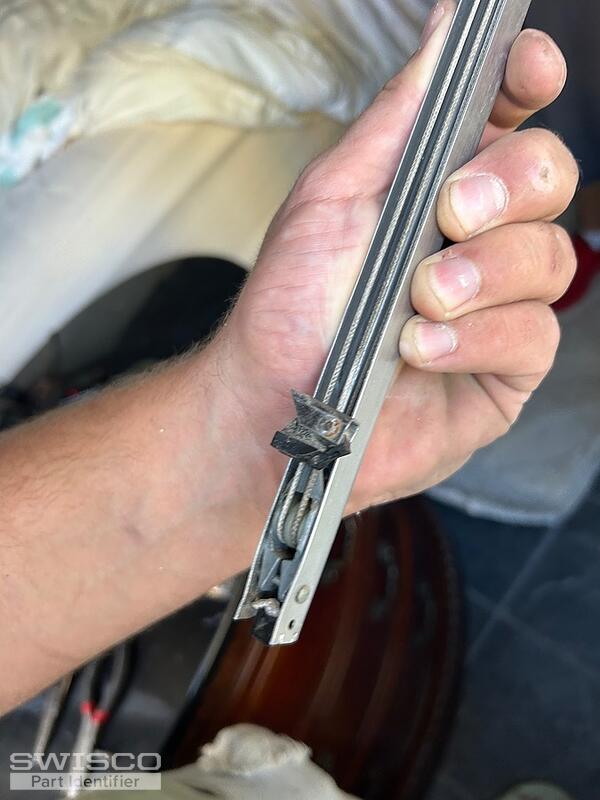

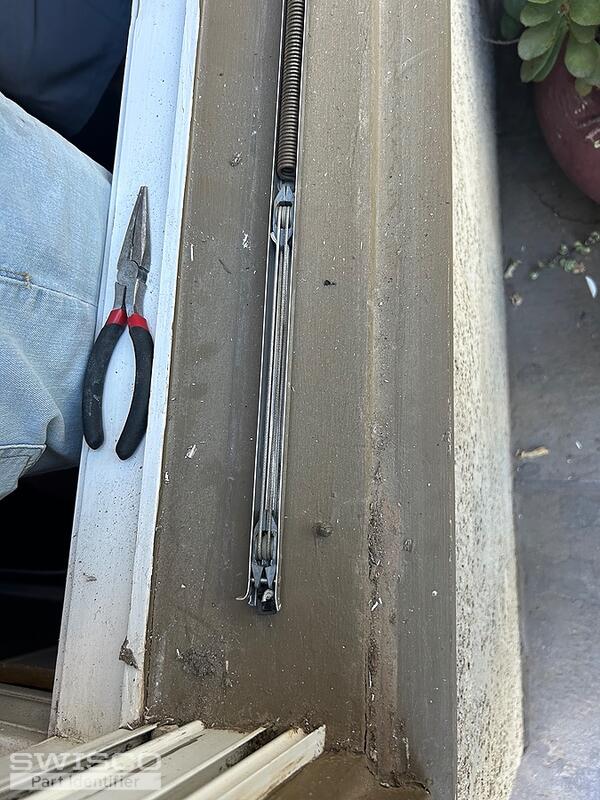

Please help me source bounce part 24 inches
3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

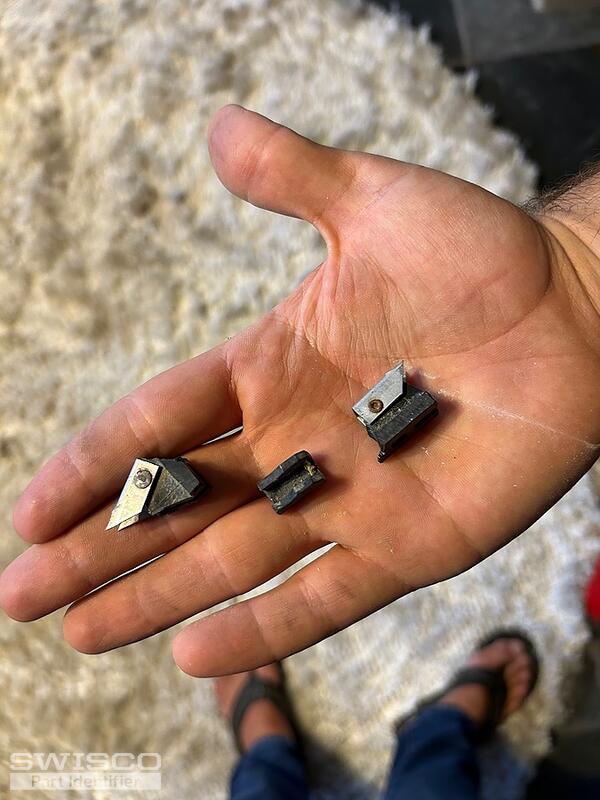

It's tough to be sure based on a damaged part but your photos resemble the S751 channel balance. To confirm, take a look and compare the specifications of the 15-014 knife lock shoe that comes with these balances to an intact part from one of your windows.

Dimensions for 15-014
Dimensions for 15-014

I would also recommend double-checking the length of the metal channel since the S751-25 offers 24HD strength options to match your stamp code. If your length measures exactly 24" long, you'll need to weigh your sash to determine which option you'll need. There is a chart on the product page of the S751-24 that explains how to choose your option based on the sash weight. We've also related the S-clips that we carry on this page if you need those as well. Thank you.

How to measure the length of the Series 751 channel balance.
How to measure the length of the Series 751 channel balance.
