Window balance

Start a new Discussion

Quick Learner from AR

Oct 15, 2022 2:57 pm

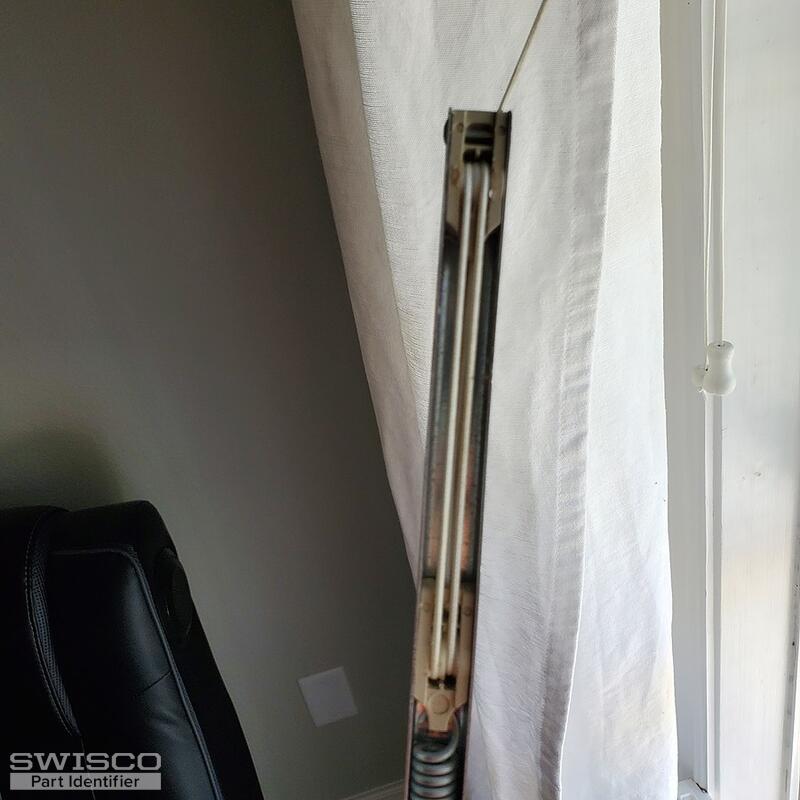

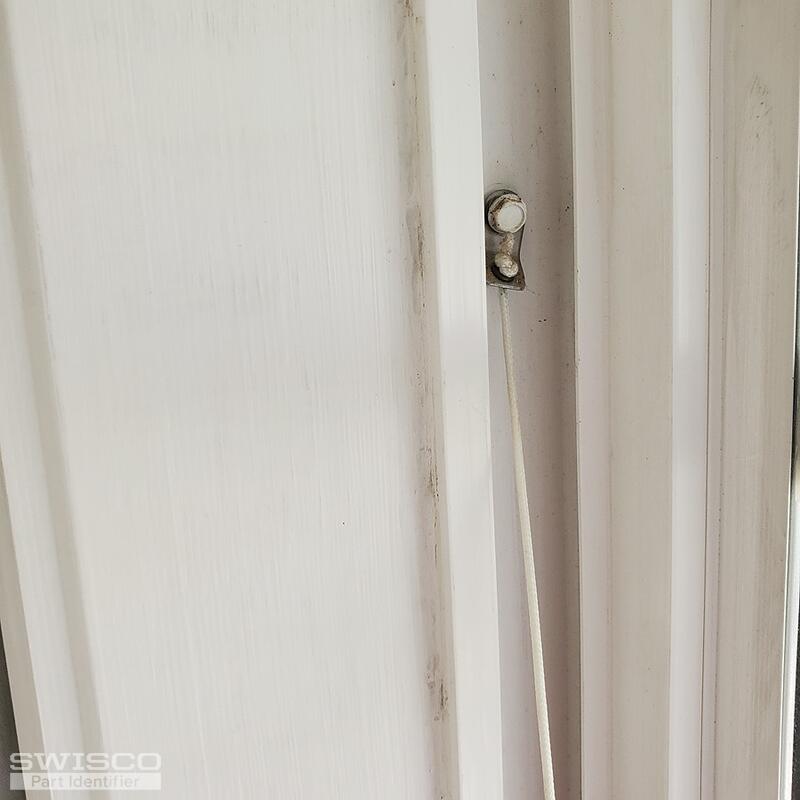

Metal is 28" long. No clips in vinyl windows frame, just string attached with screw. Single hung, tilt

5 user uploaded images

4 Replies

Tom from SWISCO

Oct 20, 2022 2:23 pm

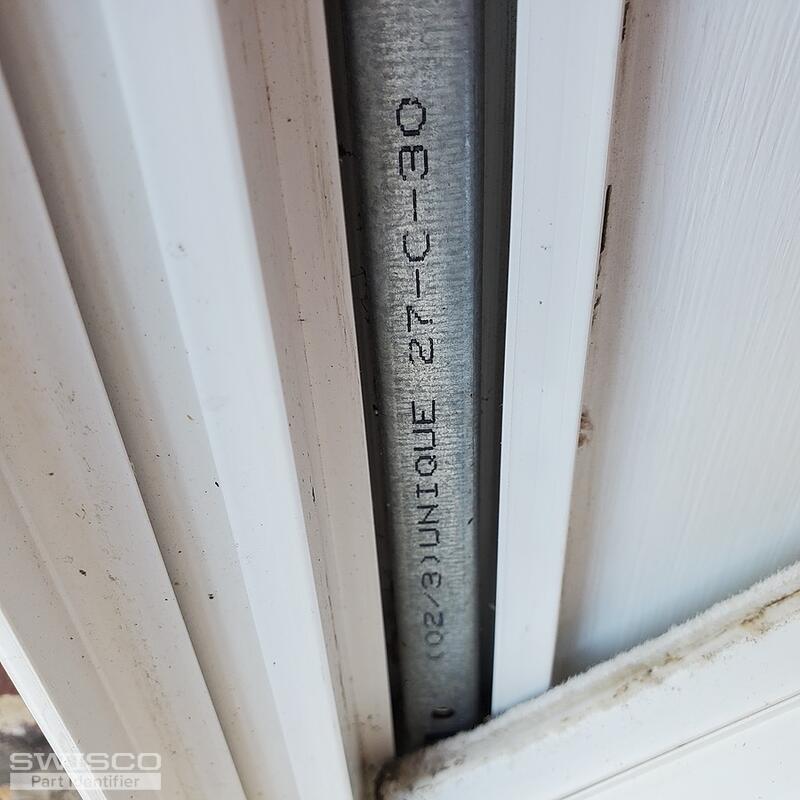

Hello! Your balance appears to be an older version of our Series 795. While the design is a little different I still think this will work perfectly well in your window. Look it over and see what you think.

Quick Learner from AR

Oct 21, 2022 7:44 am

Awesome, thanks much! How can I tell which weight option to use?

1 user uploaded image

Tom from SWISCO

Oct 21, 2022 11:09 am

There's a very good chance your weight option will be our 28C, but I always like to weigh the sash just to be 100% sure. Most of the time they line up, but when it comes to these older style balances I wouldn't trust it. I've been burned before.

As long as your sash falls in the 18 through 23 pound range supported by the 28C stamp then it will work perfectly fine for you.
