Window balance

Handy Person from Baltimore, MD

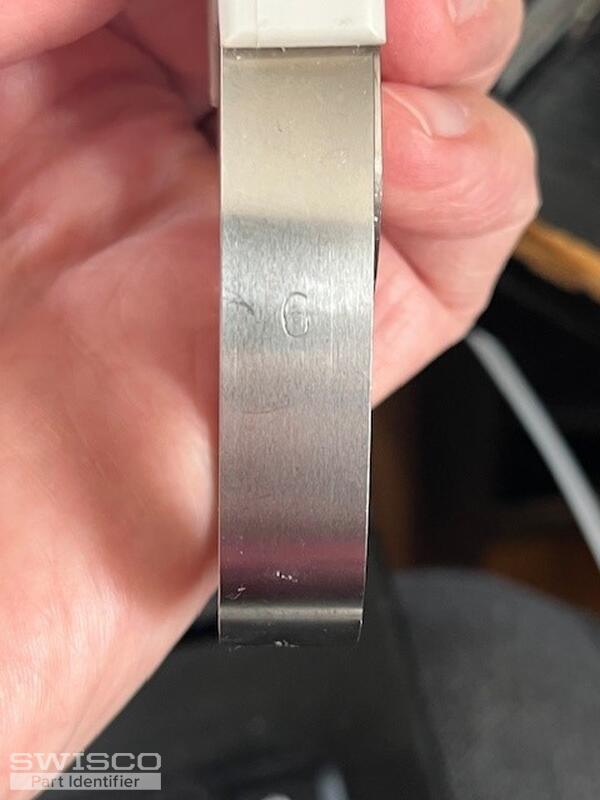

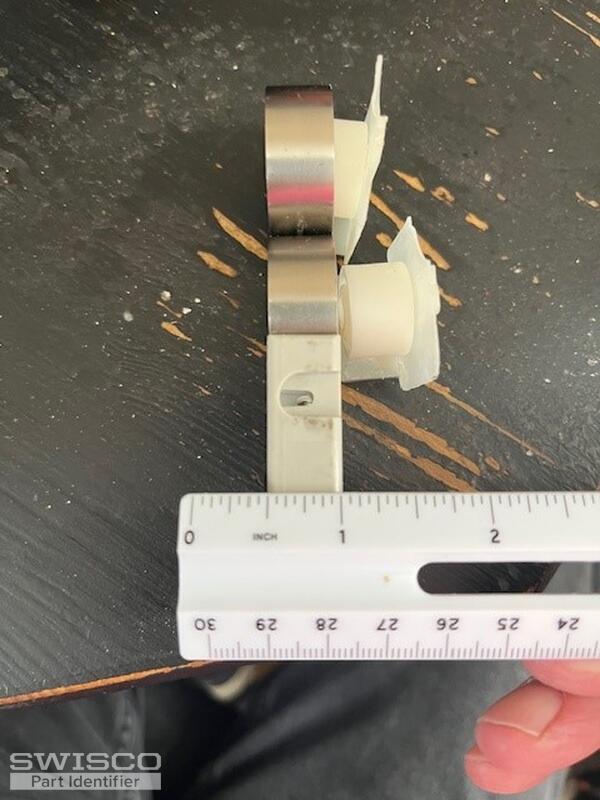

Hi - This coil window balance is from my Alside vinyl windows with tilt sashes that are approximately 25 years old. As you can see in the photos, the pivot shoe is broken. There is a 6, or perhaps a 9, stamped on the coil. Any help in telling me the part I need is appreciated.
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

Thanks for posting! Your pivot shoe can be replaced with the 15-177 Coil Balance Shoe. It is used with the 1/2" thick Series 152 Coil Balance, secured to the shoe using the 33-072 screw. I'm afraid I would not be able to confirm whether the stamp on the coil is a 6 or a 9.

That said, you'll need to obtain the exact sash weight to determine the coils needed for your repairs. Take a look at our video tutorial below for a detailed explanation.

Be sure to take a look at the other accessories tagged below as well.
