Home Owner from ARIZONA

Mar 25, 2025 4:46 pm

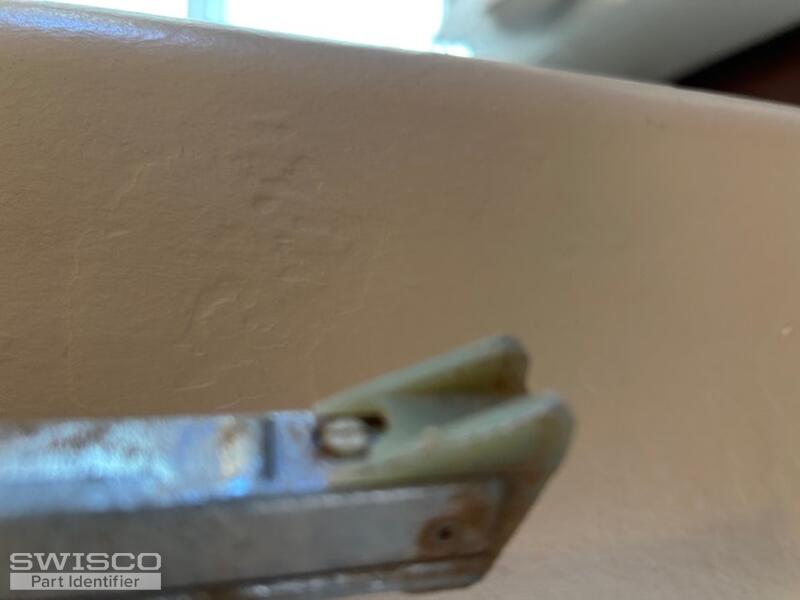

Hi Swisco! what model balancer is this? I measured frame length at just under 28 inches long.
Thanks!

4 user uploaded images

4 Replies

Casey from SWISCO

Mar 26, 2025 3:50 pm

Hello,

We'd be happy to look into this for you but we'll need a bit more information to narrow down your options. If you could show us the connecting point between the spring and pulley inside the metal channel, that would help us confirm if our stock balances could work for your repair or if they would need to be special ordered. Thank you!

Home Owner from ARIZONA

Mar 28, 2025 11:22 am

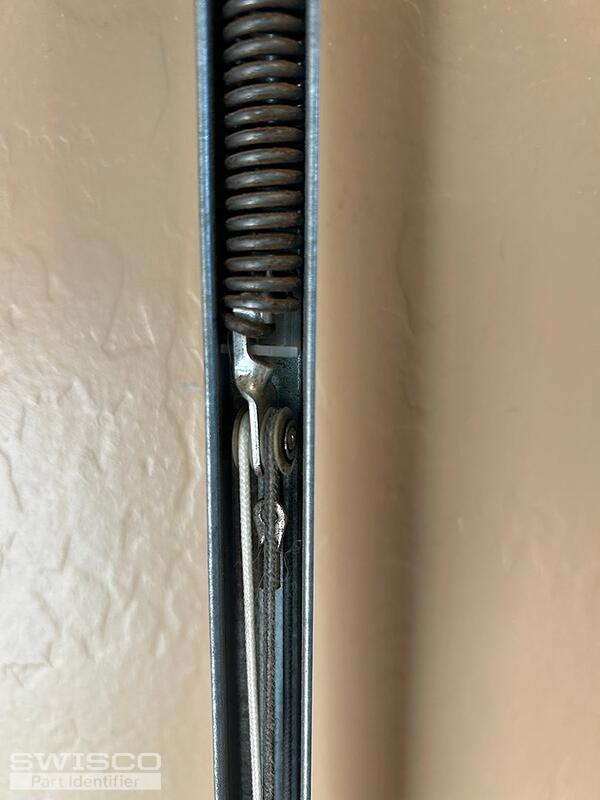

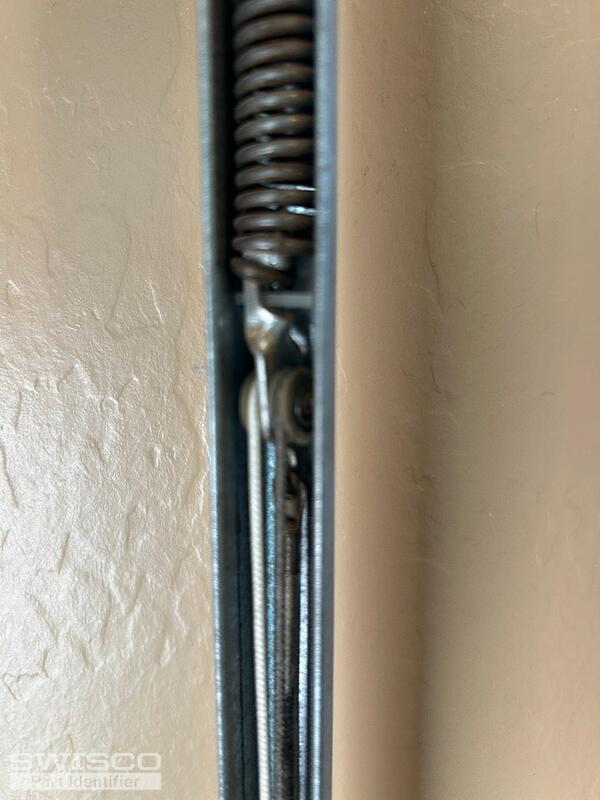

Hi Casey! See the attached connections between the spring and pulley.
Thanks for your help.
-Jerry

2 user uploaded images

Casey from SWISCO

Mar 28, 2025 1:21 pm

Thanks for getting back to us. Your balance resembles the stock S395 channel balances but I'd recommend double-checking the length. These types of balances stamped with 28 3 would normally measure 29" long, not including the end fittings. If so, you would need the S395-29 with 2830 strength options.

Close up view of the S395 balance top.

Close up view of the S395 balance shoe.
