Window balance

Quick Learner from Oregon

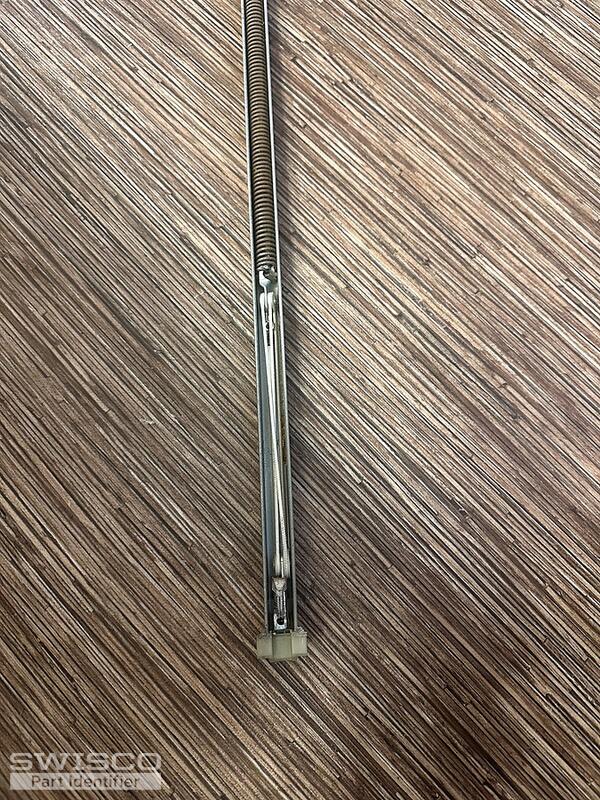

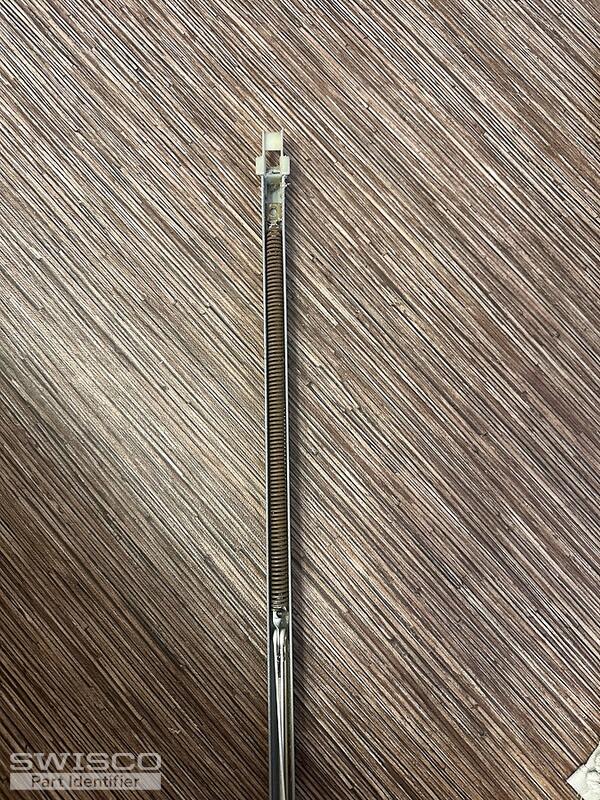

Measures 20 inches long. Imprinted 19.3 Caldwell LM

thank you!
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

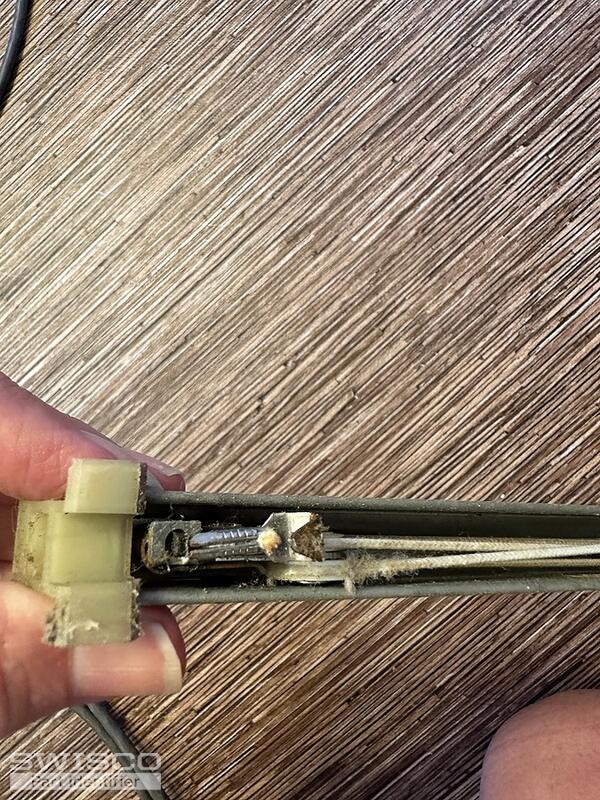

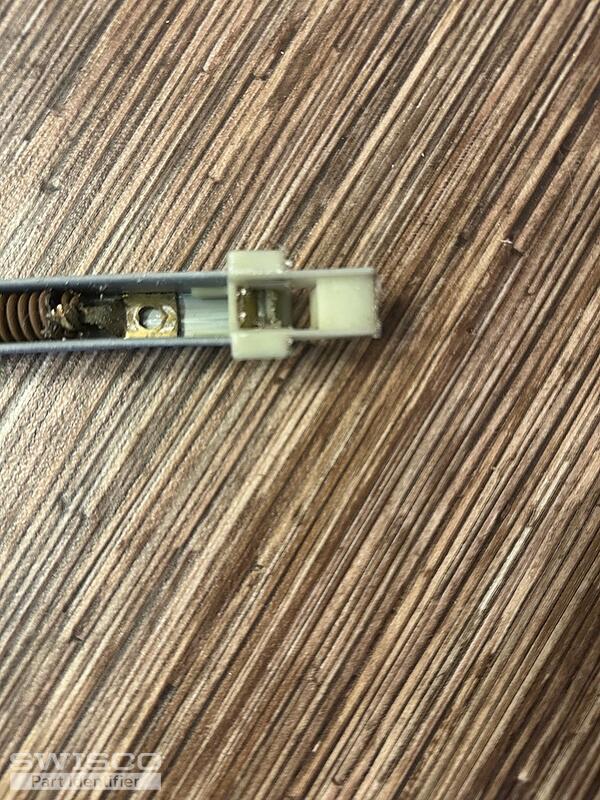

Hello there. I am confident we can replace this balance, but first I need to see the 'guts' or underbelly of the metal channel. Some balances from the west coast have a special design we must account for. We should be able to move this along from there.

Quick Learner from Oregon
Thank you!
2 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Perfect, thanks. It seems to me that you have either the S380-20 or S385-20 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, as shown below. Measure your old balance's shoe to see what matches best. For a stamp option choose 1930.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
