Window balance

Quick Learner

Apr 18, 2026 2:20 am

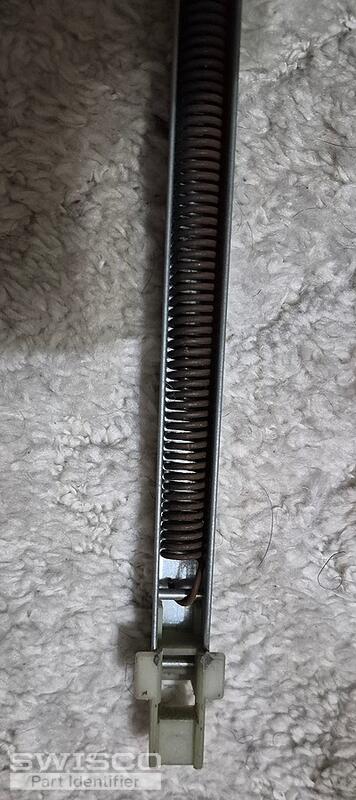

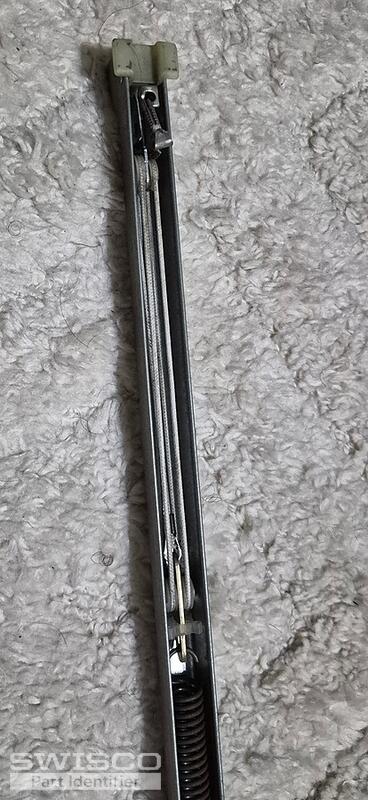

Unsure what model Window balance this is. from top to bottom is around 22.5 in and 0.5 inches wide. I need to replace my current one.

5 user uploaded images

4 Replies

Bob from SWISCO

Apr 18, 2026 10:42 pm

Hey there. I am confident we can replace this channel balance, but we need a little more information. Can you tell us the length of the metal channel, not including the nylon attachments at both ends? Can you show us any stamp on the metal channel? We should be able to narrow it down from there.

Quick Learner

Apr 19, 2026 1:41 am

The metal channel is 21in.
I do not see any stamp on the outside or inside of the metal channel.

Bob from SWISCO

Apr 19, 2026 11:33 am

Thanks for getting back to me. Looks like you have either an S380-21 or S385-21 Channel Balance, depending on the bottom shoe depth. See below.

Comparison of the S378, S380 and S385 balance shoes.

You also have to choose a stamp option. This reflects the strength of the balance. If there's no stamp on the balance, weigh the window sash these balances support. You can use that exact weight to choose the right stamp option.
