Window balance

A home owner from Buffalo says:
August 15, 2017
Did not know if I bought the right parts<

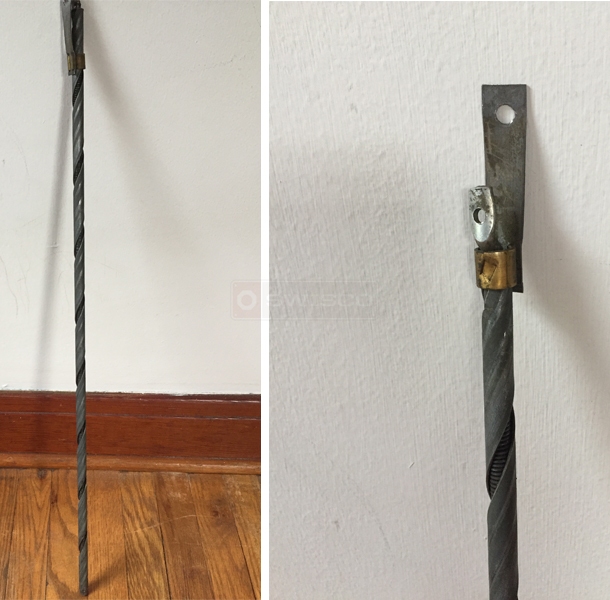

Window balance
Profile picture of Paul
Paul from SWISCO responded:
August 21, 2017
I'm not sure about this one. I see you purchased our Series 300 but I don't think that's it. Yours is very old. Before we recommend anything, can you tell me the diameter of the outer tube that goes over the spring? Can you also show me a picture of the sash and the track where this balance installs?
A home owner from Buffalo says:
August 22, 2017

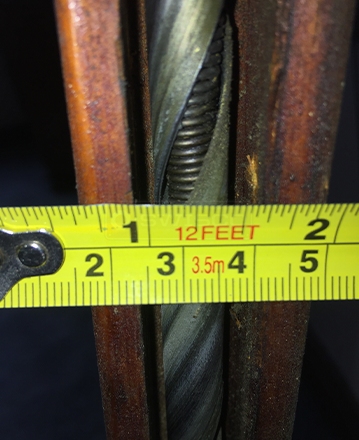

it looks like 3/8 outside diameter
Spiral Balance
Profile picture of Paul
Paul from SWISCO responded:
August 28, 2017
Thank you! I believe our Series 400 would be better for you. I would also recommend our 17-031 bottom bracket. You can use a 33-078 screw to install the the tube at the top of the window and the 33-073 to attach the 17-031 bracket to the sash. I also think our 75-004 charging tool will be helpful for installation.
17-031 : Bracket, #14
Bracket, #14
17-031
$1.14
VIEW >
75-004 : Wire Charging Tool for Non-tilt Windows
Wire Charging Tool for Non-tilt Windows
75-004
$2.55
VIEW >
S400-26 : 26
26" Series 400 Spiral Balance
S400-26
$10.45
VIEW >
33-073 : #8 x 1/2
#8 x 1/2" Trus Head Stainless Steel Phillips Screw
33-073
$0.28
VIEW >
33-078 : #7 x 7/8
#7 x 7/8" Flat Head Philips Screw
33-078
$0.17
VIEW >
