Window balance hardware

A professional from North Carolina says:
August 17, 2017

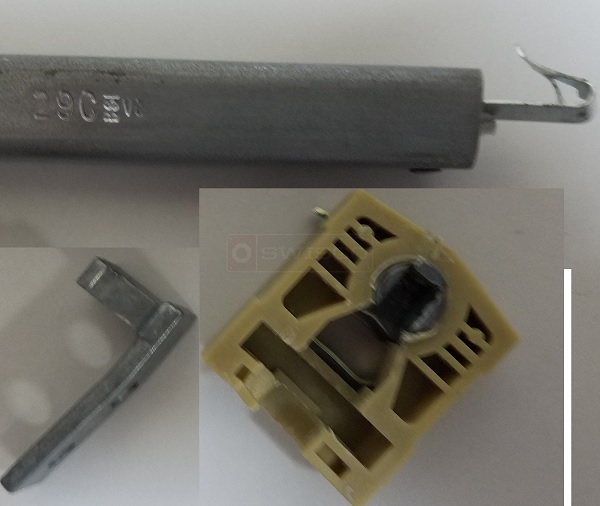

We are in need of a pivot shoe, pivot bar and inverted link (not in picture because we don't have!)for a tilt balance. The balance has 29C stamped on it but we do not need the balance.
window balance
Profile picture of Tom
Tom from SWISCO responded:
August 23, 2017
Thanks for posting. For the pivot shoe and pivot bar, see our 25-216 and 26-402, respectively. I think you'll find they match. As for the balance, it will need to be custom made. I'm thinking our S795-29 with a 29C stamp option, but with the bottom shoe swapped out for the 15-224 link and the top clip swapped out for the 15-198 hook. Does that look good to you? If so, let me know how many you need and I will email you a custom balance order link.
T-Lock Pivot Shoe
T-Lock Pivot Shoe
15-216
$2.55
Inverted Link
Inverted Link
15-224
$0.95
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
Side Mount Pivot Bar
Side Mount Pivot Bar
26-402
$1.38
29" Series 795 Channel Balance
29" Series 795 Channel Balance
S795-29
$13.77
