Window balance stamped 32 9 BSI OR

Quick Learner from California
I need to replace 3 window balances, all stamped 32 9 BSI OR. This product looks like the closest match https://www.swisco.com/32-inch/pd/Series-385-Channel-Balances/S385-32, but it's metal length doesn't seem long enough.

The measurement of the metal length only, for the window balance that I have, is 32 3/4", not 32".

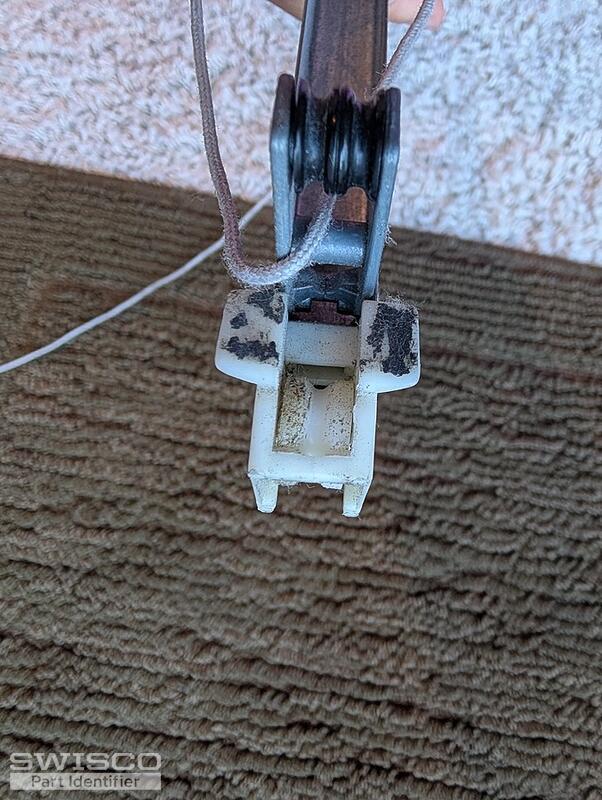

4 user uploaded images
9 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We can supply your replacement balances but it will need to be a custom order due to the length, extended travel pulley system and unique combination of end attachments. Note that the length of your metal channel should measure 32-5/8", not including the end fittings. To determine the correct replacement, we'll need to see the metal pulley clip attached to an undamaged balance. Also, please confirm that you need six balances total, two for each window. Thank you!

Quick Learner from California
Thank you, Casey. I'll remeasure to see if it's 32 5/8". How much would each balance be if custom ordered?
Quick Learner from California

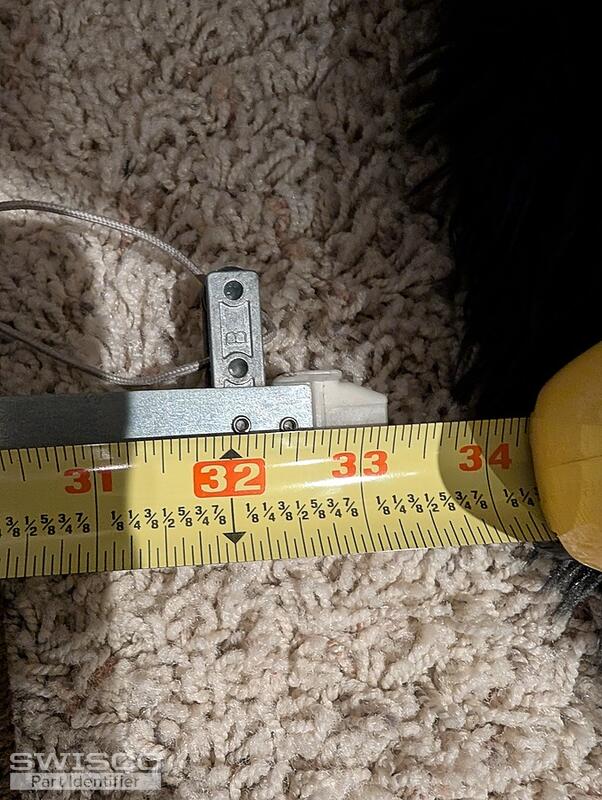

It is exactly 32 5/8".
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us but we will still need to see the pulley clip from an undamaged balance and confirm the quantity before we can provide a price quote.

Quick Learner from California

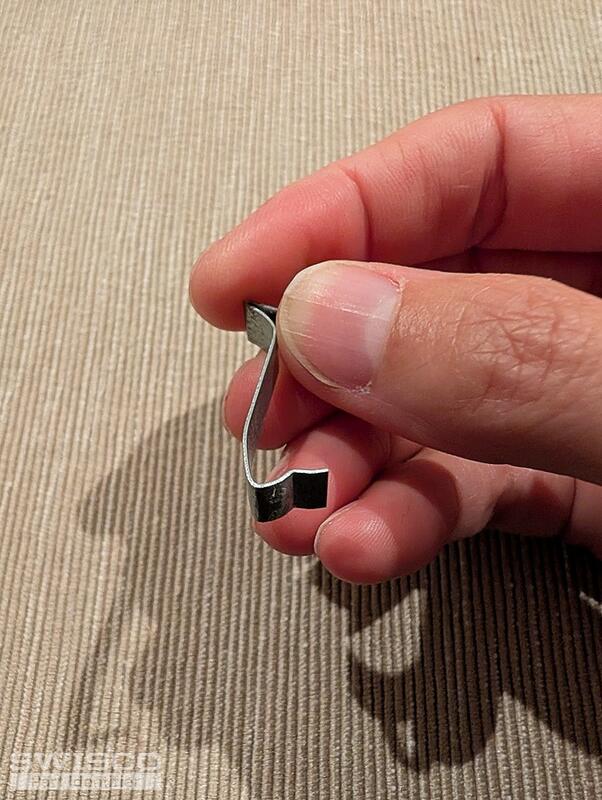

Is this what you mean?
3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

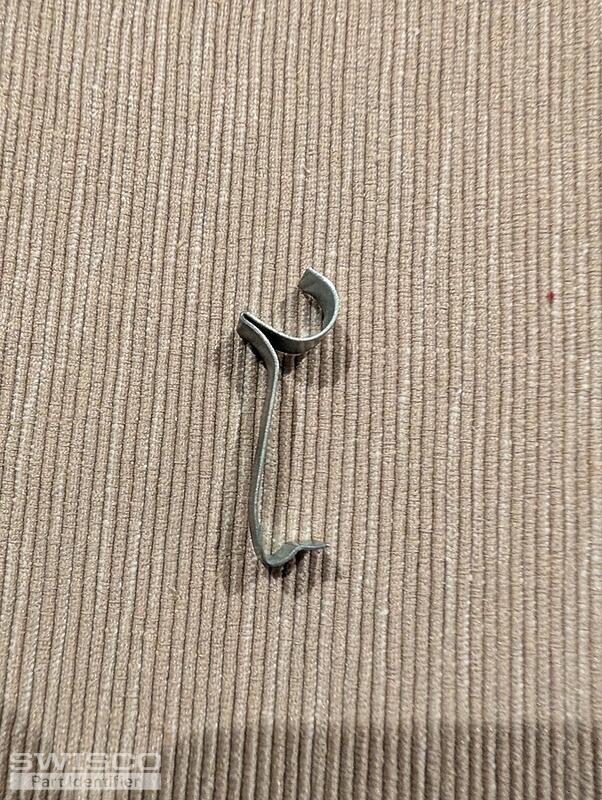

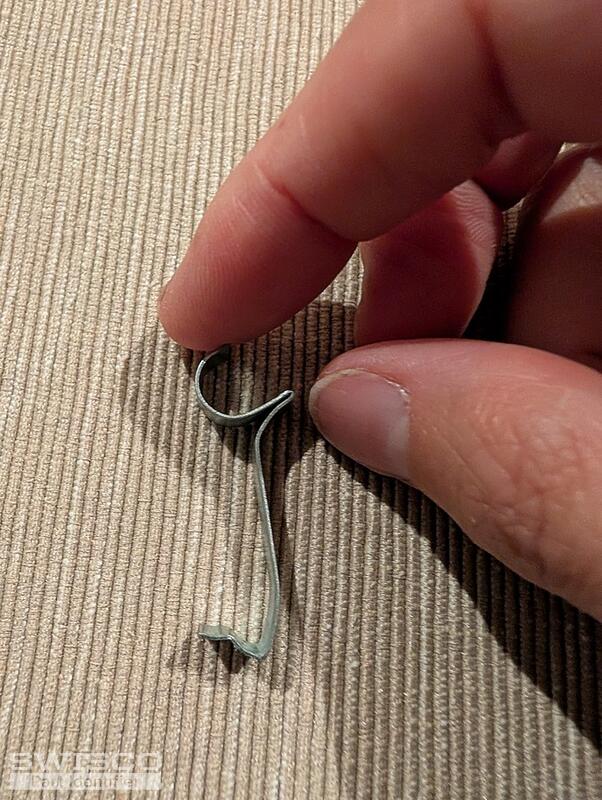

Your new photos show the take out clip used to catch the balance at the top of the window jamb, which would be the 16-002

Alternate image for 16-002
Alternate image for 16-002

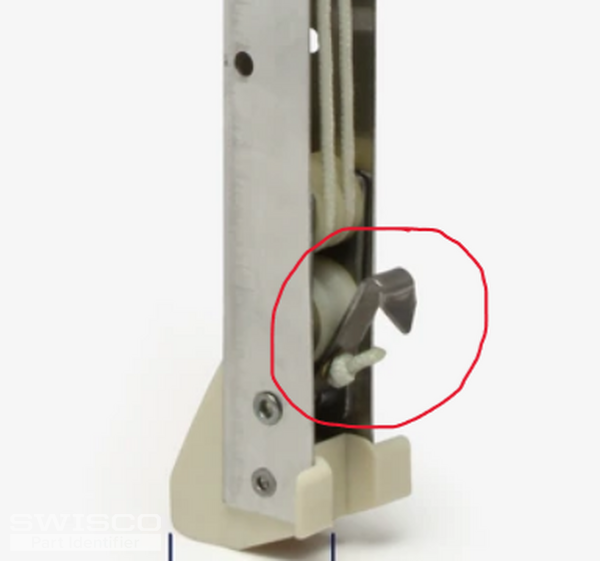

To identify your balances, we'll also need to see the metal clip attached to the pulley. See an example below.

Pulley clip
Quick Learner from California

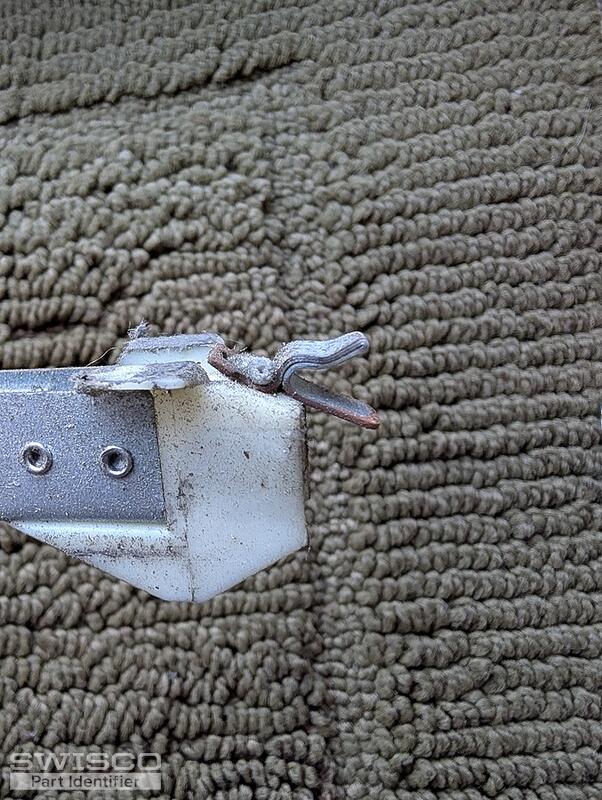

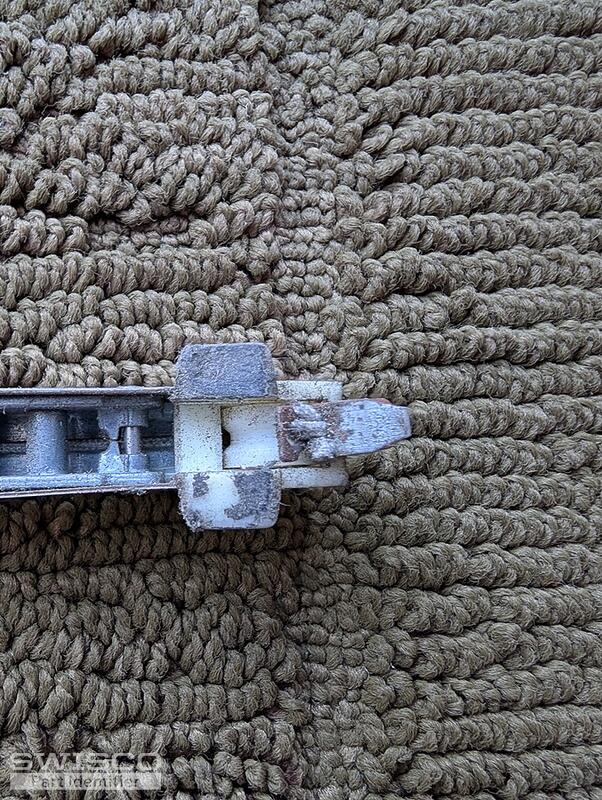

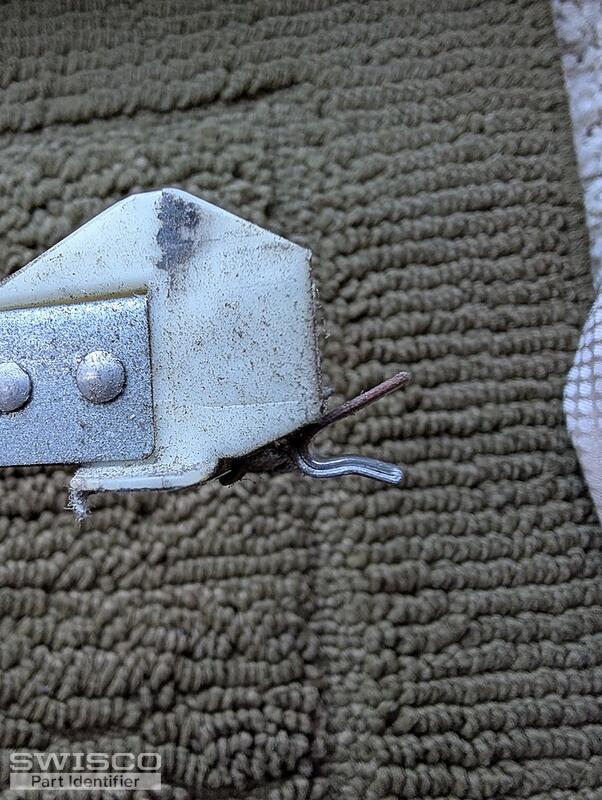

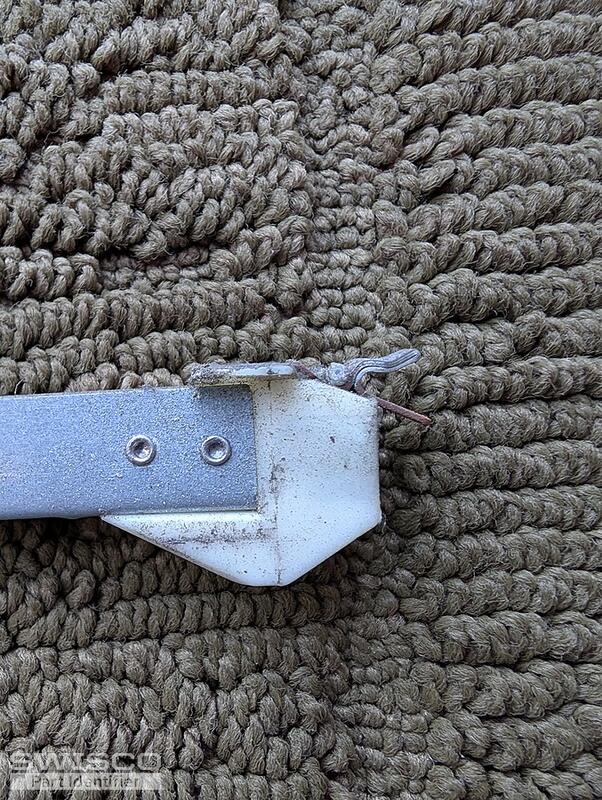

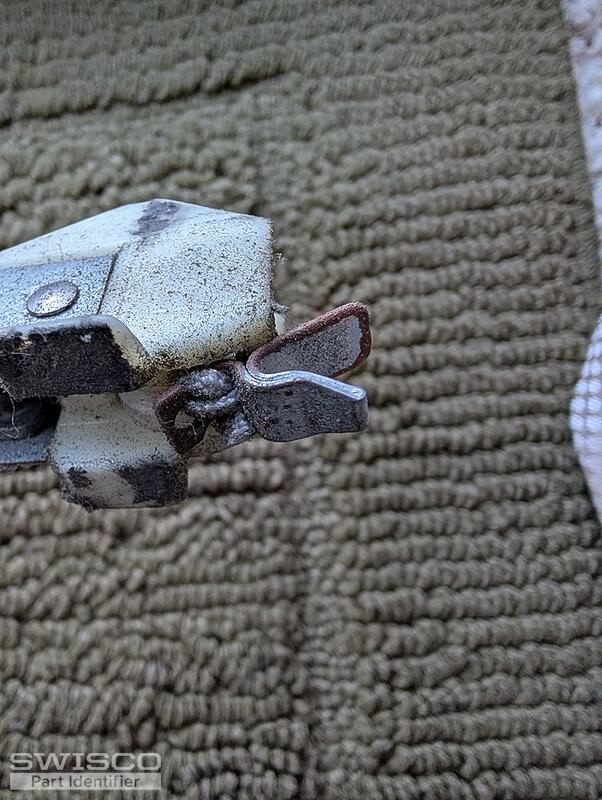

This is the hook on the pulley end. I will need 6 balances.
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Great! We just sent over an order link and price quote for you to review. Keep in mind it only includes the balances, not the 16-002 take out clips. Take a look and let us know if you need anything else.
