Window balance question

Start a new Discussion

Handy Person from u

Oct 8, 2014 9:35 am

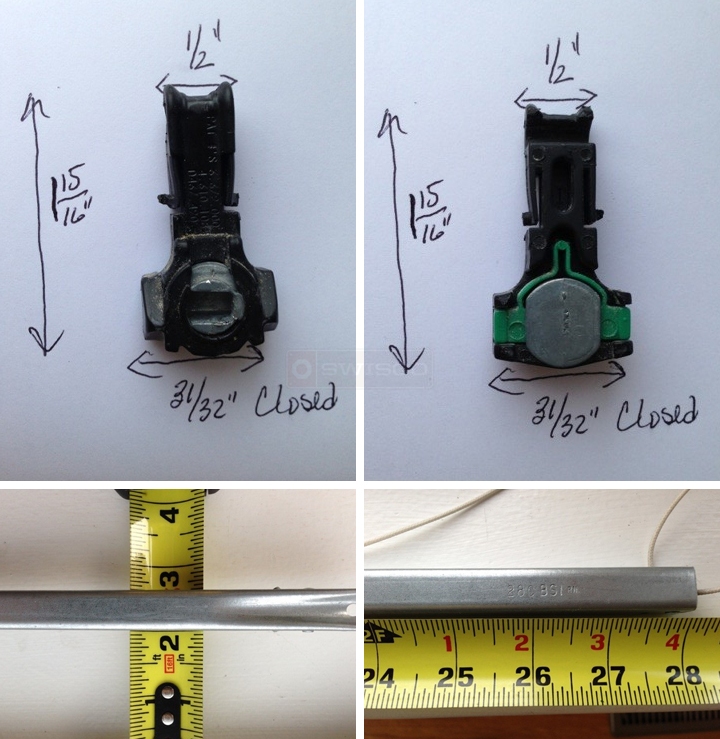

User submitted photos of a window balance.

4 Replies

Tom from SWISCO

Oct 9, 2014 11:41 am

I'm not sure what your question is. Are you looking for a new balance? If so, it looks like you have our Series 795 channel balance with the smaller 15-194 lock. The Series 795 comes with the larger 15-195, but that can just pop off to allow you to install the 15-194. Check it out and see if you agree.

Quick Learner from New Hampshire

Oct 10, 2014 6:48 am

Ok--so the question is my original balance has a concave groove of sorts near the shoe which allows you to tip the sash from side to side during removal and installation. The pins in the window that fit into the pivot shoe slot do not retract---so am I going to be able to get my window back in with the channel you have?

Paul from SWISCO

Oct 10, 2014 10:31 am

The manufacturer of the this window balance no longer makes them with the concave impression on the channel. They found it wasn't necessary, and that having a straight channel didn't interfere with the installation.
