Window balance replacement

A quick learner from Altamonte Springs Florida says:

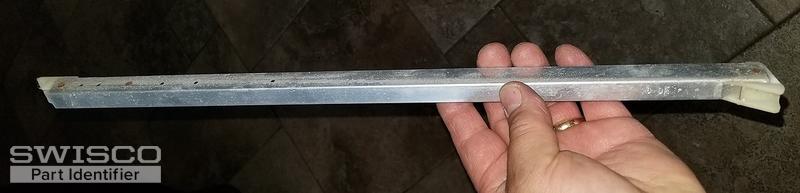

Need to replace window balance making sure I buy the correct one the length is 17 inches and its 1/2 inch wide

Thanks
Steve
Thumbnail of the uploaded file named 20190311_093827.jpg
Thumbnail of the uploaded file named 20190311_093819.jpg
Thumbnail of the uploaded file named 20190311_093815.jpg
Thumbnail of the uploaded file named 20190311_093759.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. See either our S351-17 or S390-17 Channel Balances. The only difference between these two balance Series is the 'depth' of the bottom nylon shoe. The Series 351 bottom nylon shoe has a depth of 1", whereas the Series 390 bottom nylon shoe has a depth of 1-1/8". Compare with your old balances and see what you think matches best.

Once you know what balance to select, you must choose a stamp option. Your stamp of 16D conforms to our stamp option of 1640, for a window sash in the weight range of 14 through 19 lbs.
