Window balance spring

Question

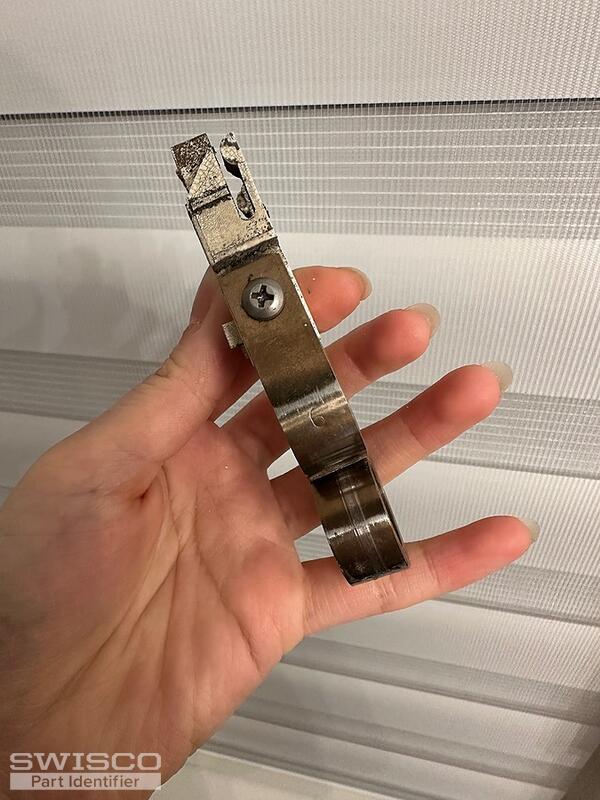

There is a marking that either says 6 or 9 on it, but not entirely sure. I purchased the 9 lb series 140 quick-tilt, but upon installation I found that it made the window very difficult to close.

Bob · Accepted Answer

Thanks for posting. Sorry to hear the Series 140 did not work for you. See our Return Policy here. This looks more like the 15-180 Pivot Shoe, which uses Series 190 Coil Balance springs sold separately. For the replacement springs you have to choose a spring weight, which is typically denoted by a stamp on the old spring. Unfortunately it is indeed impossible to tell if your stamp denotes a 6 or a 9! Weigh the window sash these balances support. Give me that exact weight and I can work out what you need.
