Window balance system & pivot bars

A quick learner from Michigan says:
February 13, 2023

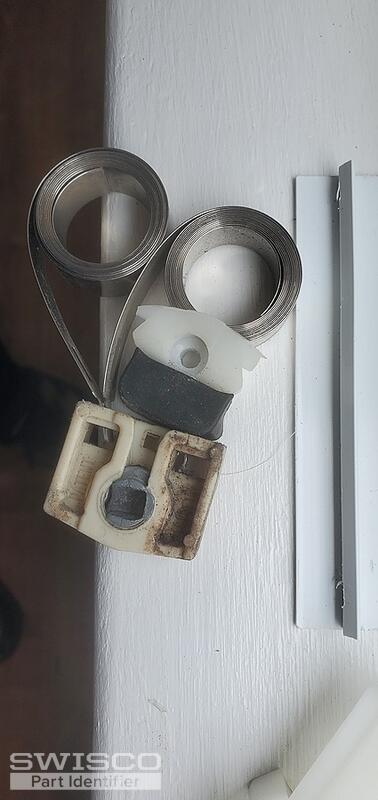

Dbl. Coil springs holder plastic cover is cracked off, # 4 is visible on both coils
Need to order 2 right sides & 2 left sides
(8 #4 coils) 4 dbl.spring plastic holders, 4 brake shoes, 4 bumpers. I have 2 windows panels to replace hardware.

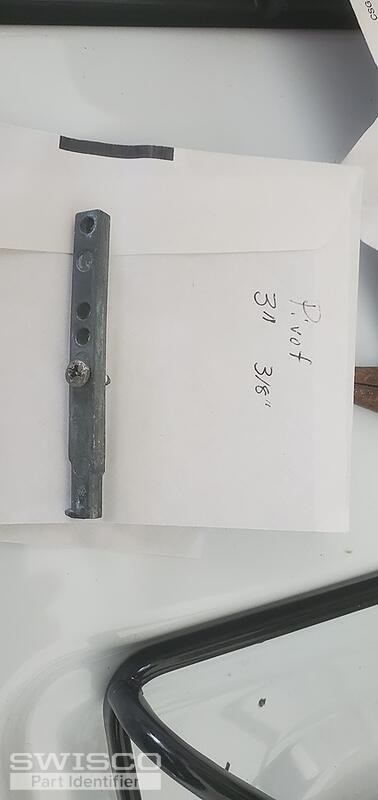

& 3" pivot bars 20 pcs. I believe the window brand is Northstar
Thumbnail of the uploaded file named 20230202_161410.jpg
Thumbnail of the uploaded file named 20230202_153420.jpg
Profile picture of Emily
Emily from SWISCO responded:
February 14, 2023

Thank you for reaching out to us! You have our 15-111 pivot shoe which is designed to work with the 1/2" Series 160 coil springs. We also sell the 15-150D double support and 26-241 pivot bar. Look over the specifications for these parts and see how they match up.

Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
Bumper
Bumper
15-148
$0.58
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
Pivot Bar, 3"
Pivot Bar, 3"
26-241
$1.38
