Window balance and shoes : SWISCO.com

Contractor from Omaha, NE

Dec 30, 2025 3:00 pm

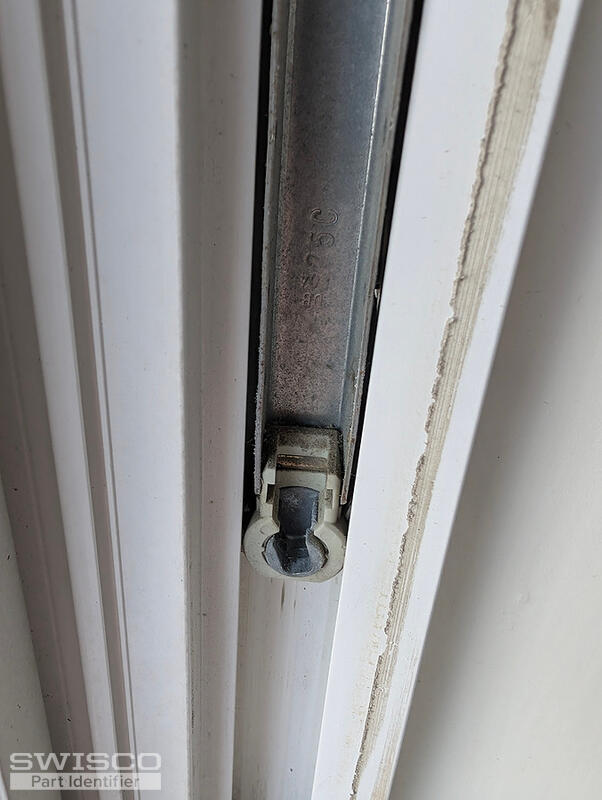

Looking for a replacement balance, shoes and sash pins. Balances are 25" long

4 user uploaded images

4 Replies

Paul from SWISCO

Jan 6, 2026 8:48 am

Hello,

We can't be sure of what you need with the hardware still installed but the S795-25 (25C) would be a good place to start. We suggest removing your balance to confirm the specifications match. Note that our stock balances come with a screw tab at the end of the pulley and the 1-1/4" wide 15-195 closed cam t-lock shoe.

How to measure the length of the Series 795 channel balance.

Dimensions for 15-195

Your pivot bar resembles 26-241. Review the measurements below to be sure. Thanks for posting!

Alternate image for 26-241

Contractor from Omaha, NE

Jan 8, 2026 9:38 am

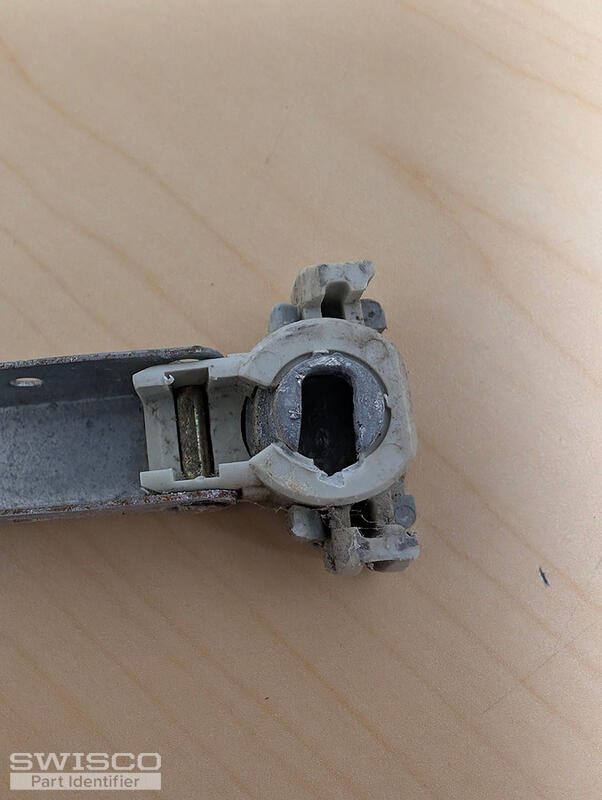

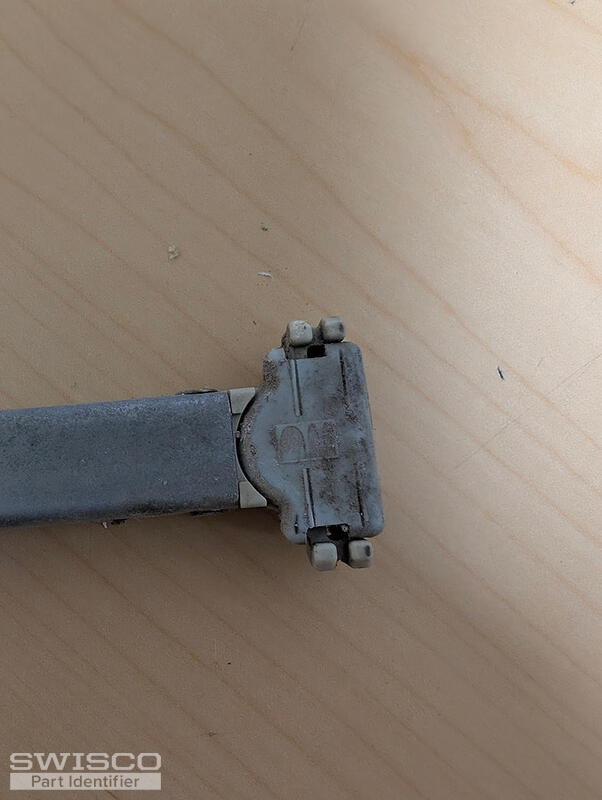

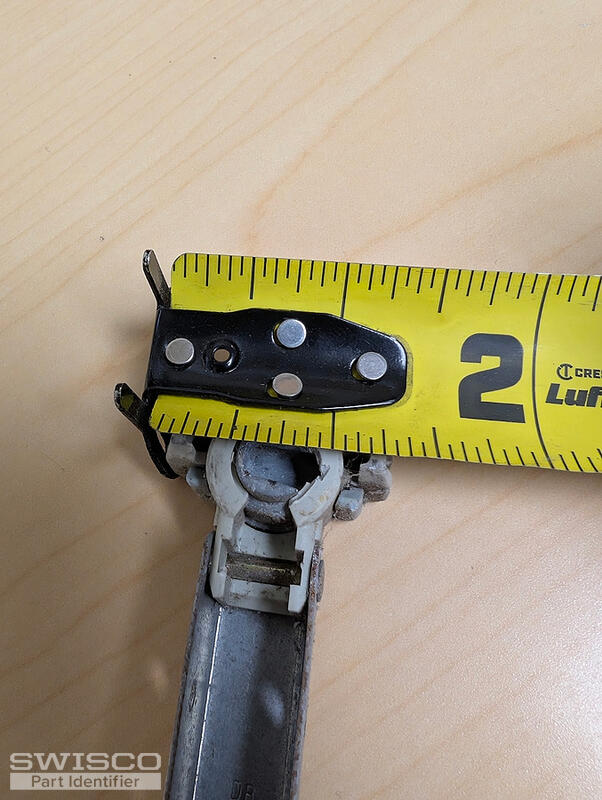

Thanks for your help Paul. I was able to pull the balance to get a better look at it. The shoe is 1 1/4" in width, but is rivited in on the open side of the balance, which ive never seen before. Let me know your thoughts. Thanks!

3 user uploaded images

Paul from SWISCO

Jan 9, 2026 1:44 pm

It appears you have an old-style balance, but our Series 795 can still work. Note that our balances are meant to install with the exposed spring side against the jamb.
