Window balancer. : SWISCO.com

Quick Learner from Sheridan Oregon

Oct 21, 2024 10:06 pm

Hello,

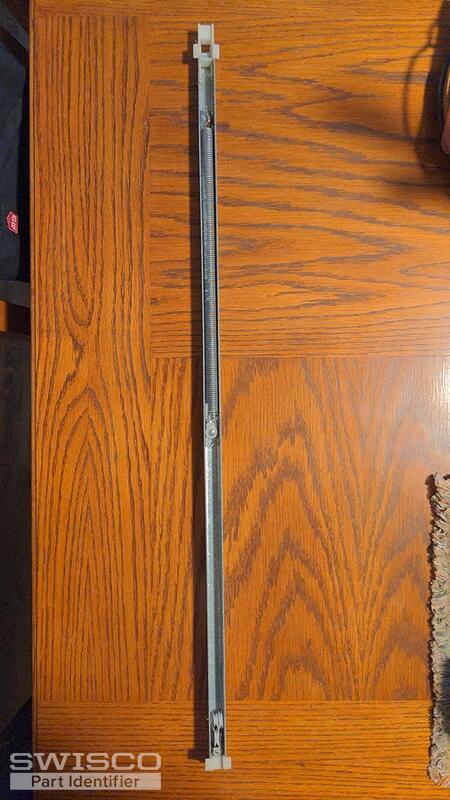

The metal piece is 26 in long and it is 9/16 wide. I would need four of these. I hope you can find them.
Thank you
Dawn

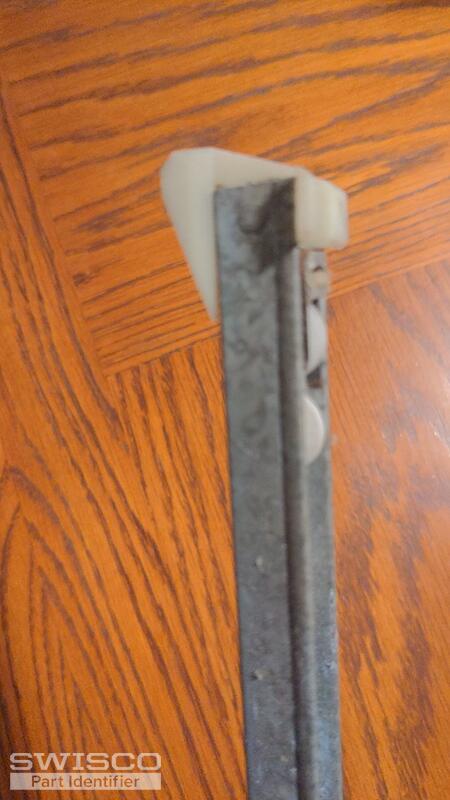

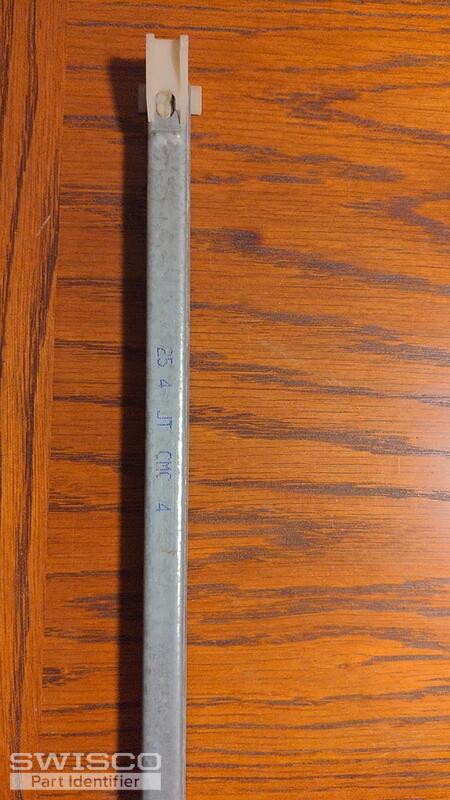

4 user uploaded images

6 Replies

Emily from SWISCO

Oct 23, 2024 2:14 pm

Hey there!

Thanks for reaching out to us, Dawn. We should be able to help with this. Can you show us a photo of the inside of the balance's metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel. Can you also measure the bottom shoe as shown below and tell us what you get?

Profile view of a winged balance attachment

Quick Learner from Sheridan Oregon

Oct 23, 2024 9:13 pm

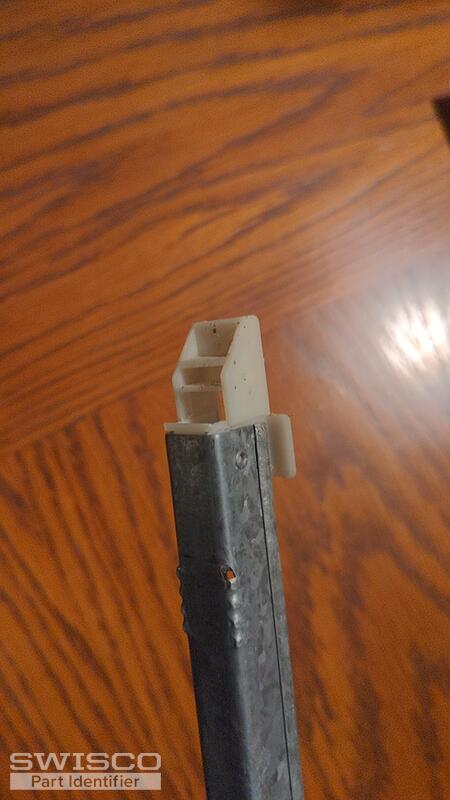

Ok, the wing is; 1/4 inch and the depth is; 1 inch and 1/16th

1 user uploaded image

Emily from SWISCO

Oct 24, 2024 8:48 am

Great, thank you! Our S380-26 or S385-26 with the 2540 stamp option look like matches. The Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe. I wonder if yours was once 1-3/32" but wore down to 1-1/16" over time from use. Take a look at the specifications and see what you think.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Sheridan Oregon

Oct 24, 2024 3:45 pm

Hi Emily,
Thank you so much for finding these I think I will go with the 1-in shoe which is the s380. I guess I will place my order right now. Thank you again!

Emily from SWISCO

Oct 25, 2024 8:03 am

It's my pleasure. I'll be here if you need anything else. Good luck with the repair!
