Window balancer

A quick learner from Florida says:
Hi,
Can you please tell me what part I need to order to replace these?
Thanks,
Bill
Thumbnail of the uploaded file named 3088BF45-9DAF-486D-B241-CFC3E95324A2.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hi, Bill.

We'd be happy to help but we'll need to see some pictures of your top and bottom fittings to determine which Series of balances you need.

A quick learner from Florida says:

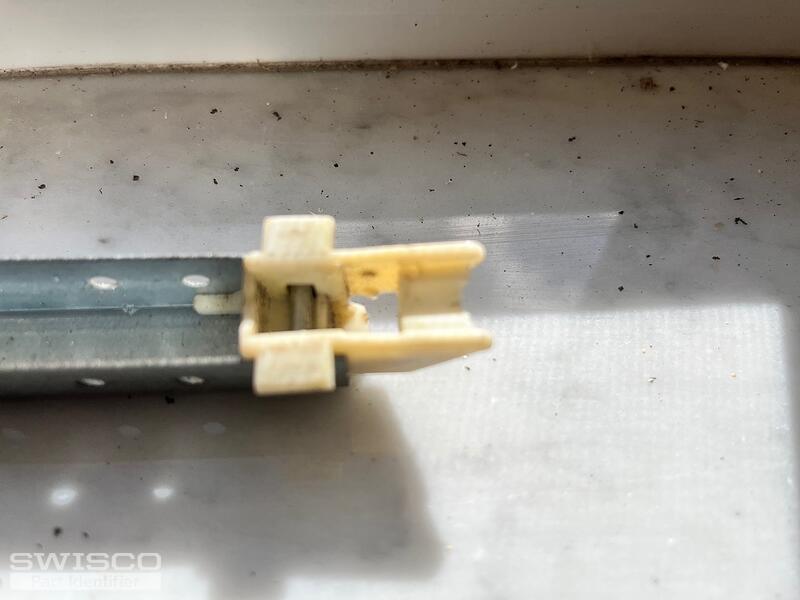

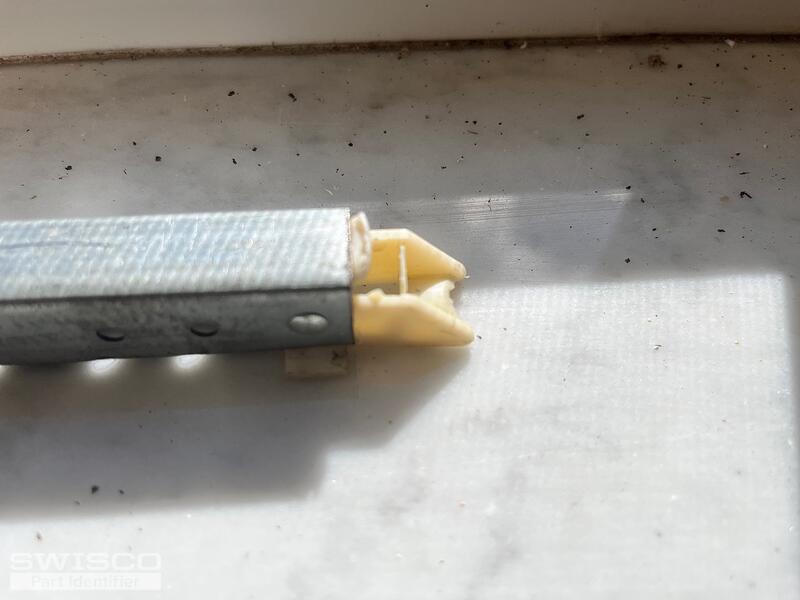

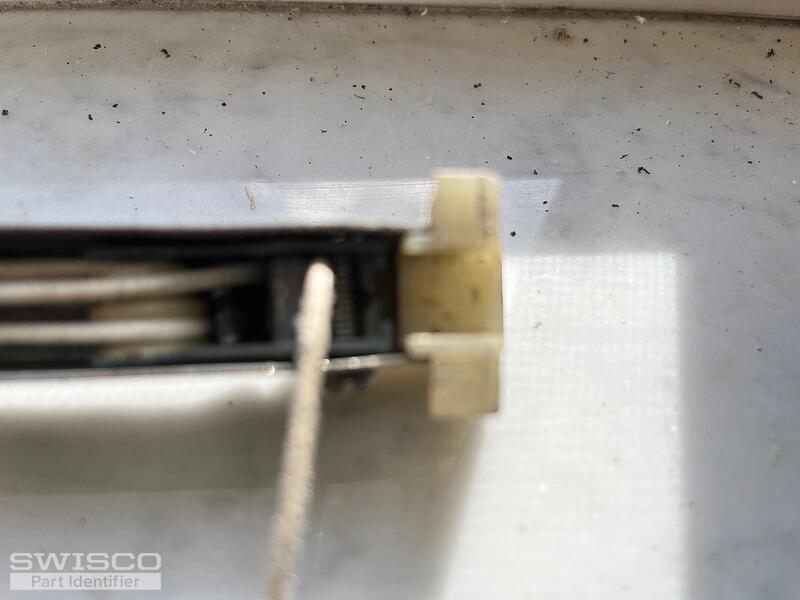

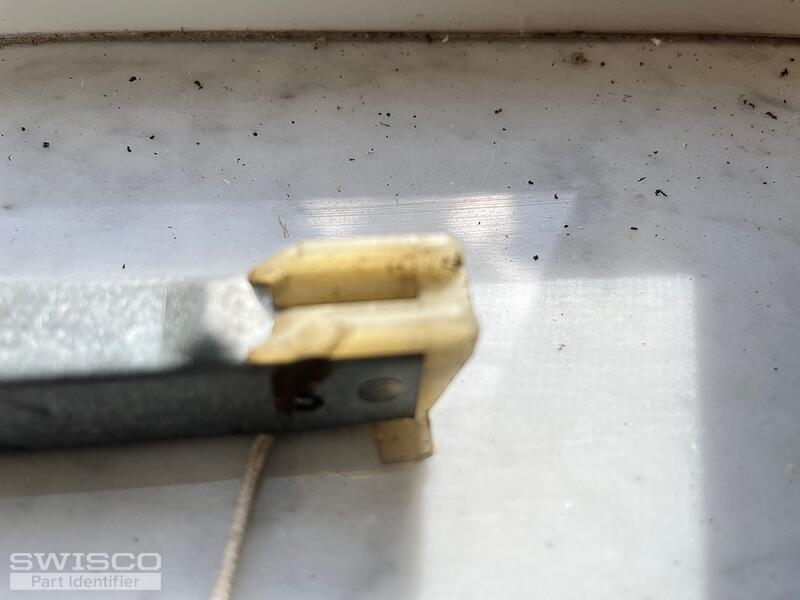

Hope this helps
Thumbnail of the uploaded file named 94FB48A5-8268-4F16-A797-66D4760165DF.jpeg
Thumbnail of the uploaded file named 7CBD7E4A-FA75-46CD-B478-AFCC7E4469CC.jpeg
Thumbnail of the uploaded file named 668D5EC7-0197-405A-8E8C-B4D2C8A220BB.jpeg
Thumbnail of the uploaded file named 9D6D3504-9D66-4EDE-A133-552D5C0764DA.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello there!

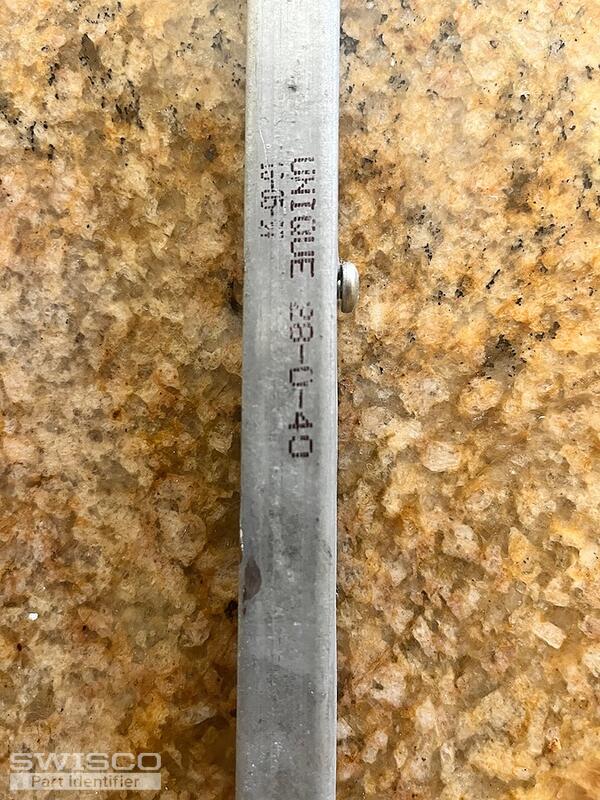

With this combination of fittings, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom fitting, and the Series 385 has a 1-3/32" fitting. You will also need the 2840 stamp option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
