Window balancer

Handy Person from Temecula, california.

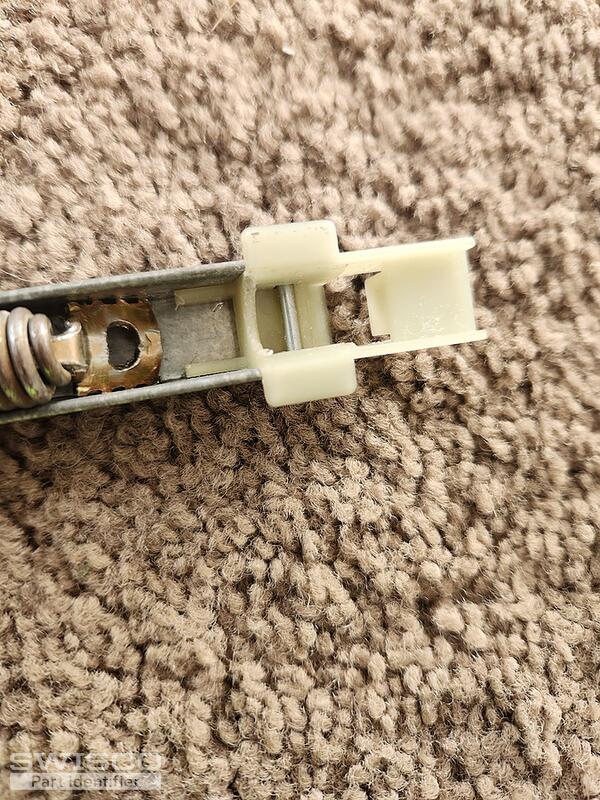

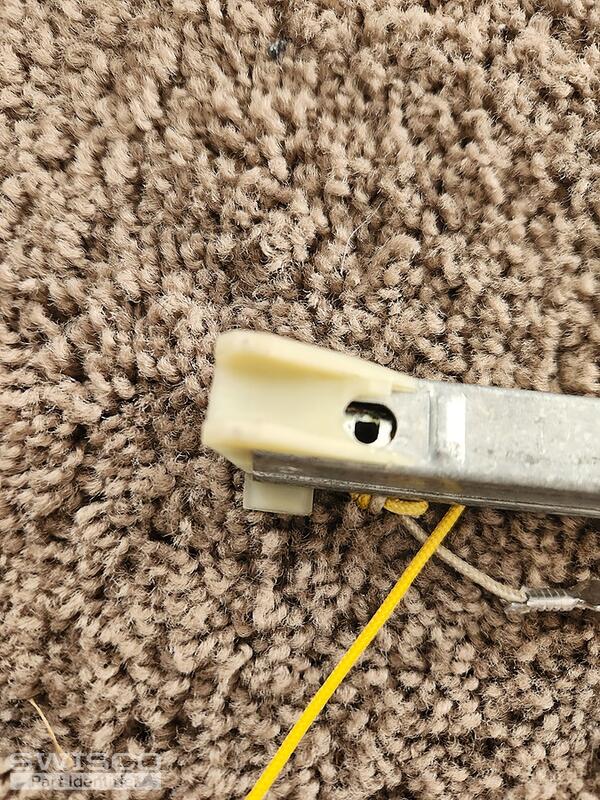

28 inch in lenghth metal to metal. Heavier window.
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for writing in! This window balance is similar to a few we supply. I'm confident we have a replacement but I'll need to see a photo of the piece connecting the spring and the cord (string) in the middle/center of the balance.

Please let me know if you have any additional questions!

Handy Person from Temecula, california.

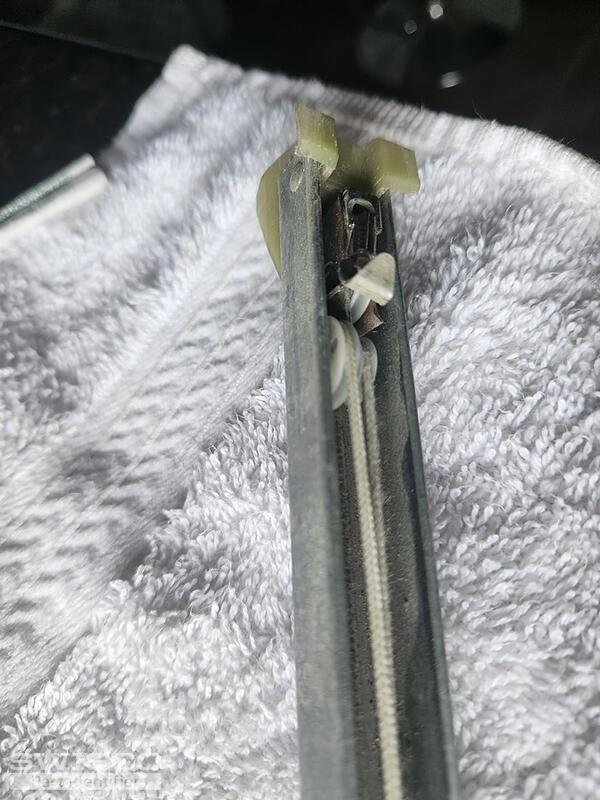

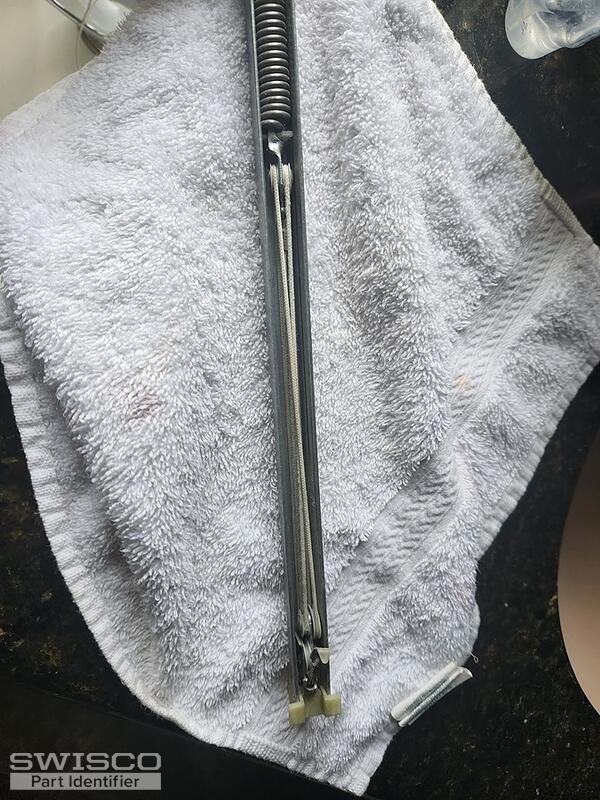

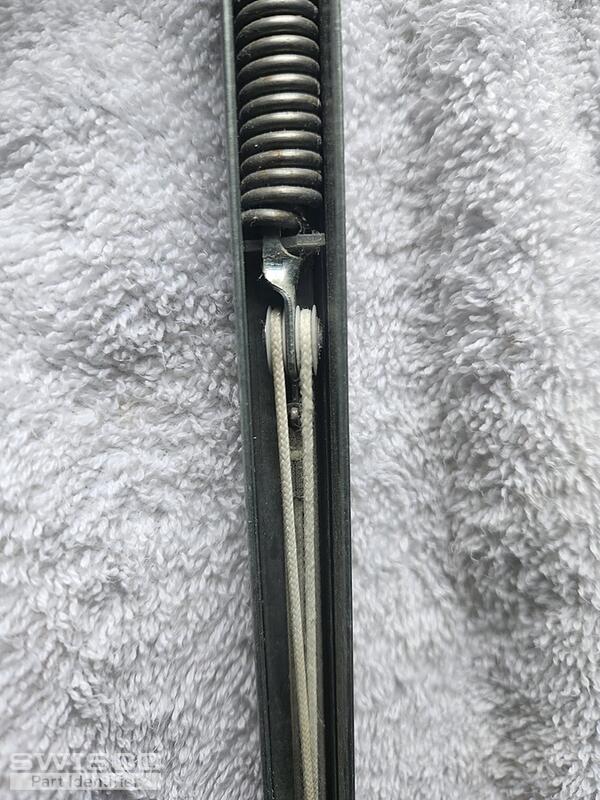

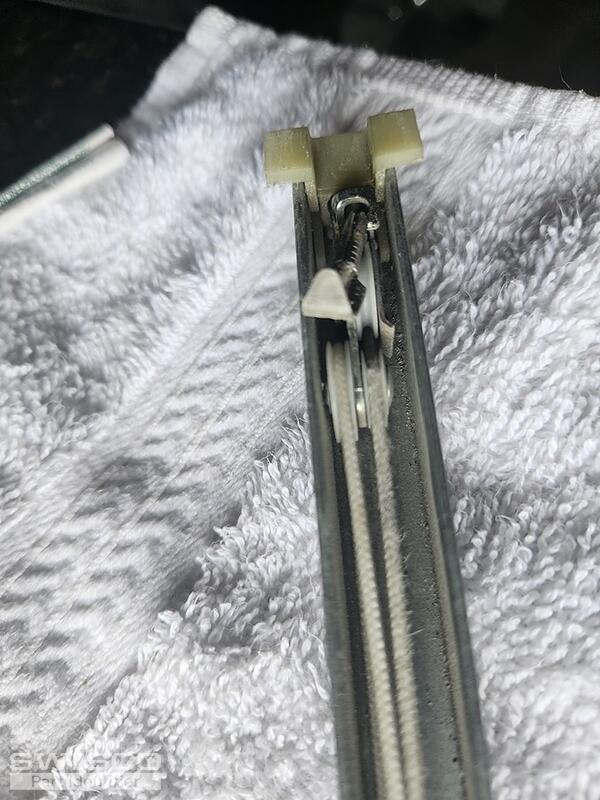

This is the working mechanism. Thank you.
4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. You'll need either the S380-28 or the S385-28 to replace this balance. To determine which of these is the series you have, confirm the depth of the shoe.

Our 2750 stamp option will support a sash (window) weighing 26 to 30lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
