Window balances

A contractor from Kissimmee FL 34758 says:

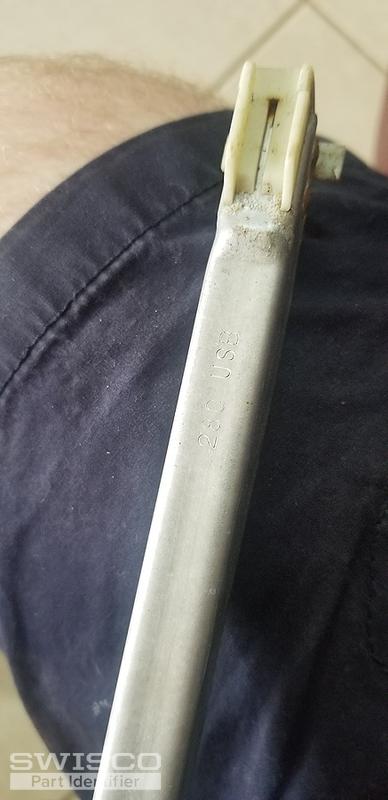

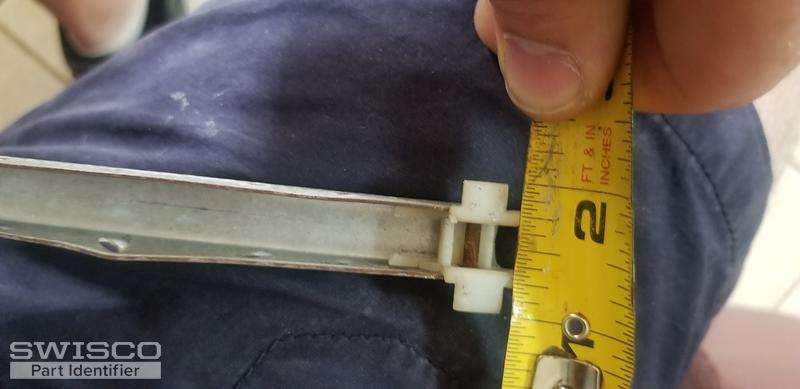

The channel is 29 inches long stamped with the numbers 28C USB
Thumbnail of the uploaded file named 20200929_112916.jpg
Thumbnail of the uploaded file named 20200929_112927.jpg
Thumbnail of the uploaded file named 20200929_113026.jpg
Thumbnail of the uploaded file named 20200929_113039.jpg
Thumbnail of the uploaded file named 20200929_112932.jpg
Profile picture of Bob
Bob from SWISCO responded:

This is possibly an S380-29, with a stamp option of 2830. However, confirm the shoe's depth, or 'heel-to-toe' measurement. If it's 1", then the Series 380 will work fine. If it's 7/8" however, you'll need balances with our 15-029 shoe attached instead, which we can make for you via a custom order. Just let me know.

A contractor from Kissimmee FL 34758 says:

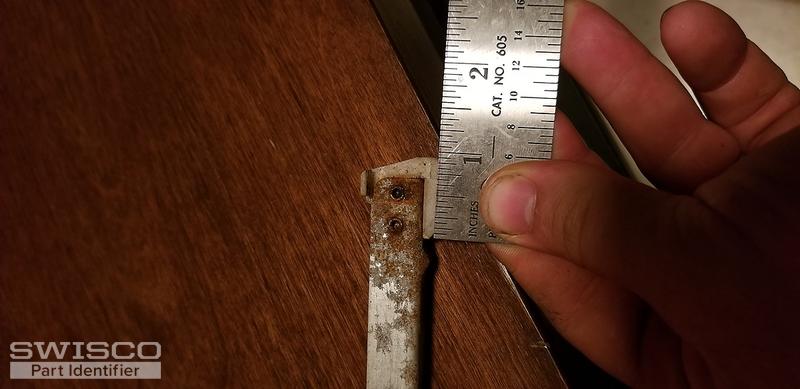

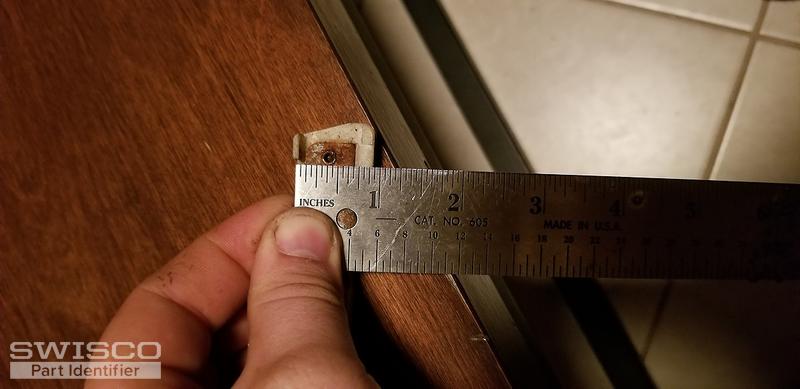

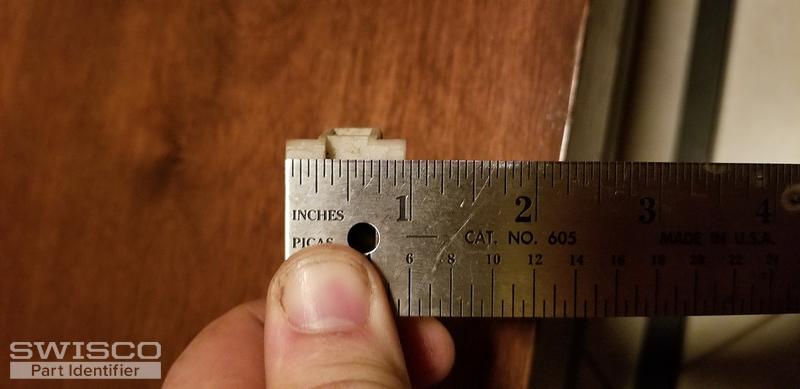

I believe it's 15/16
Thumbnail of the uploaded file named 20201006_223658.jpg
Thumbnail of the uploaded file named 20201006_223712.jpg
Thumbnail of the uploaded file named 20201006_223747.jpg
Profile picture of Bob
Bob from SWISCO responded:

If it's more than 7/8" but just less than 1", I think the Series 380 should work fine. Most likely the shoe just wore down a bit from age. In a worst case scenario, if the shoe proves to be too deep, you could always lightly sand down the heel a bit; just note that modified hardware cannot be returned for a refund.
