Window ballast plastic clip

Quick Learner from Schwenksville Pa

Oct 23, 2017 2:38 pm

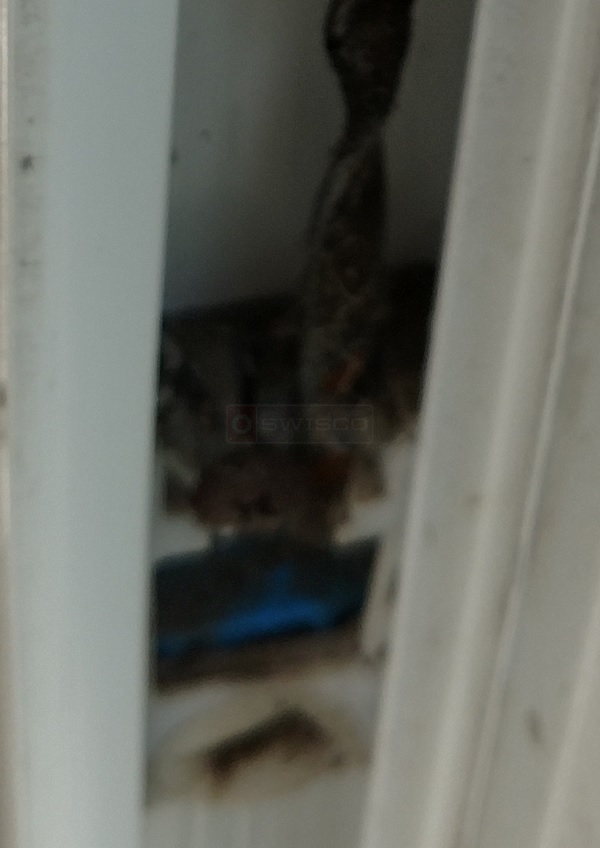

I am in need of the plastic clip that slides in window track that connects the window ballist with this clip. I have attached a photo of this clip. I will also need the ballist, at the end of the ballist the color is red. Can you help with these parts

4 Replies

Tom from SWISCO

Oct 27, 2017 10:38 am

Sounds like you need a pivot shoe and spiral balance. Before we can recommend anything, we will need you to remove the shoe and balance from the window and get measurements.

For the shoe, we will need the width and thickness. Those are the two most important dimensions. Height doesn't matter, so you can ignore that.

For the spiral balance, we will need the length and diameter of the outer tube.

Quick Learner from Pennsylvania

Nov 20, 2017 3:11 pm

All I need is the pivot shoe. the measurements are 2" length & 1.25" width.
I will take 6 of these shoes , do you have and how do I order?

Paul from SWISCO

Nov 21, 2017 4:10 pm

The pivot shoe looks like the 15-046, which is 1-1/4" wide by 1/2" thick. Please confirm the size. If that's your shoe, you need 5/8" Series 600 tilt balances. You will need the tube length, plus you already identified the tip as red. Look over our media guides on the right for more help.
