Window blance

Handy Person from Croydon
Hi..
Need info on this part if possible... if I can order some... thanks
1 user uploaded image
6 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

We do not carry an exact match for your original coil balance, but may be able to assist with an alternative. To further review, are you able to show us the other side of the pivot shoe where we can see the metal/plastic cam that the pivot bar on the sash fits into?

Please also provide written out dimensions of the width and thickness of the pivot shoe along with the thickness of the coil spring.

Are there any numbers stamped on the coil springs? Thank you!

Handy Person from Croydon

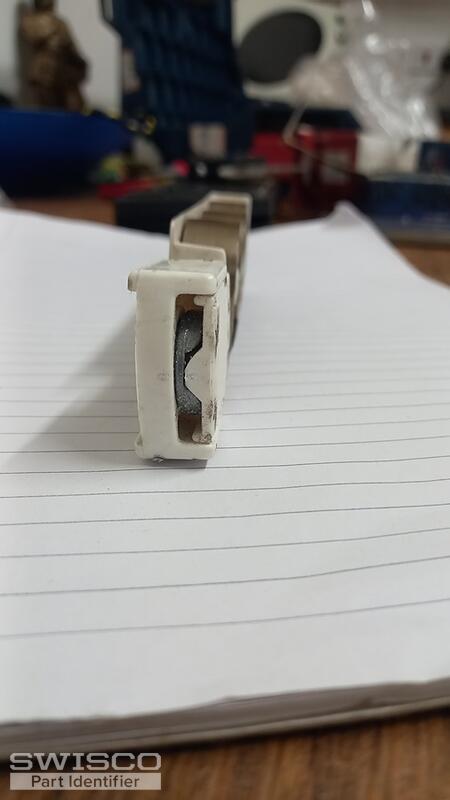

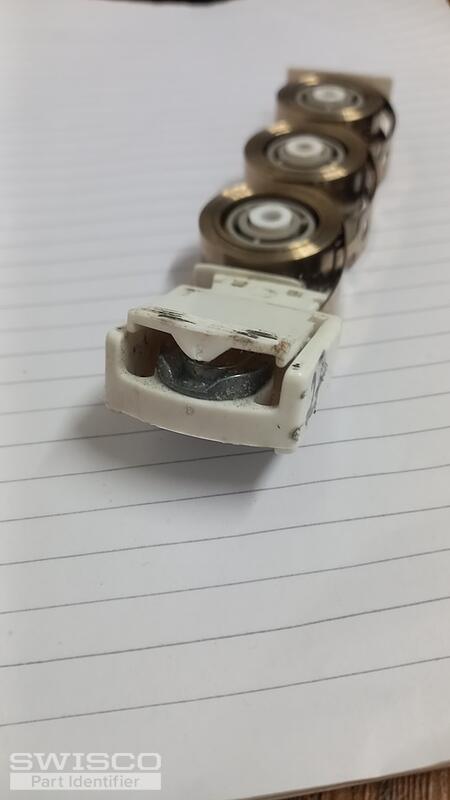

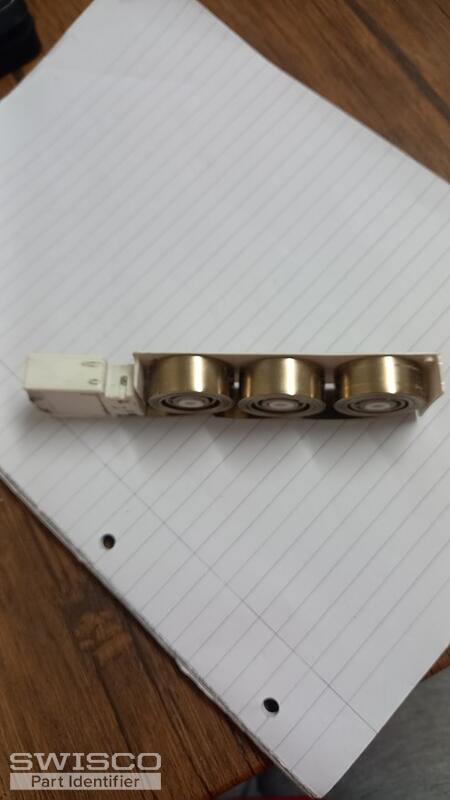

Thank you so much for getting back to me... I have sent everything I could to help you help me x
5 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for the additional images,

Please start by reviewing the 17/32" 15-199 pivot shoe. Compare the dimensions below to confirm a good fit!

Alternate view of 15-199
Alternate view of 15-199

To further review, please provide the thickness of the coil springs along if there are any numbers stamped in to the metal.

If there are no markings, we will need to know the weight of the window sash. The sash will need to be removed and placed on a bathroom scale. Thank you!

Handy Person from Croydon

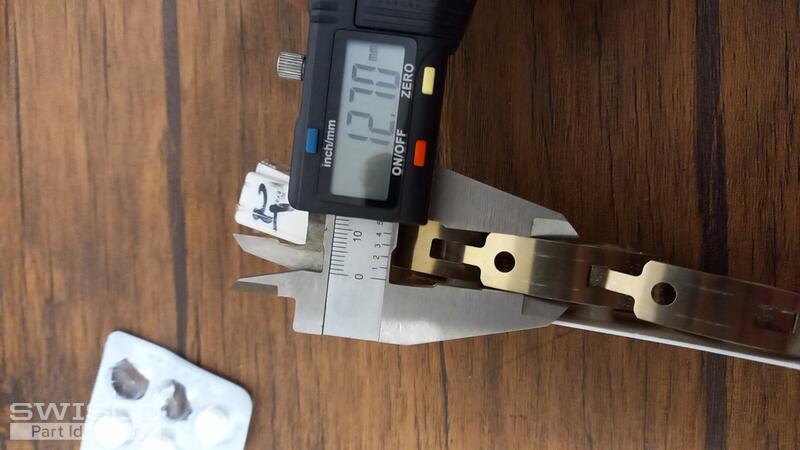

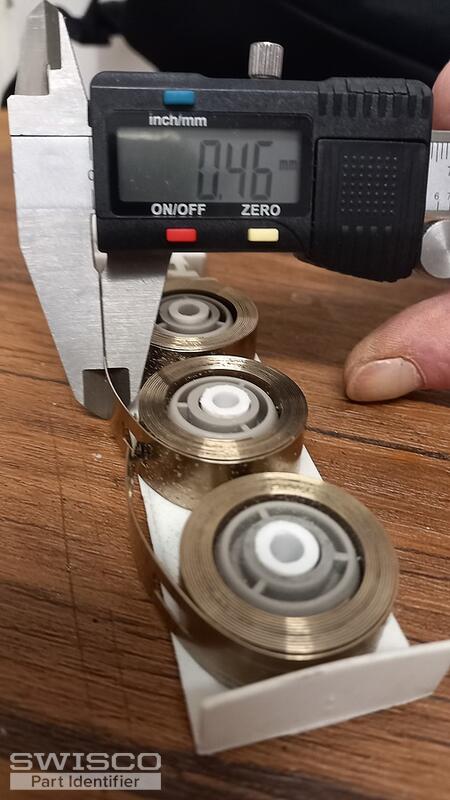

Hi sorry for the back and forth.. I have sent a photo of the thickness of the coil also there is no markings to be seen on the plastic or coils ...i will be sending the weight of the window and also photos of the whole frame in the next couple of days when back at job... thank you again for your time ,help and patience in this matter?
2 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you!

Your coils have a 1/2" thickness which would be the Series 160 coil springs that is compatible with the 15-199 shoe. Once we have the weight of the window sash, we can move forward with choosing the correct weighted spring options for your window.
