Window came from Home Depot

Start a new Discussion

Handy Person from Chester

Mar 21, 2018 11:23 am

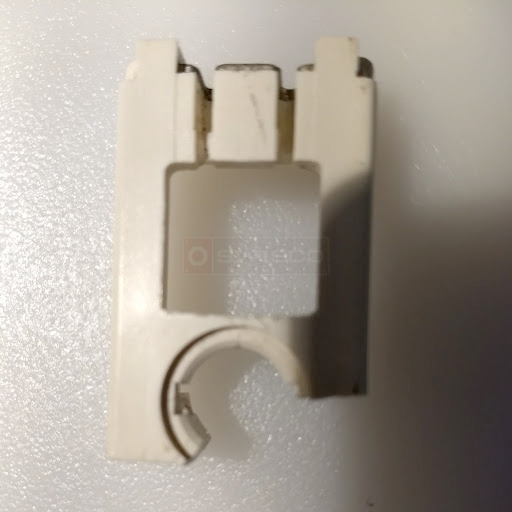

Pivot lock shoe. I believe the measurements to be 1&1/4"x 9/16 x Approx. 2" tall

3 Replies

Handy Person from Chester

Mar 21, 2018 4:52 pm

After removing pivot shoe from frame. I found the true measurements to be 1/2 inch deep, 1 and 1/4 inch wide and 2 and 1/8 inch tall.If you have a replacement part please let me know.
Thank you

Paul from SWISCO

Mar 23, 2018 2:02 pm

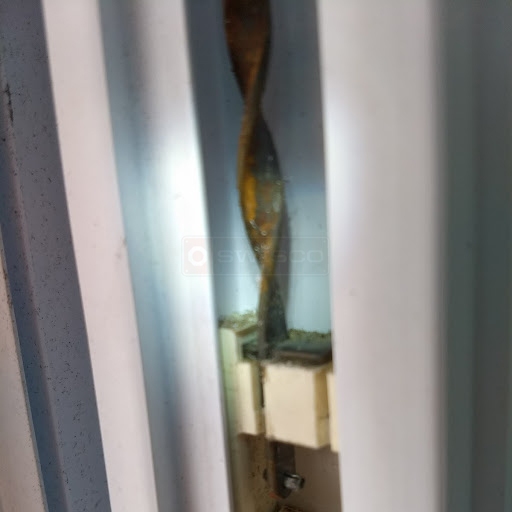

Thanks for your images. Let's start off with your pivot shoe. This particular one has been able to be replaced with our 15-046 pivot shoe. We also noticed some rust on your current Series 600 spiral balance. We'd like to recommend to place some grease on it and work it in the tube to lubricate the spiral. I also suggest ordering our 75-006 charging tool to help in the repair. We placed some helpful media guides on this page for you to review.
