Window casement

A handy person says:
I'm looking to change the lock and crank to white.
Thumbnail of the uploaded file named EC7C2CD7-6915-44FE-9002-CBFAF4C5DE4C.jpeg
Thumbnail of the uploaded file named B78ADA8A-AE75-46A8-967E-FEAAD0053632.jpeg
Thumbnail of the uploaded file named 8D71403A-4704-43D6-AF0D-86B42FA8737C.jpeg

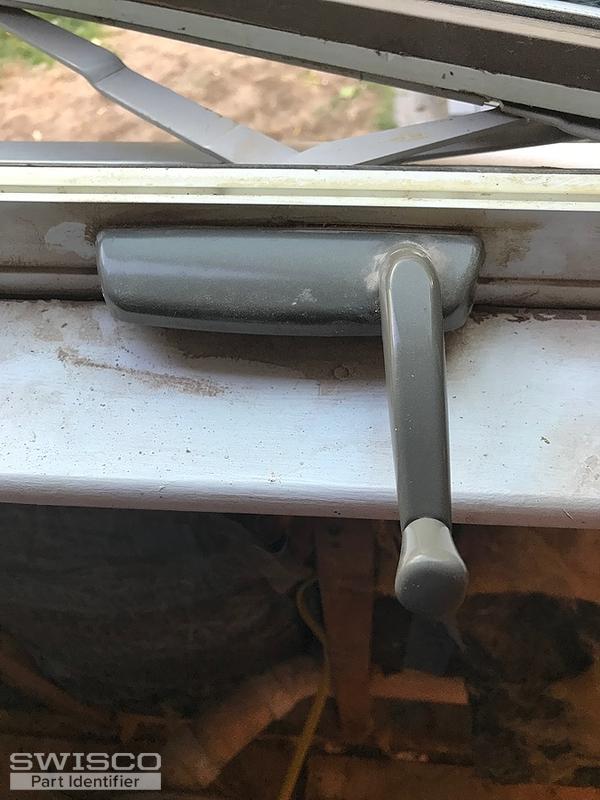

Thumbnail of the uploaded file named B2919B33-AF0B-4F41-AC4A-00149CF6CCBA.jpeg

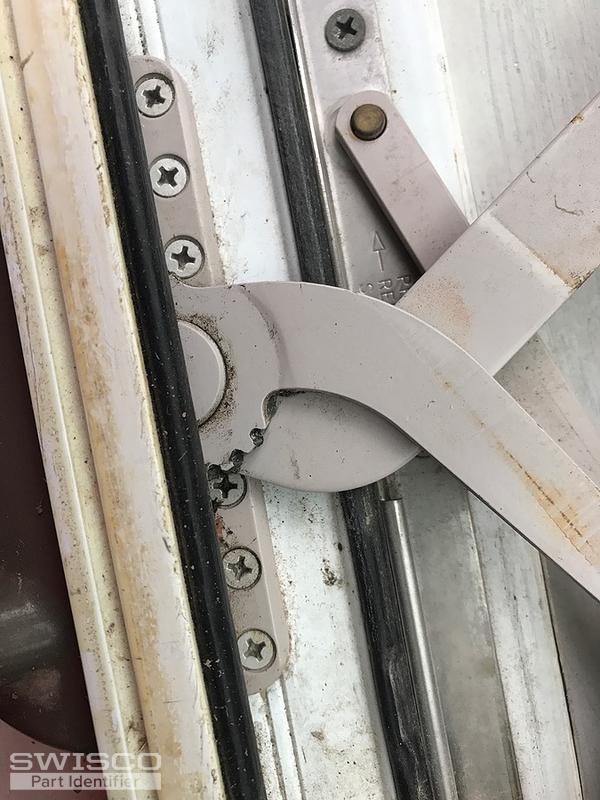

Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:

For your window lock, I recommend the 38-091 and 38-092 . Carefully compare our dimensions to yours to ensure that everything lines up.

As for the operator, you have either the 39-253LB or 39-438B , depending on the design of the slider at the end of the arm. Yours is obscured so I don't know which one to go with. The video below will go into more detail as to what I mean. Either way, you'll also need a new 39-451 cover.

A handy person says:
How do I remove just the handle that's all I need. The gears and stuff work fine
Profile picture of Tom
Tom from SWISCO responded:

Are you referring to the handle on the operator? That would be the 39-114L , if you just wanted that by itself. Yours either pops on and off or is secured by a set screw.
