Window channel 28d

Question

28d is stamped, metal only is actually 29 and is the 1/2 inch. Need the whole assembly, top is made like the 19-002 (no clips protruding don't look broken). The bottom is like 15-005 on your website, mine are both broken off in picture, but enough for a measurement. I can't seem to find made together. Which one will work?

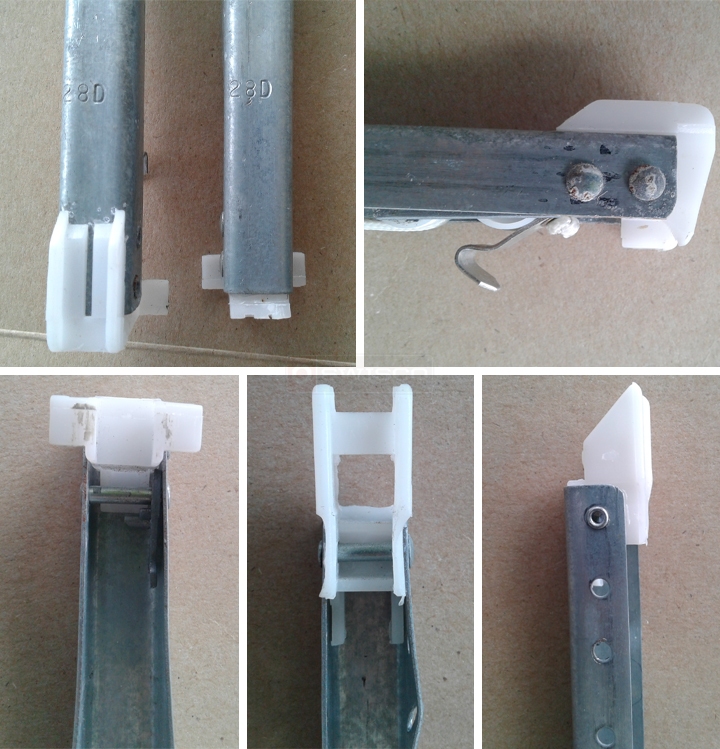

User submitted photos of a window balance.

Paul · Accepted Answer

Looks like someone cut the wings off of a 19-005 top balance fitting. We believe you originally had an S380-29 channel balance, which comes with a 19-005 top and 15-005 bottom. This should still work for your sash despite the 19-005 top having wings.
