Window channel

Home Owner from Irvine, CA

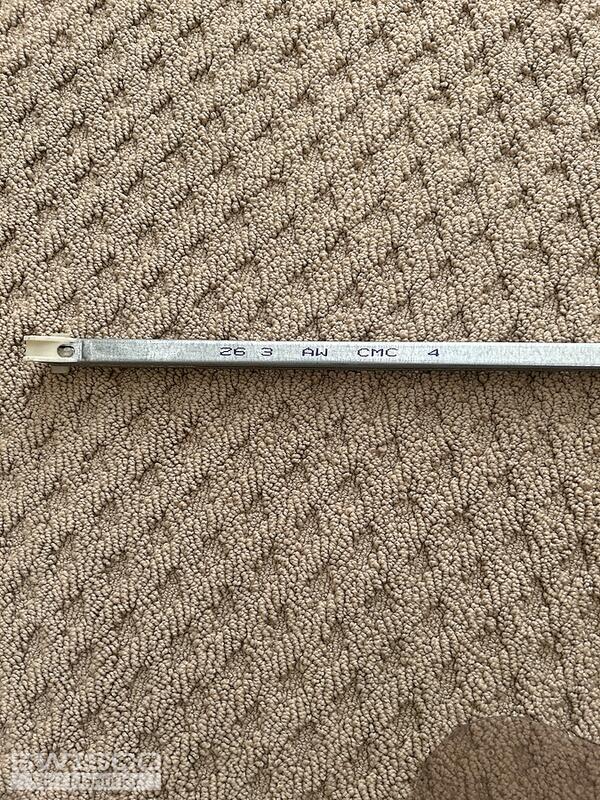

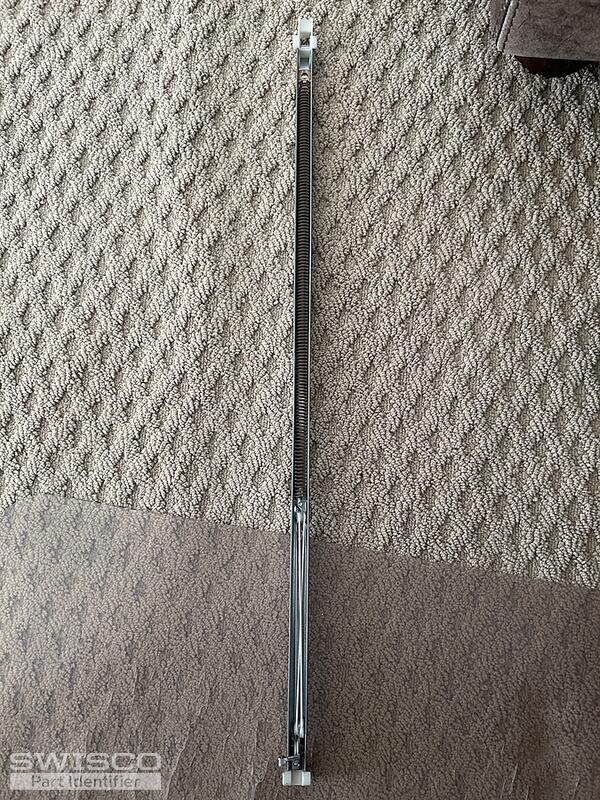

Hello, I need window balance channels for both sides, as both are broken and require replacement. I've attached a photo of the existing channels to help identify the correct replacements. Each channel measures 27 inches in length. Could you also let me know if I need to purchase the balance shoes separately for each end of the channel, or are they pre-installed? Thank you!

Alex

5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Alex,

Thanks for your post! Our balances are shipped fully assembled and ready for installation. There is a chance these may need to be a custom assembly, but I'll need to see a photo of the bracket that connects the pulley system and the spring to confirm.

Please feel free to reach out with any other questions you might have in the meantime.

Home Owner from Irvine, CA
Hi Jasmine
Thank you for the reply

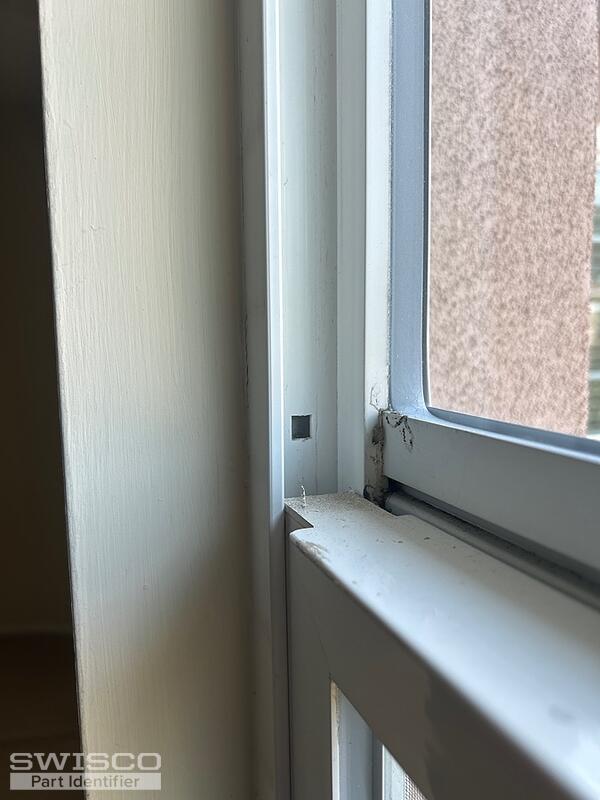

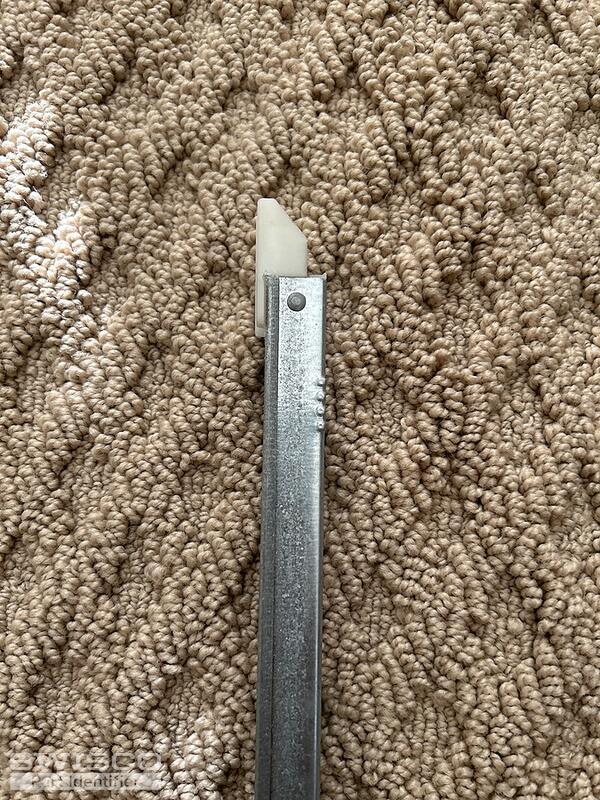

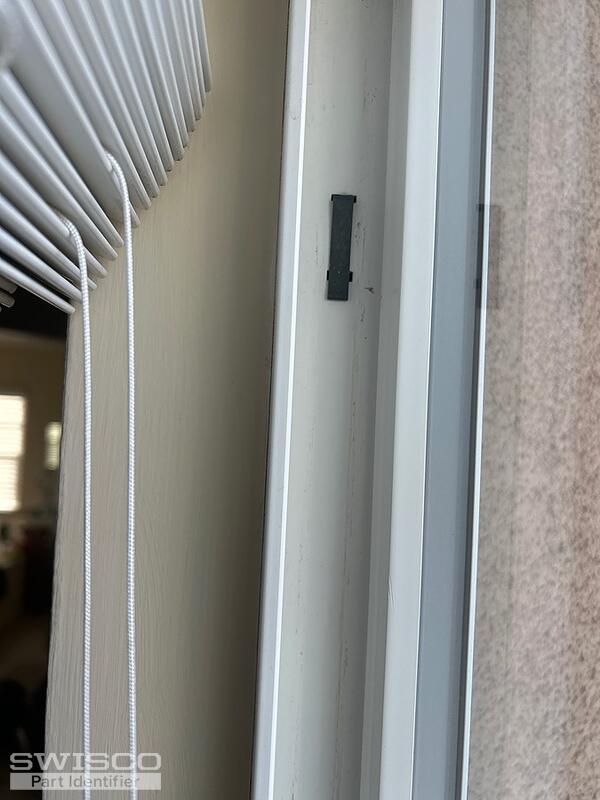

Here here are the photos of brackets
I need to order the parts ASAP
I would appreciate your prompt response

Thank you
Alex
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Alex,

Thanks for the additional photos. Your balances can be replaced with either the S380-27 with a 1" shoe or the S385-27 with a 1-3/32" shoe. To determine which of these is the best fit for your repairs, you'll need to confirm the depth of your shoe.

You can select the 2630 stamp option. The metal piece is the 16-002 Take Out Clip.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Alternate image for 16-002
Alternate image for 16-002
