Window channel balance

A quick learner from Irvine CA says:
April 8, 2019

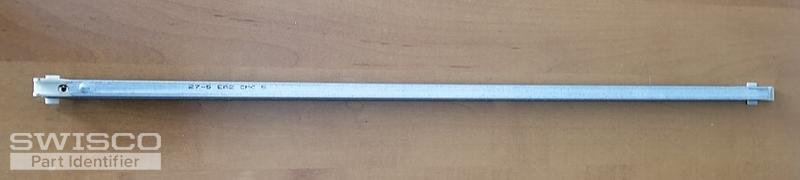

Hello: Your help please to identify this replacement part. I am told it is for a heavy window. Thank you.

Connie
Thumbnail of the uploaded file named 20190403_092653.jpg
Thumbnail of the uploaded file named 20190403_092642.jpg
Thumbnail of the uploaded file named 20190402_131559.jpg
Thumbnail of the uploaded file named 20190402_131510.jpg
Profile picture of Bob
Bob from SWISCO responded:
April 9, 2019

Hi Connie. Confirm that your balance's metal channel, not including the nylon attachments, is 28". If so, see either our S380-28 or S385-28. The only difference between these two Series is the 'depth' of the bottom nylon shoe. With the Series 380 the depth of this nylon shoe is 1", whereas with the Series 385 it is 1-3/32". Compare with your own and see what is best.

Once you know which balance to select, you must choose a stamp option. Your stamp code of 27 6 translates to our stamp option of 2760. This is for a window sash in the weight range of 30 through 33 lbs. Let us know if you have any questions.
A quick learner from Irvine CA says:
April 10, 2019
Thanks Bob. Yes, the metal channel is 28" & I was able to determine that the depth of the nylon shoe is 1". Appreciate your help. I will now go ahead & place an older.

Connie
Profile picture of Bob
Bob from SWISCO responded:
April 11, 2019

Glad to hear, Connie. If you need anything else, just ask me.
28" Series 380 Channel Balance
28" Series 380 Channel Balance
S380-28
$10.97
28" Series 385 Channel Balance
28" Series 385 Channel Balance
S385-28
$10.97
