Window channel balance

Question

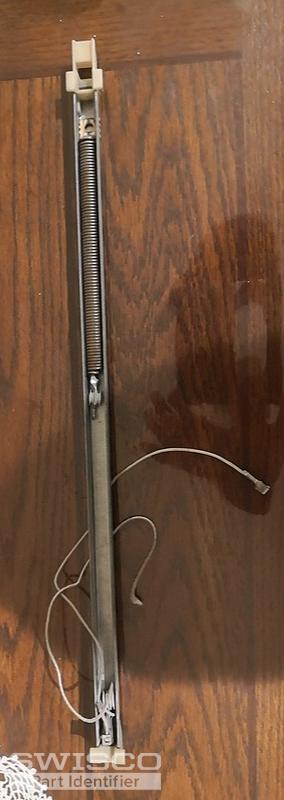

I need to 4 window channel balance, and l need to replace it. One is stamped 17 9 ds Caldwell, would you help me which series in your list match with my channel balances.

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-18 or S385-18 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need since your stamp number is from an outdated weight system. There is a chart on the balance product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
