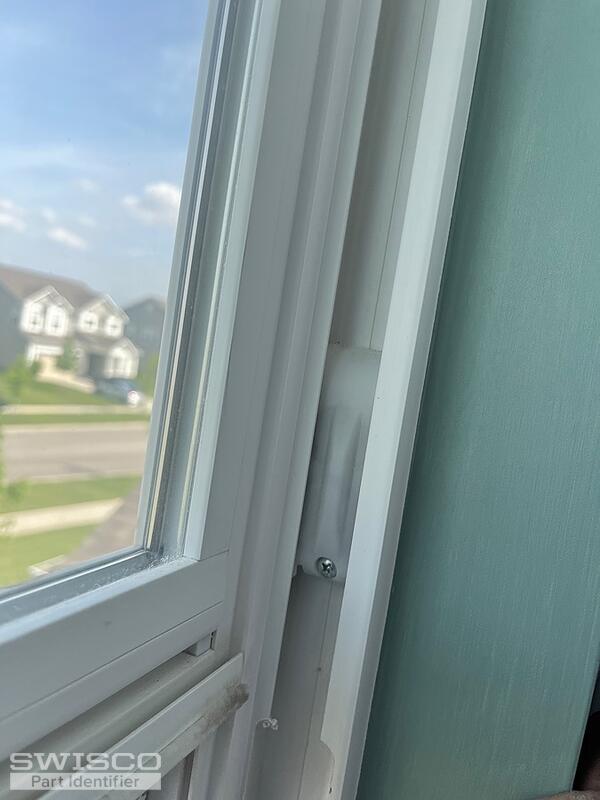

Window channel balance
Hello, thank you for posting,

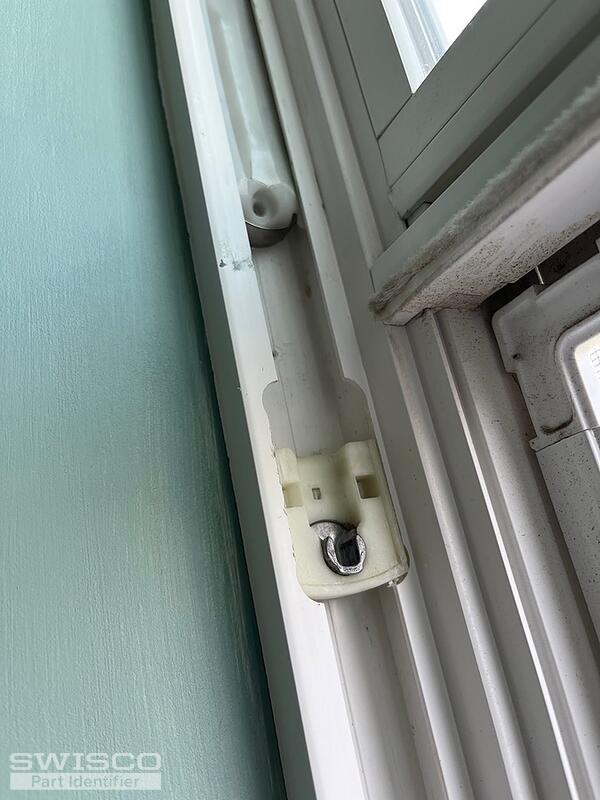

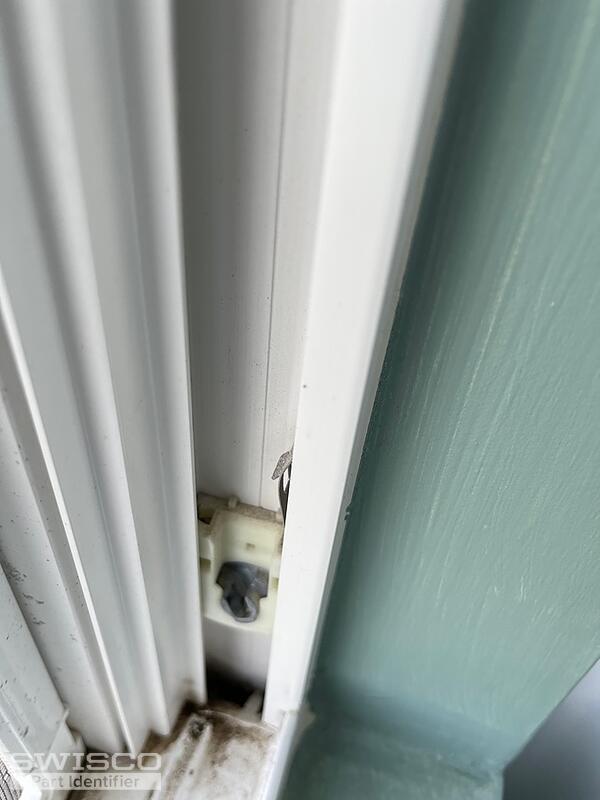

Take a look and compare the specifications of our 15-199 pivot shoe shown below to yours, which is designed to use either the 1/2" thick Series 160 or 3/8" thick Series 165 coil springs. Please compare the overall dimensions to confirm a good fit!
The 15-199 pivot shoe is 17/32" thick.
If you need assistance with choosing the correct weighted coils, please provide the weight of the sash to move forward.

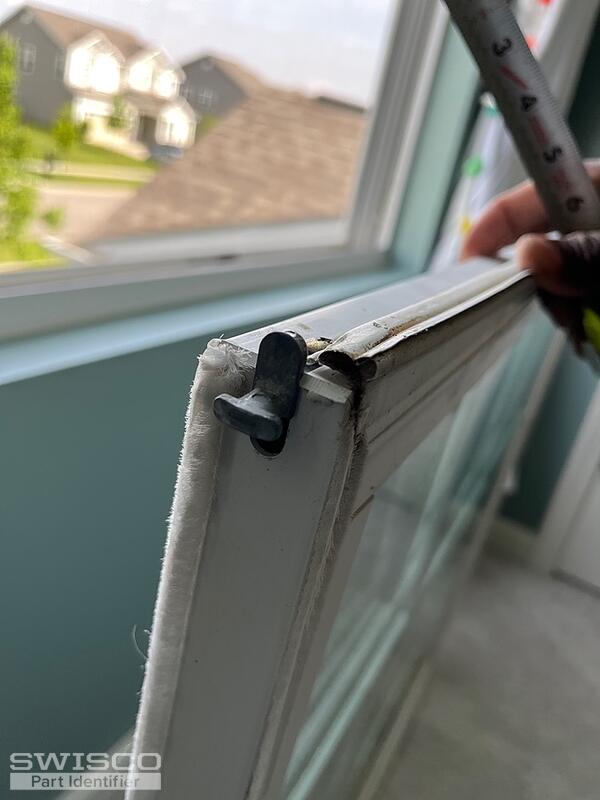

To further review, we will need to see the original pivot bar removed from the window sash to view the overall style.
The 15-199 pivot shoe is compatible with either the 1/2" thick Series 160 or 3/8" thick Series 165 coil springs. You will need to remove the assembly to confirm the thickness to determine the correct coil Series to use. If you need assistance with choosing the correct weighted coils, please provide the weight of the sash to move forward.
