Window channel balance
Quick Learner from Eric
Jun 27, 2024 3:58 pm

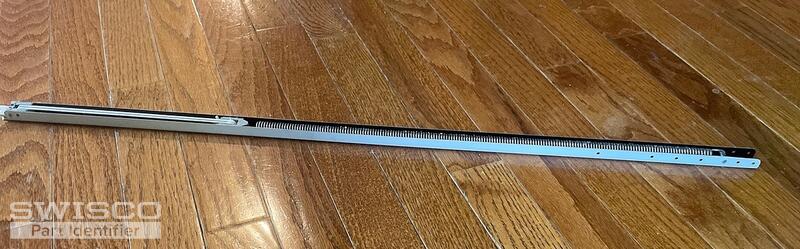

29 inches long not including moving piece the sash pivot bar.
1 user uploaded image
9 Replies
Quick Learner from Chatsworth, Ga
Jun 27, 2024 4:28 pm

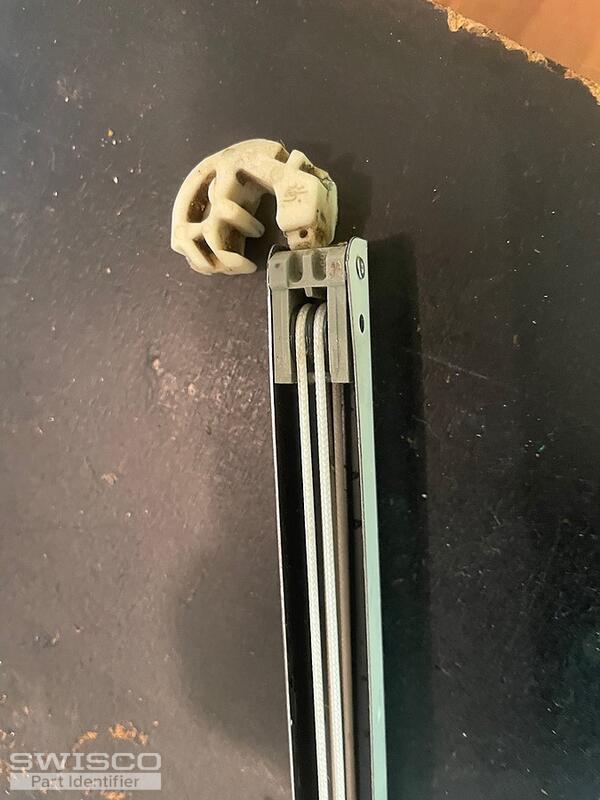

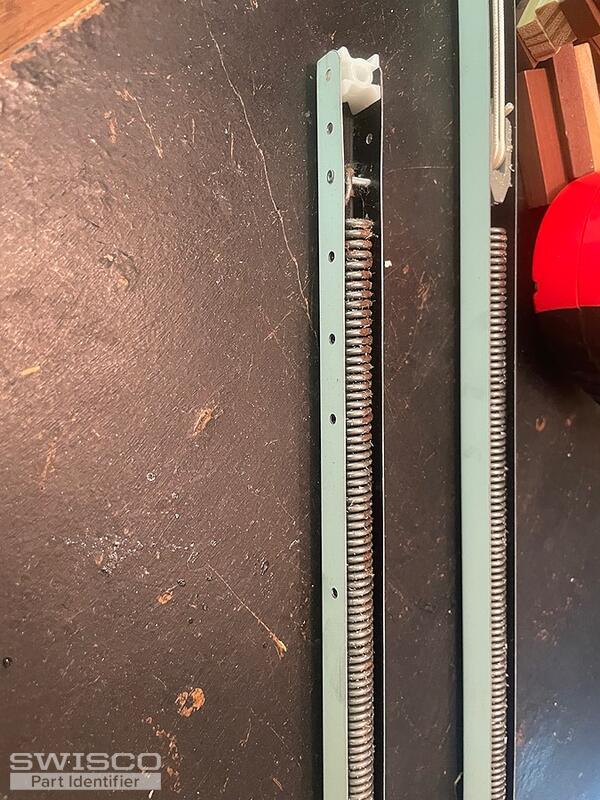

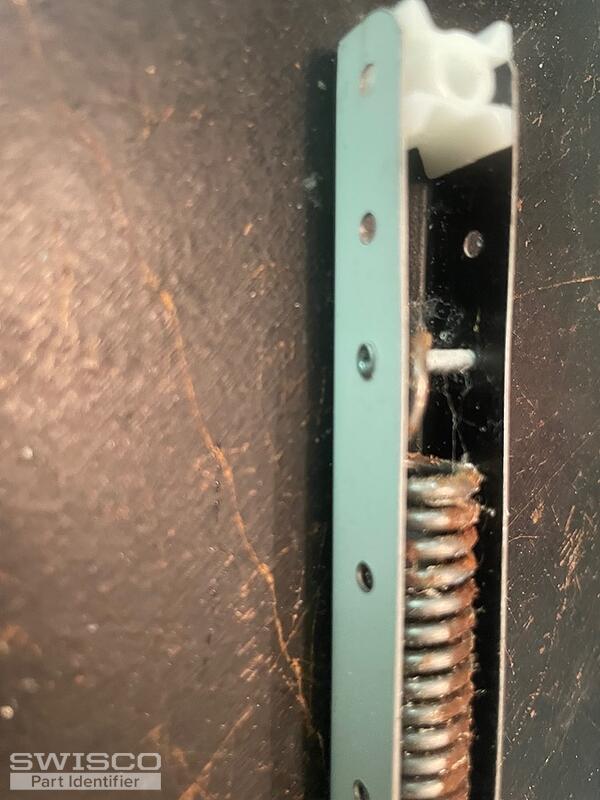

Hi this is my second post. I have more detailed photos in this one. I apologize. The balance is 29 inches long not counting the shoe. 5/8 inch wide. The shoe is broken on one side. The windows are original to our house that was built in 2003.
3 user uploaded images
Casey from SWISCO
Jun 28, 2024 11:12 am
Hello,
Your balance resembles the S775-29 channel balance. You'll need to locate the stamp code on your metal channel and measure the bottom fitting to choose the corresponding strength option for your replacements. Take a look and let us know if you have any other questions. Thank you!
Close up view of the top of the Series 775 sash support balance.
Close up view of the bottom of the Series 775 sash support balance.
Quick Learner from Chatsworth, Ga
Jul 2, 2024 7:19 pm

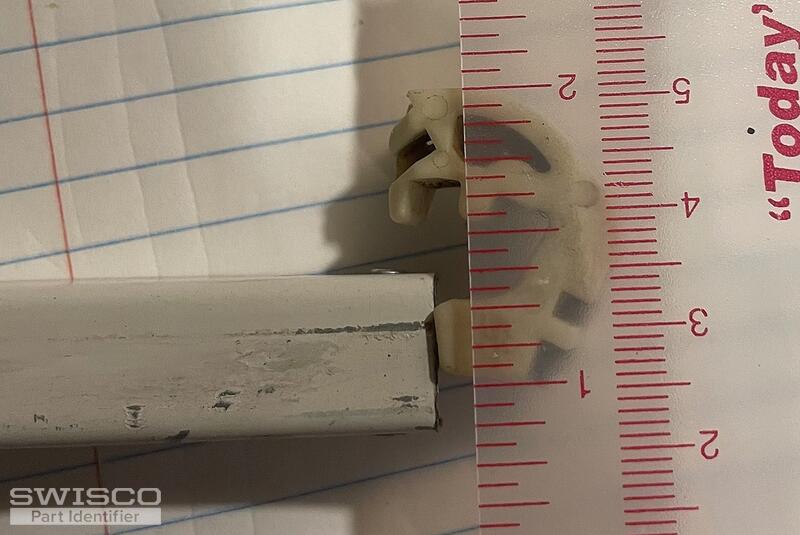

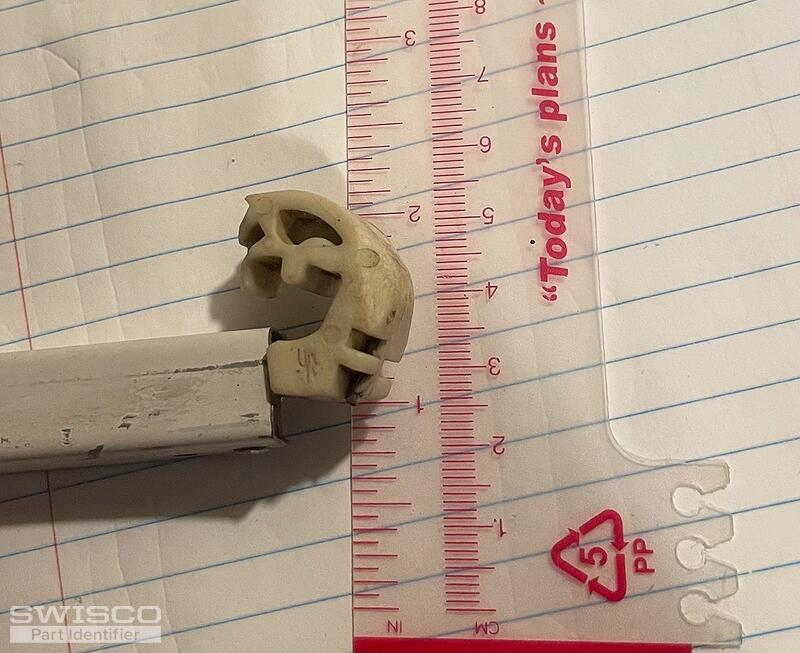

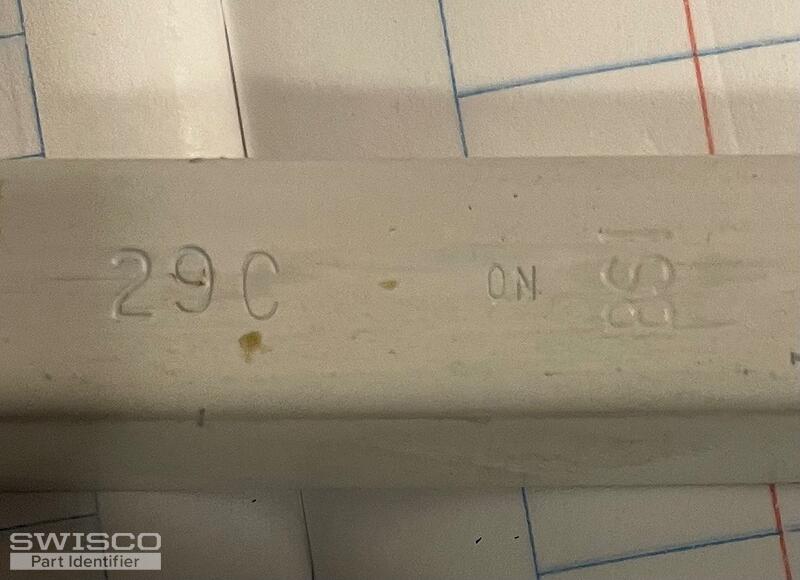

Hi, thank you for this information. I need to choose the correct shoe size, either C with a 1 " shoe or C with a 1 1/4 " shoe. I'm not sure how to measure the shoe but I added some photos that show what I think is the correct way to measure the shoe. Also included is the stamp on the metal that may be of help.
3 user uploaded images
Casey from SWISCO
Jul 3, 2024 8:17 am
We can't make out exact dimensions from photos but your balance fitting appears to measure 1" wide. If so you would need the 29C & 1" shoe options for your replacement balances.
Quick Learner from Chatsworth, Ga
Jul 3, 2024 10:40 am
Thank you! I'll go with 1 inch. If for some reason, it's the wrong size, may I swap it?
Casey from SWISCO
Jul 3, 2024 10:59 am
Sure, if you run into trouble for some reason, our return policy can be found here.
Quick Learner from Chatsworth, Ga
Jul 3, 2024 6:36 pm
Thanks so much! I really appreciate all your help.
Casey from SWISCO
Jul 5, 2024 8:24 am
It's our pleasure! Just let us know if you need anything else.
