Window channel balance

Contractor from Las Vegas

May 27, 2025 1:58 pm

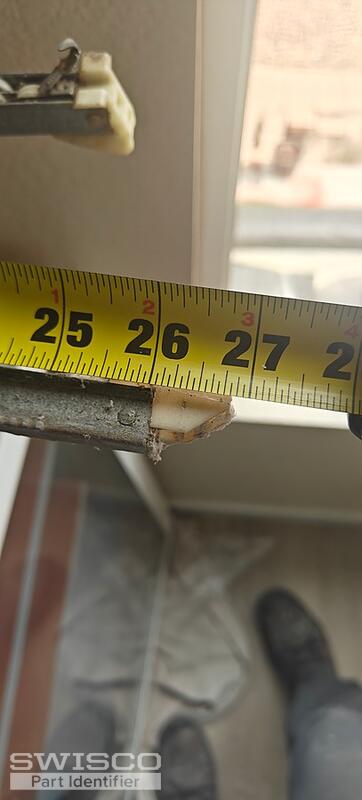

I'm looking for replacement channel balance. The total length of the metal is 26 in. The weight of the window is about 17 lb.

5 user uploaded images

4 Replies

Emily from SWISCO

May 30, 2025 3:05 pm

Hey there!

Thanks for reaching out to us. Take a look at the S380-26 and S385-26 channel balances. The best match will depend on the depth of the bottom shoe, as shown below. You can also select the 2530 stamp option. A pair of balances with this stamp will support a sash weighing 15 to 19 pounds.

Comparison of the S378, S380 and S385 balance shoes.

Contractor from Las Vegas

May 30, 2025 4:04 pm

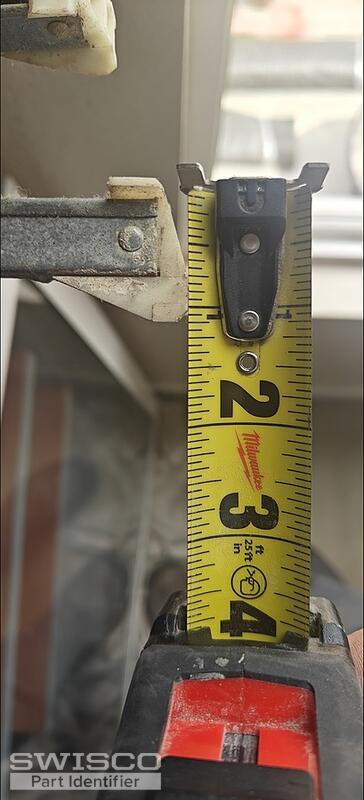

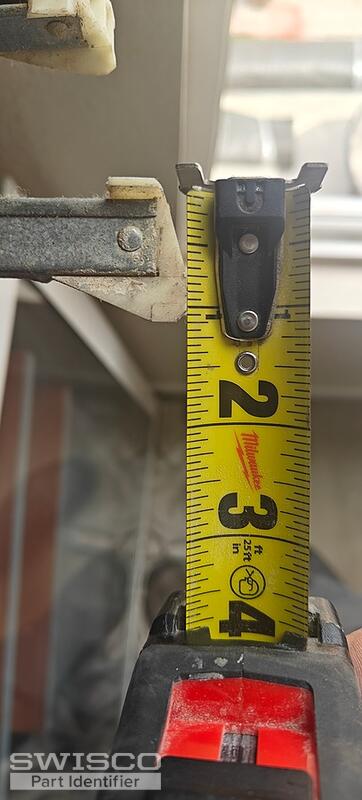

This is the measurement of the bottom shoe

1 user uploaded image

Emily from SWISCO

Jun 2, 2025 9:56 am

It's hard to get accurate dimensions from photos, but if the shoe is over 1" deep, you likely have the Series 385.
