Window channel balance replacement

Start a new Discussion

Home Owner from Oviedo, Fl

Mar 18, 2026 7:34 pm

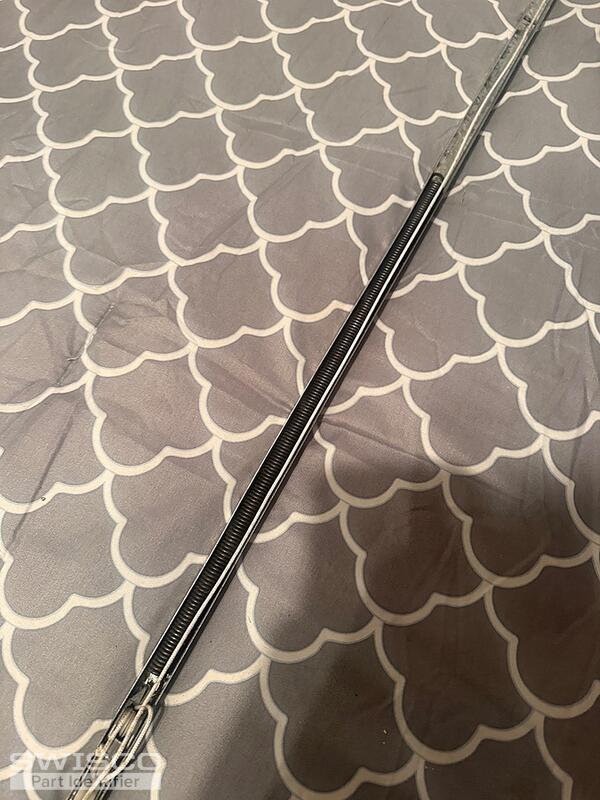

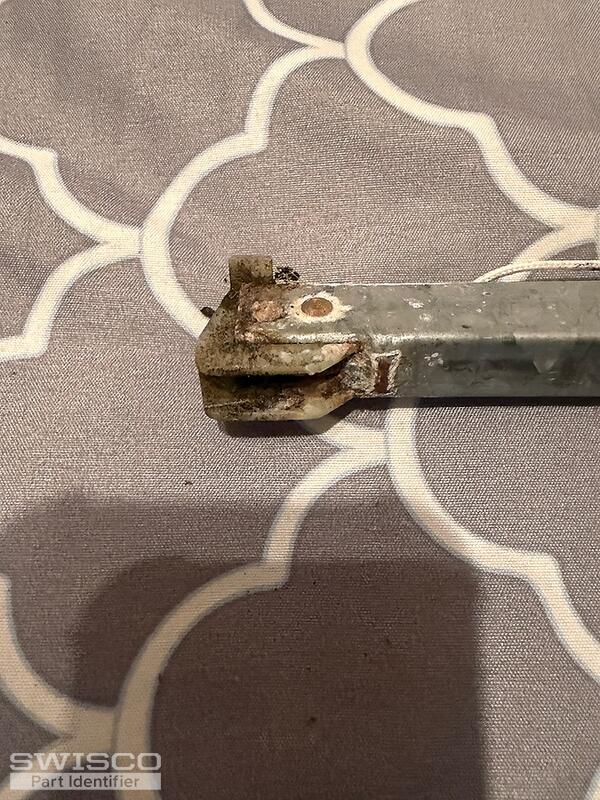

5/8 inch. 29 inch metal without ends

Spring retention possibly 3

5 user uploaded images

2 Replies

Jasmine from SWISCO

Mar 20, 2026 12:02 pm

Hello,

Thanks for reaching out! This window balance can be replaced with either the S378-29 or the S380-29. To determine which series you have, confirm the depth measurement of the bottom shoe.

Our 2830 stamp may work in place of your 28-C-30 stamp but it would be a good idea to double check that your sash weight falls between 16 to 23lbs.

Comparison of the S378, S380 and S385 balance shoes.
