Bob from SWISCO responded:
July 22, 2020

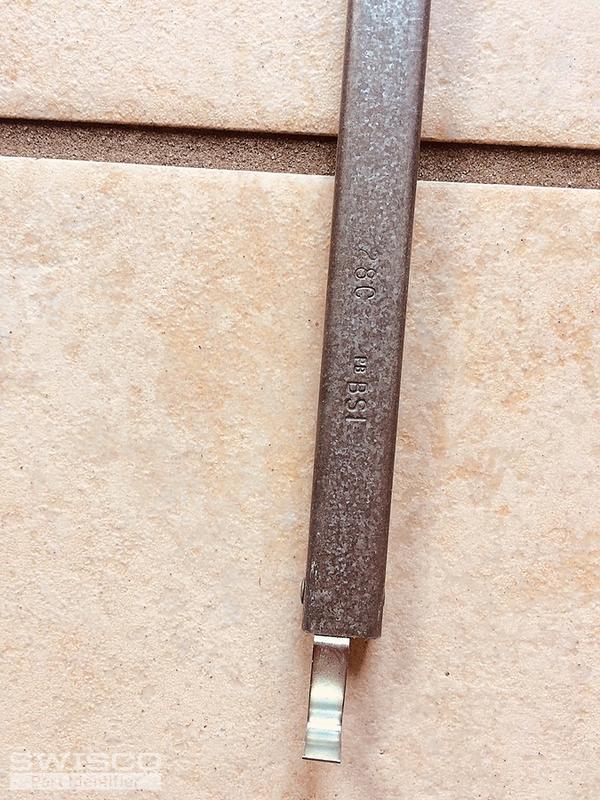

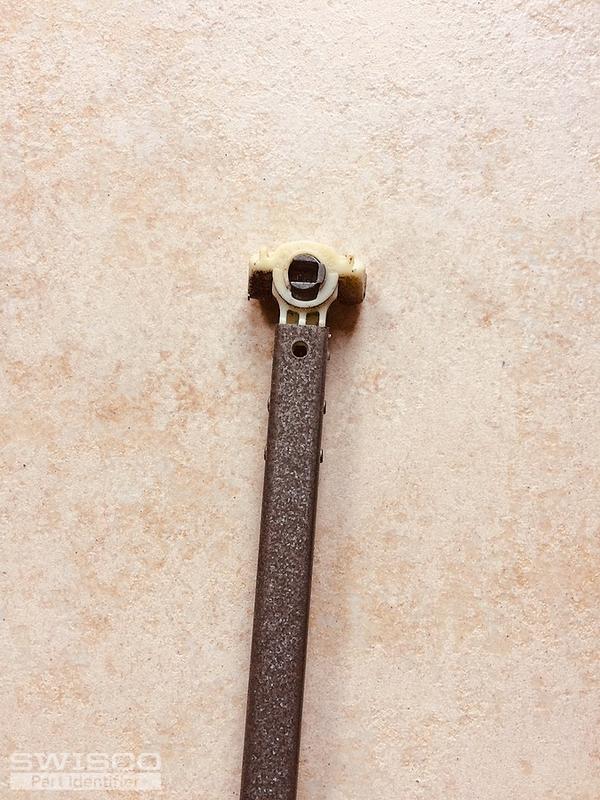

Confirm that the metal channel length, not including the attachments at either end, is 28" exactly. If so, this looks like an S795-28 to me, with a stamp option of 28C. This is used for tilt windows, so I'd double-check the configuration of your window to be safe. See if your balance's bottom t-lock shoe matches the dimensions of the 15-195, the shoe that comes by default with this balance. Let me know if it differs at all. Finally, one difference between your old balance and our standard ones is that ours attach to the top of the window jamb with a screw-on tab, while yours has a hook like our 15-198. Can you show us a picture of the hole in the window that this hook attaches to? That will clue us in as to the best course of action here. |

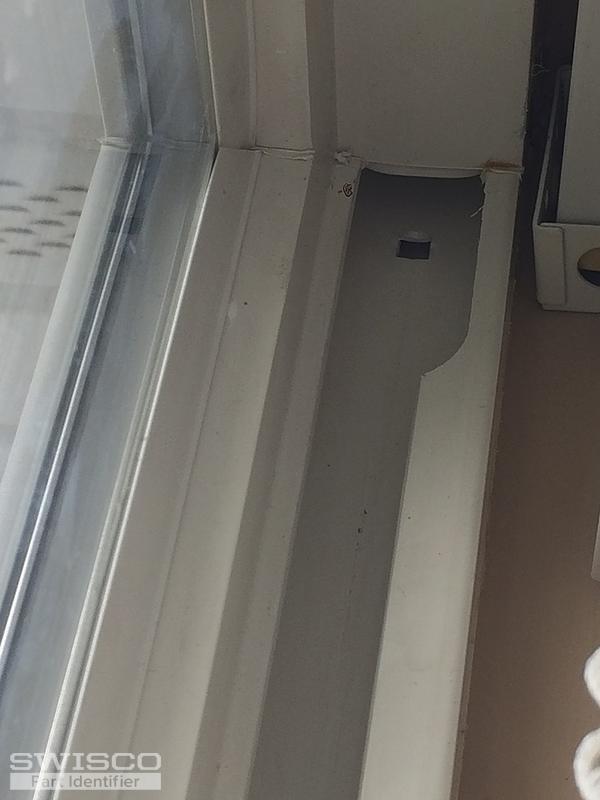

Hi Bob, yes the metal part is exactly 28". Here is a picture of the hole in the window.
As for the bottom shoe, it's the same size as what you sent me
Bob from SWISCO responded:
July 23, 2020
|
