Window coil balance

Handy Person from Marlton NJ

Balance coil on upper is marked 17. Lower balance coil is marked 14. I also need 3 sets for duplicate windows which are upper balance 15 lower balance coil is 13. Your quick response is greatly appreciated.

There are two more windows upper is marked 11and the lower sash is marked 10.

Jim

4 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Jim,

The coil balance assembly you have here reminds me of the Series 140 Quick-Tilt Balance. To determine if this will be a fit in your windows, take a look over the dimensions.

The stamps on the coils indicate the amount of tension the springs on the assemblies hold. I've tagged the corresponding coil balances for the stamps you've confirmed below. Be sure to double check the stamps on each of your springs.

Alternate image for S140-10
Alternate image for S140-10

Handy Person from Marlton NJ
The dimensions are correct. I don't see how the coil is mounted to the window frame.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

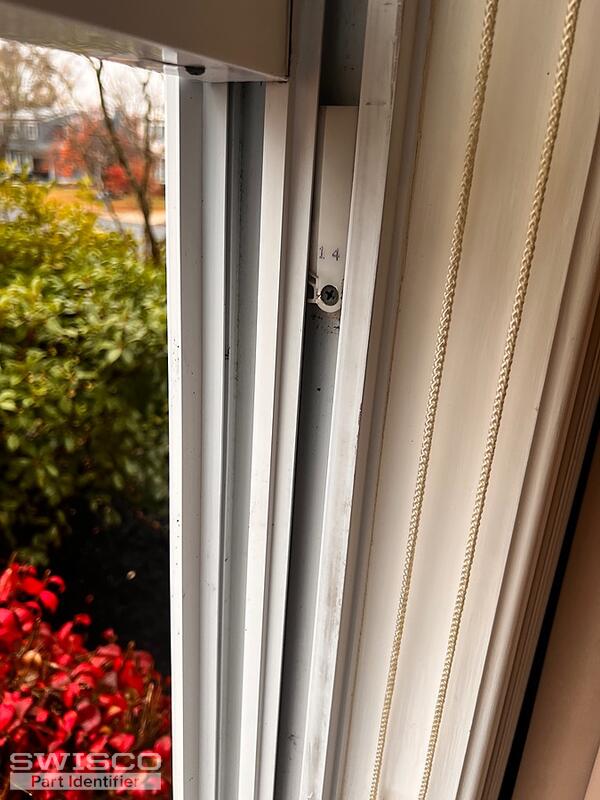

Okay, prefect! The coil housing on the assembly has an installation hole, like the 14lb coil in your photo. The dual coils on have one installation hole as well.
