Window coil replacement parts

Home Owner from Medina ohio

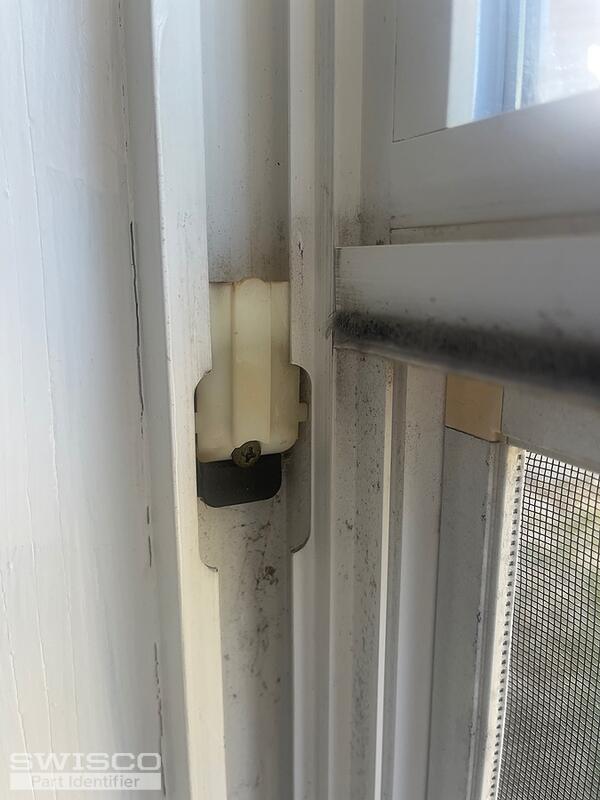

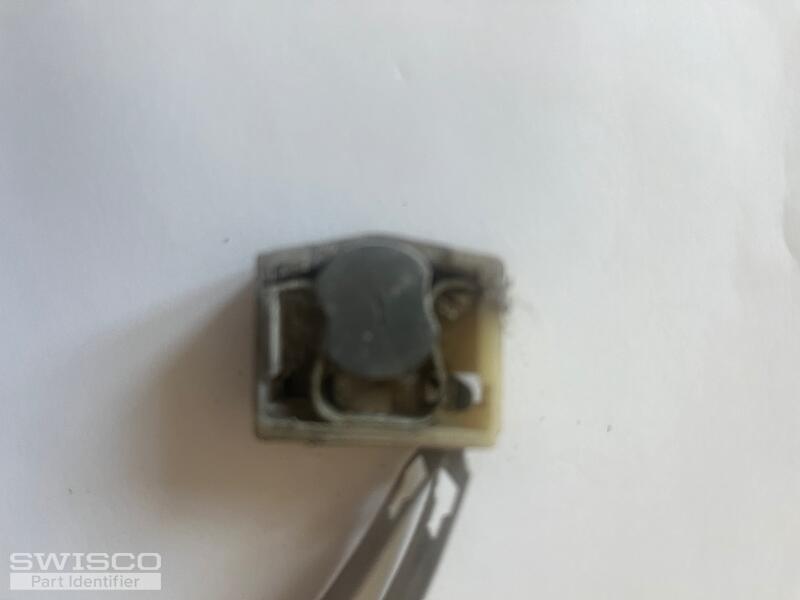

Metal coil has USA pat 5232208 and Omega #5.5 64"
No info on white part

Have different sized windows throughout the house.
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. This looks like a 15-111 Pivot Shoe. If the coil springs are 1/2" thick, then you can use the Series 160 Coil Balances. For any stamps '5.5', you can use the S160-05 5.5 springs. Let me know if you have any questions about this hardware.

Home Owner from Medina ohio

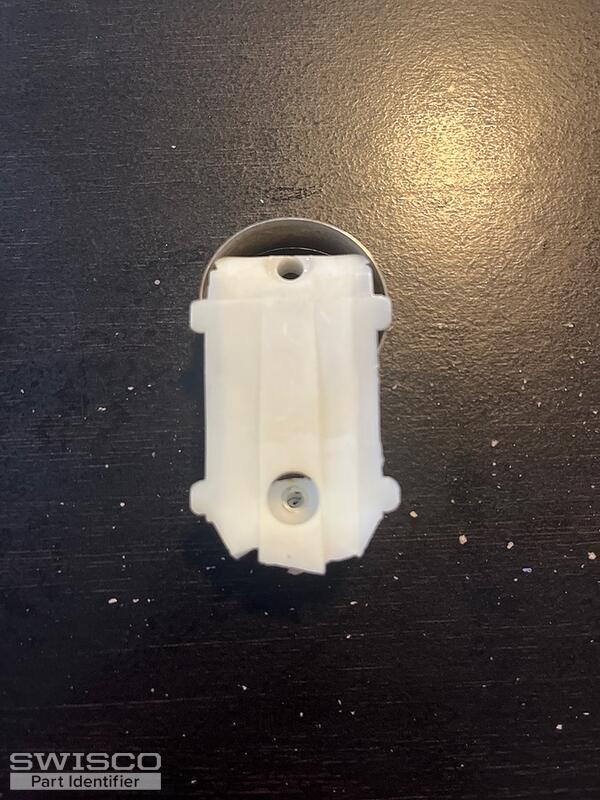

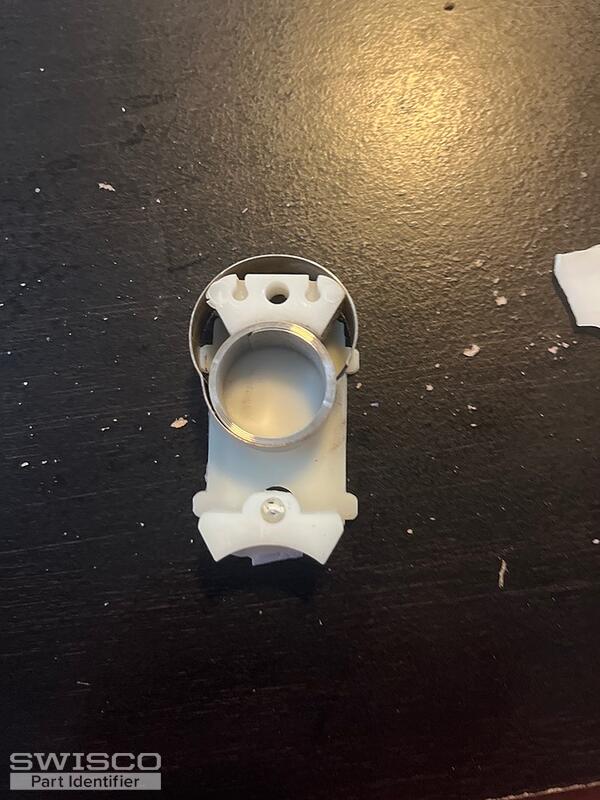

Thanks. I have a few more questions. First of all do I need two of the coils for each since the old ones have two attached to the pivot shoe? And I also have this part below. Can you identify it also? I appreciate the help.
2 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

If there are two coil springs on each side of the window sash, and both are stamped '5.5', then yes, use a pair of the S160-05 5.5 springs on both sides of the window. For a double coil housing, see the 15-150D
