Window coils

A home owner from Fox Lake, IL says:
September 14, 2020
I need 1 set of coils and 4 balance covers. In the photos the exposed coils are damaged and the cover has crumbled as a result of the sun damage. The photo of the cover with the tape measure is what I need to replace on 2 window frames totaling 4 covers. Finally the label for the brand of windows.
Thanks in advance.
Thumbnail of the uploaded file named AD964241-2CE0-4563-80D3-1DDE6E4C1907.jpeg
Thumbnail of the uploaded file named 7F022C64-EE68-45E3-B1F3-FDFB9AE05996.jpeg
Thumbnail of the uploaded file named 7EA32568-44B6-48CE-9564-8923C9FDA7F0.jpeg
Profile picture of Tom
Tom from SWISCO responded:
September 16, 2020

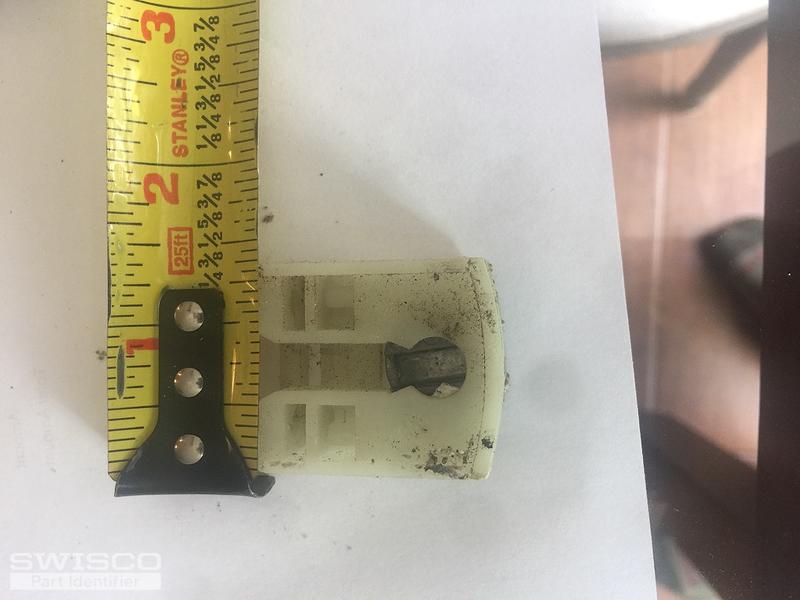

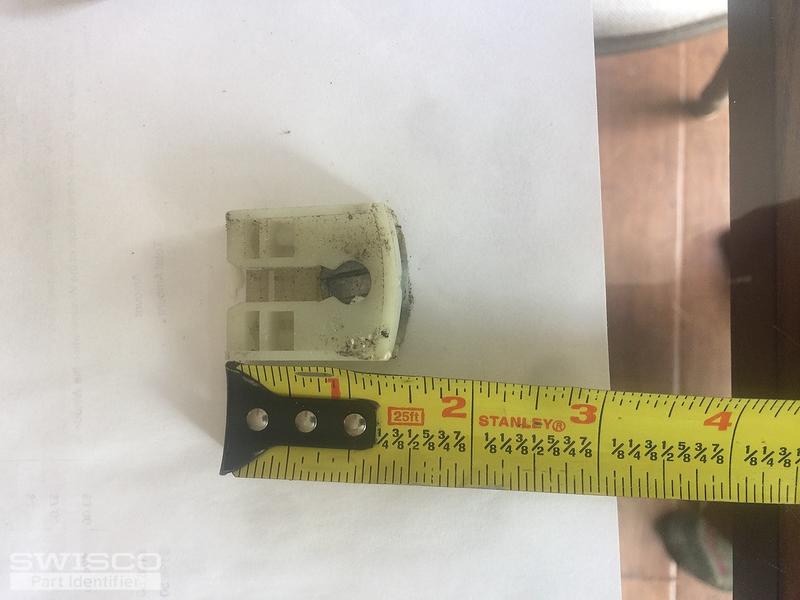

We should be able to help, but I need more information in order to identify the right parts. First, can you show me a picture of the pivot shoe to which the coils connect? Can you also tell me how thick the coils are? Finally, how many do you have per side? It looks like 3, but I could be wrong.
A home owner from Fox Lake, IL says:
September 17, 2020

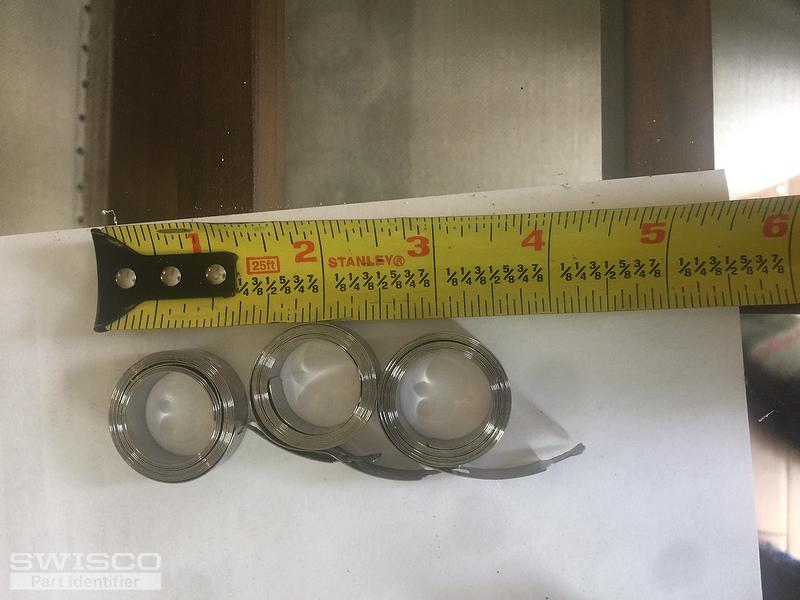

3 coils per side.
Thumbnail of the uploaded file named F522CDBF-CB36-4112-8E9D-9AC8E339353E.jpeg
Thumbnail of the uploaded file named 6E440821-F107-4CB5-92D6-69627CFB191C.jpeg
Thumbnail of the uploaded file named DFBF8721-A0DD-4601-88B7-4528A98B7C25.jpeg
Thumbnail of the uploaded file named B0EC2281-0C43-45A4-91DE-7607FC440918.jpeg
Profile picture of Tom
Tom from SWISCO responded:
September 18, 2020

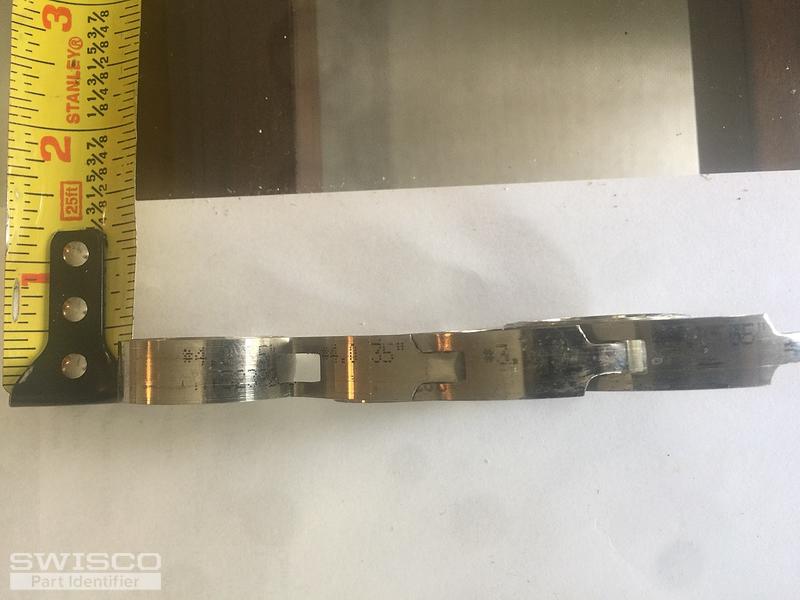

It's tough to make out the thickness of your springs from this photo, but it looks to be under 1/2". Based on that, and the style of your pivot shoe, I feel like our Series 165 is a match for your springs.

Since you're using three springs per side, you want to go with the 15-205 triple support cover.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
3/8" Egress Coil Triple Support
3/8" Egress Coil Triple Support
15-205
$2.10
