Window control tube assembly

A quick learner from Evansville Indiana says:
November 7, 2021

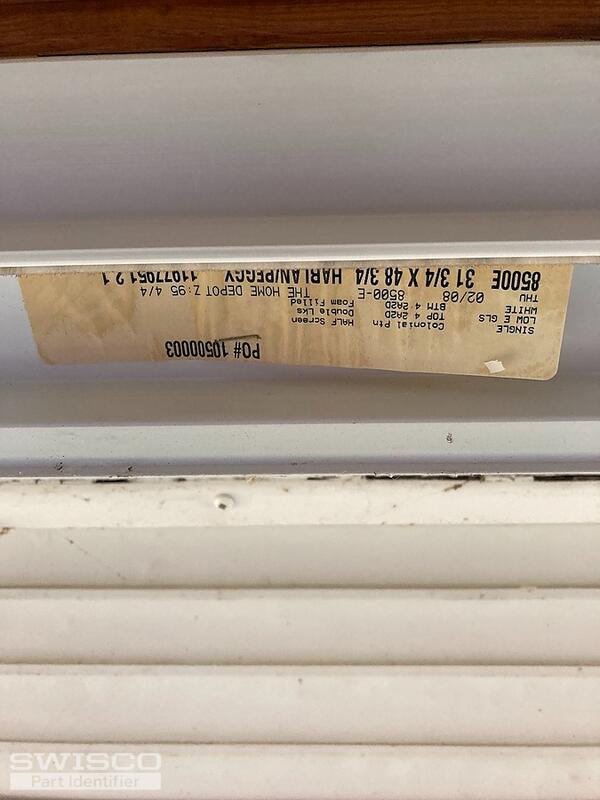

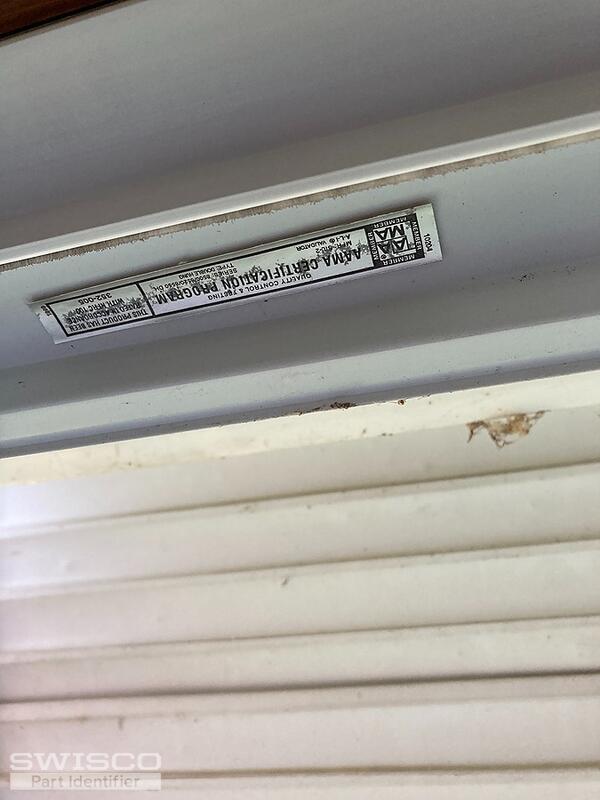

Hello, I am looking for the window control tube assembly. The problem is the eye is broken at the bottom of the tube where the window tap fits in. Can you help please. Thanks ! Kevin

Thumbnail of the uploaded file named 8AE19FDF-E4A5-4F87-98F2-4A2DF2110CBA.jpeg
Thumbnail of the uploaded file named 16649A3A-D403-41D9-87F4-6843A9E227A1.jpeg
Thumbnail of the uploaded file named 02C159F1-261F-4A60-93EC-CD4C8CF959C2.jpeg
Thumbnail of the uploaded file named 5857086F-C3D9-4356-A264-F68FA0D06E14.jpeg
Thumbnail of the uploaded file named 5E4CF099-D4F4-45F0-A014-EB519C0DF2EB.jpeg
Profile picture of Lauren
Lauren from SWISCO responded:
November 10, 2021

Hello, thank you for posting!

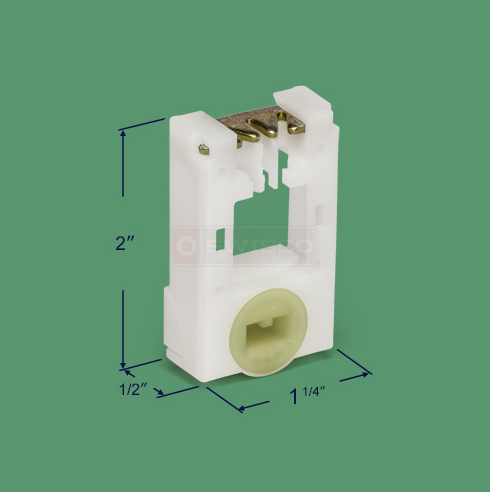

Based on the pictures, your pivot shoe resembles our 15-046, but you will need to remove the pivot shoe to obtain the width and thickness to confirm. For the spiral balance, please compare our Series 900 (3/8" diameter)  or Series 600 (5/8" diameter). You will need to measure the diameter and the length of the tube. Please let me know if you have any questions.

Swisco.com
Detailed image of the pivot bar slot of the 15-046 pivot shoe.
Detailed image of the pivot bar slot of the 15-046 pivot shoe.
A quick learner from Evansville Indiana says:
November 12, 2021
Will do thank you !
Profile picture of Lauren
Lauren from SWISCO responded:
November 12, 2021

Please let us know if you have any additional hardware questions!
