Window crank

A quick learner from South Carolina says:

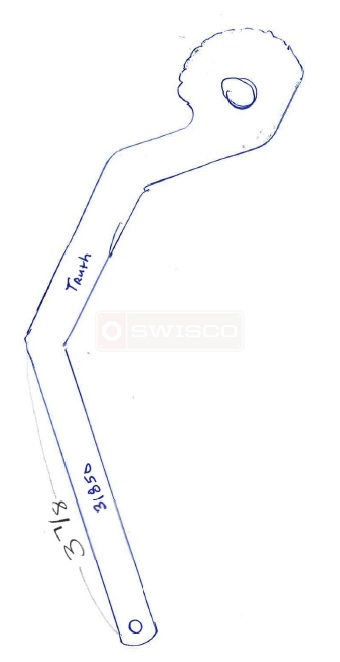

This is a piece of the hardware that is broken.
arm
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
I'm not sure what to recommend. Can you show me a picture of the complete operator? Your drawing shows the arm, but we would like to see the complete unit, if possible. Thanks!
A quick learner from Charleston SC says:

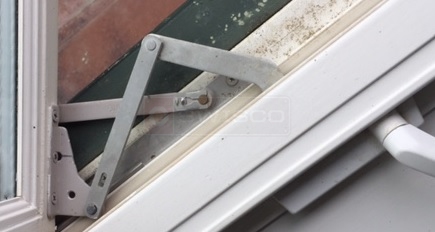

Attached is a photo of the window showing the complete unit.

Terry
operator crank
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
Thank you. This looks a lot like our 39-316, but your dimensions are a little different. I would double check your measurements to see if this could possibly work.
A quick learner says:
The measurement from hole to hole is 4 1/2".

I hope that this helps.

Terry
Profile picture of Tom
Tom from SWISCO responded:
Are you talking about the link arm, or some other part of the operator? If you're talking about the link arm, I'm afraid we have nothing in that size. You could possibly swap the old and new link arms out. You can install the old link arm on the new operator using a rivet like our 62-014.
