Window crank for JEL-N-575 casement window

A quick learner from Paris. kY. 40361 says:
April 28, 2022

The rank on my window is starting to grind and it close the window completely. I want to replace it before the windo will not close anymore.

What is the part # and price for a replacement crank assembly?

The crank arm mechanism has a code of 20755Thanks

Thumbnail of the uploaded file named webcam-4/28/2022, 2:14:41 PM.png
Profile picture of Casey
Casey from SWISCO responded:
May 2, 2022

Hello,

We'd be happy to look into this for you but we'd need to see your operator with the window open so that the arms that move the sash are fully visible to compare to our inventory. Thank you!
A quick learner from Paris, KY 49361 says:
May 3, 2022

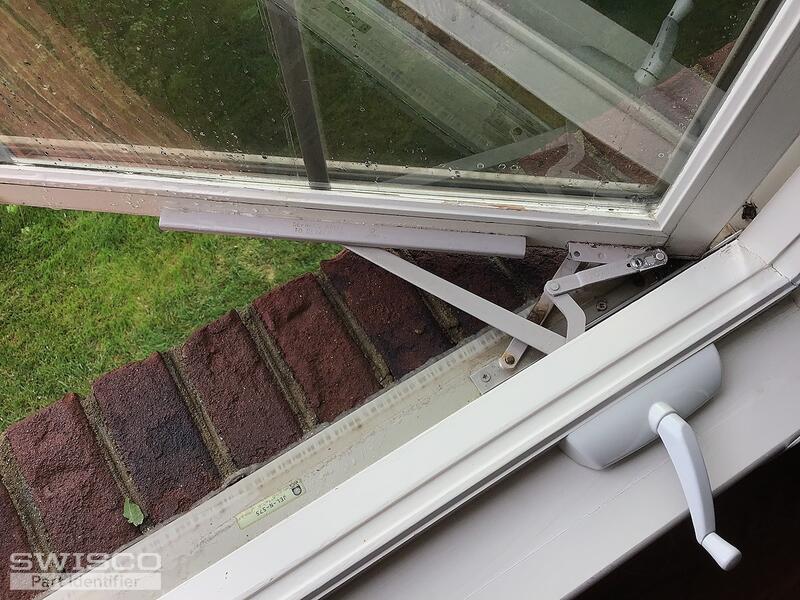

Here are the pictures with the window open.
Thanks!
Thumbnail of the uploaded file named 15DA6177-882C-4E4A-9544-4558F8114BD2.jpeg
Thumbnail of the uploaded file named E688DB77-CC53-4D47-B70C-19C565C3F32D.jpeg
Thumbnail of the uploaded file named 53D02792-5DC1-4151-8119-5B489207354F.jpeg
Profile picture of Casey
Casey from SWISCO responded:
May 4, 2022

Great, take a look and compare the dimensions of the EntyGard 39-031 and 39-032 operators to your assembly, which both use the 39-107FK handle and cover kit. Thanks for posting!
A quick learner from Paris, KY 49361 says:
May 4, 2022
The short arm is 3 3/4 inch, long arm is about 9 1/2 inches?. The image dimensions are longe than both arms of my unit.
Profile picture of Casey
Casey from SWISCO responded:
May 4, 2022

In that case, it sounds like you'll need the Caradco 39-155 and 39-156 for your windows. We'll include the dimensions from the operator product page below. Just make sure that you are measuring as shown in the diagram.


Dimensions for 39-155
Dimensions for 39-155
Truth Folding Handle And Cover Kit
Truth Folding Handle And Cover Kit
39-107FK
$15.45
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-155
$29.85
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-156
$29.85
