Window crank handle

Quick Learner from Fremont ca

Mar 28, 2019 1:33 pm

I have a missing window crank handle similar to the picture I have attached. please call me or email me if you have this replacement part.

Thanks,

John

2 user uploaded images

6 Replies

Bob from SWISCO

Mar 29, 2019 8:46 am

Hi John. I think we can help you find a replacement operator, but it's difficult to say which one you need without seeing the original removed from the window. If you don't have the original, but think the other one in your pictures is the same, can you show it to us, removed from the window, with the link arm(s) in full view? That will help narrow down what you need. Many thanks.

Quick Learner from Fremont ca

Jun 1, 2019 11:23 pm

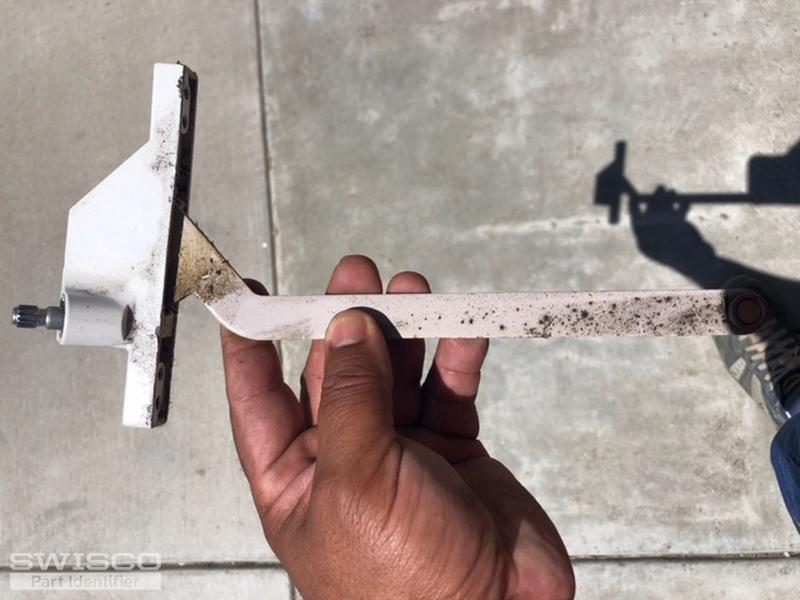

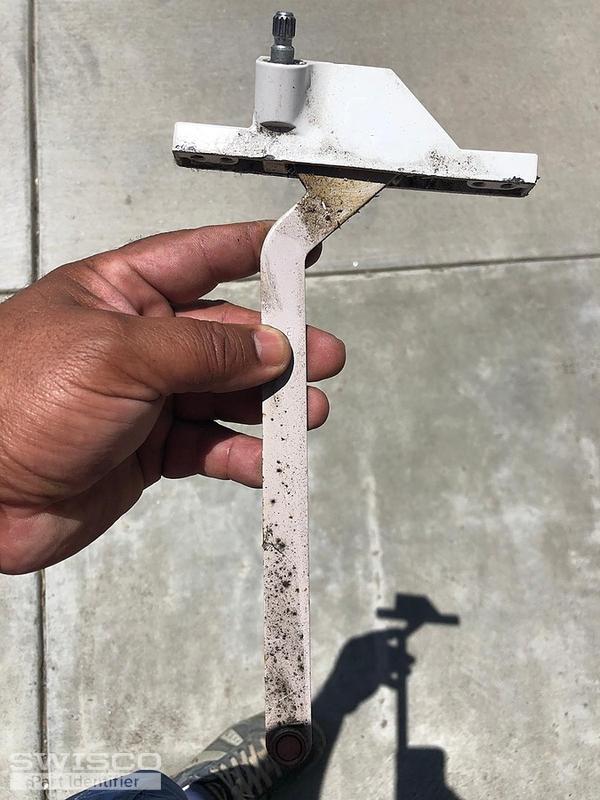

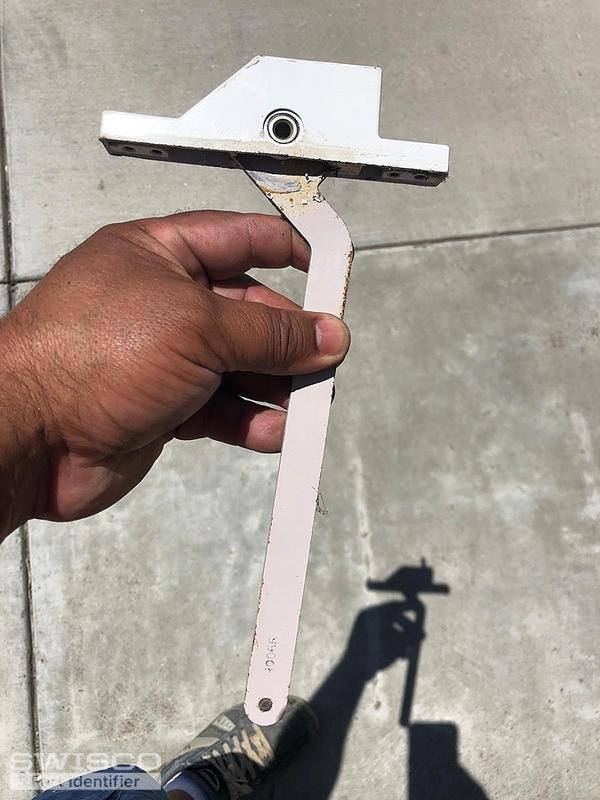

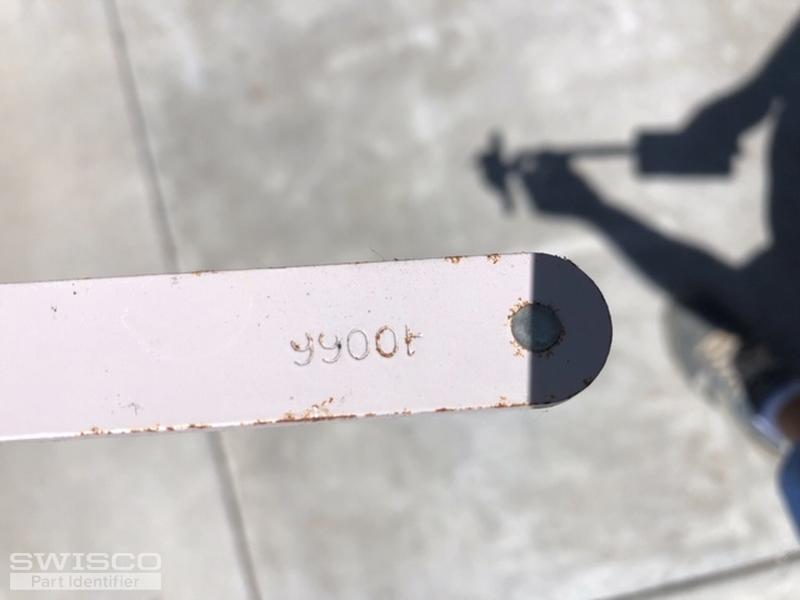

Hi Bob, I was finally able to remove one operator arm from the window, and take the pictures. Attached is the 5 pictures from different angles.

Please let me know if you have a similar one and can ship it to me.

Thanks,

John

5 user uploaded images

Bob from SWISCO

Jun 4, 2019 11:49 am

Perfect, thanks John! Please see our 39-138, I think you'll find this is a pretty good match. Also see the 39-139 for the opposite side.

from Fremont ca

Feb 1, 2020 4:37 pm

Hi Bob,

Thanks for the reply.

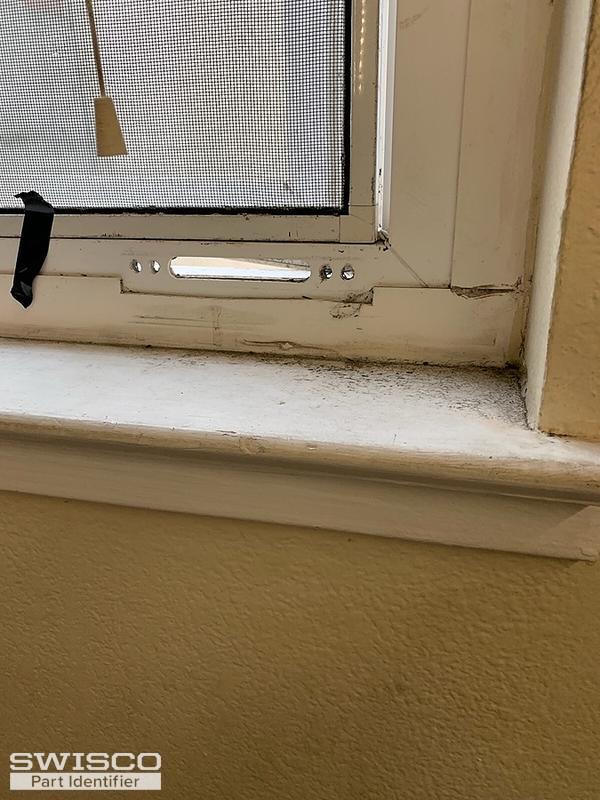

Along with part # 39-138, I will need all the related parts. Currently as shown in the attached picture there is only an empty slot. I need to install a complete set for part # 39-138 to make this window operational.

Can you please advise what are all the related parts I will need along with part # 39-138 to make the window functional to open and close the window?

1 user uploaded image

Bob from SWISCO

Feb 4, 2020 11:48 am

The only parts the 39-138 needs to function is a track and a handle. See our 39-504, which installs under the sash and gives the end wheel of the 39-138 something to fit into. See also our 39-205, which will allow you to actually turn the crank.

I'm not sure what else you may need, to be honest. It's very difficult to identify missing hardware since we'd have nothing to go off of. If you have an identical window that still has all its hardware, you can use that as a reference. We would need to go on a part-by-part basis.
