Window crank mechanism-Jeld Wen

Home Owner from El Dorado Hills, California

Oct 25, 2020 6:32 pm

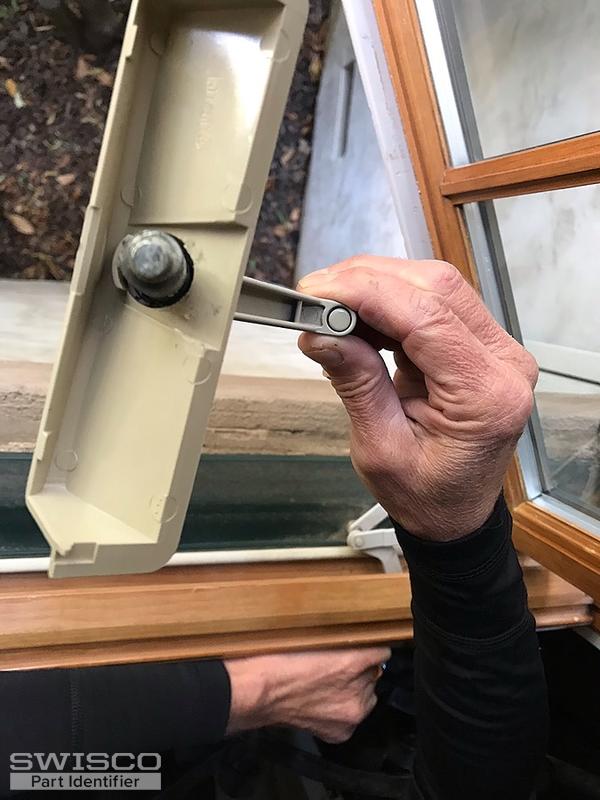

This is a 20" by 20" window installed in 1996. The crank mechanism is what I need to replace. Lock is okay...handle is okay.

2 user uploaded images

4 Replies

Tom from SWISCO

Oct 29, 2020 3:05 pm

It sounds like you need a new operator. We can help, but we will need to see the entire part. Your picture only shows the base. If possible, please open your window and show a clear top-down view of the operator so that we can match it up to something in our catalog.

Home Owner from El dorado Hills, California

Nov 5, 2020 7:28 pm

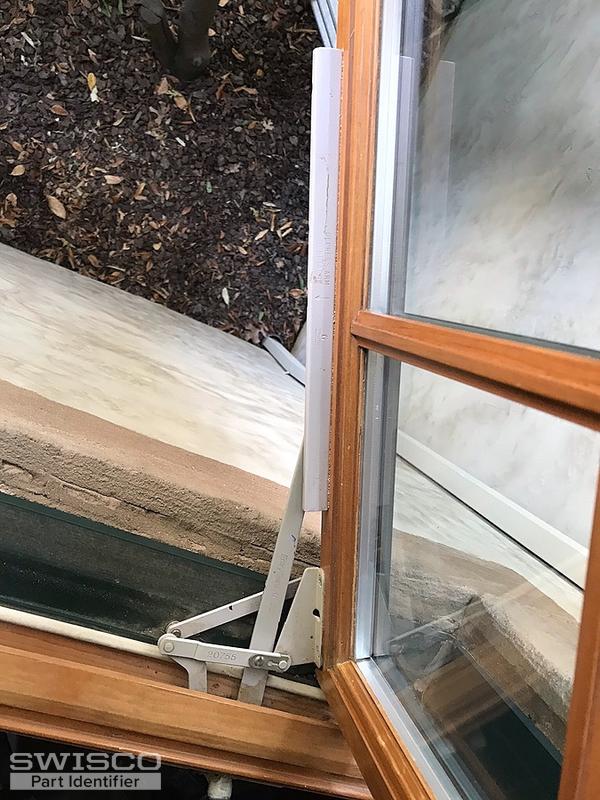

I had replied a few days ago with pictures and a possible part number but had not hear back, Was concerned it did not go through so I am sending again. Number 20755 is stamped on the arm. Hope this is the number you need. Let me know if you have the parts .....cost and availability. Thanks again.

3 user uploaded images

Tom from SWISCO

Nov 6, 2020 9:21 am

Thanks! These photos are a huge help. My recommendation would be the 39-156 and 39-155 operators. I am very confident that these will work for you.
