Window crank replacement help

Question

Hello,

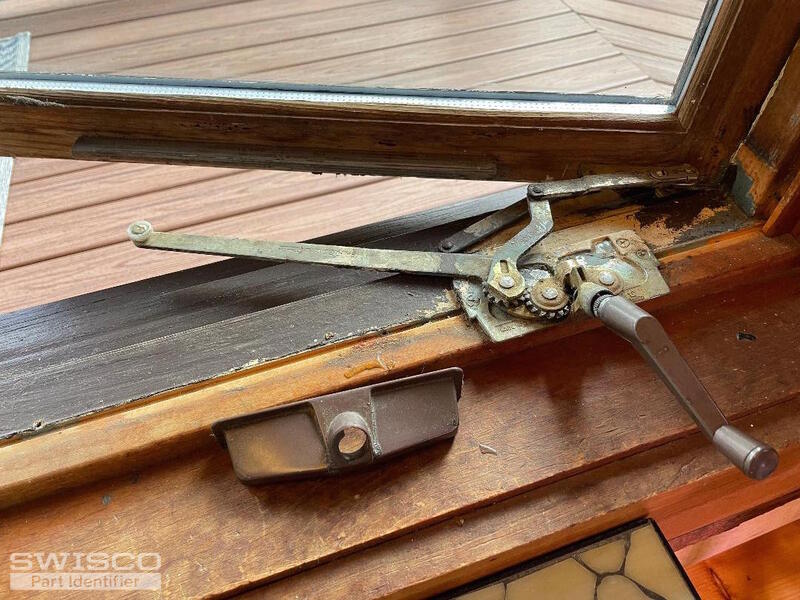

I believe the picture I shared is right handed crank. The handle no longer stays in the crank when I try to close the window. What parts do I need?

Thanks!

Emily · Accepted Answer

Hi there!

Thank you for your patience during this busy season.

It sounds like your worm gear might be stripped. When this happens, I'm afraid it means the entire operator has broken down and needs to be replaced.

Take a look at the following two sets of operators: our 39-031 & 39-032 or 39-155 & 39-156. Carefully review the dimensions for each set and compare them to your original assembly to see if any match what you need.

If you need a new handle as well, please see our 39-114L or 39-205, depending on the style you prefer. For a new cover, see our 39-107.

If you have any further questions just let us know!
