Window cranks

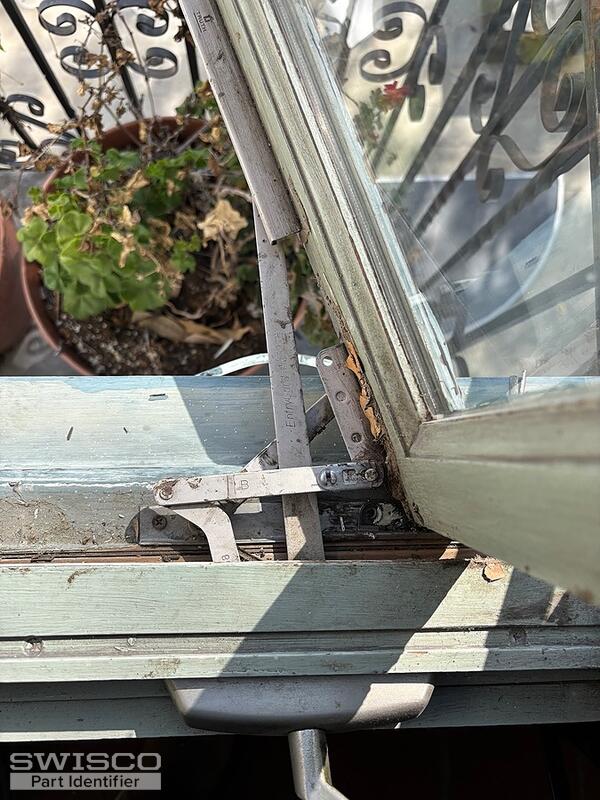

This window operator reminds me of the 39-155 and 39-156 Caradco Window Cranks. You'll need to measure the arms to confirm that this is the right replacement for the window. Be sure to double check the length of the link arm.

The compatible hardware and accessories have been tagged below in case you may need to replace them as well.

Dimensions for 39-156

Hello,

Yes, I did see that arm. However, you'll notice the third arm, below the crank operator, is part of the casement window hinge. It is separate from the operating mechanism, so the operator should only have two arms. If the link arm on the operator in the photo is longer than 3-13/16", you may need the 39-031 and 39-032.

If you need to replace the hinges, you can likely use the 36-048 2-Bar Hinge Set, but you'll need to compare the dimensions shown on the website before making your purchase. These can be used to replace the top and bottom hinge for right and left handed applications.

I hope this helps!
