Window hardware

Question

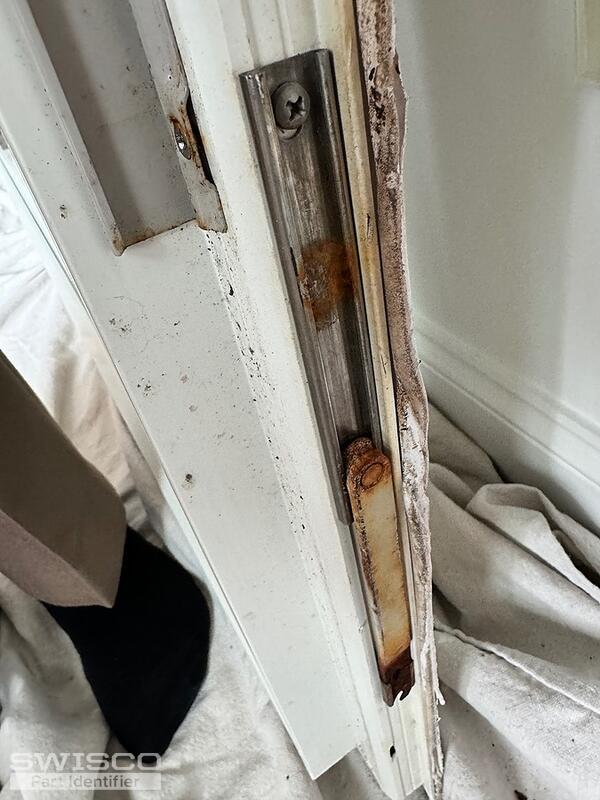

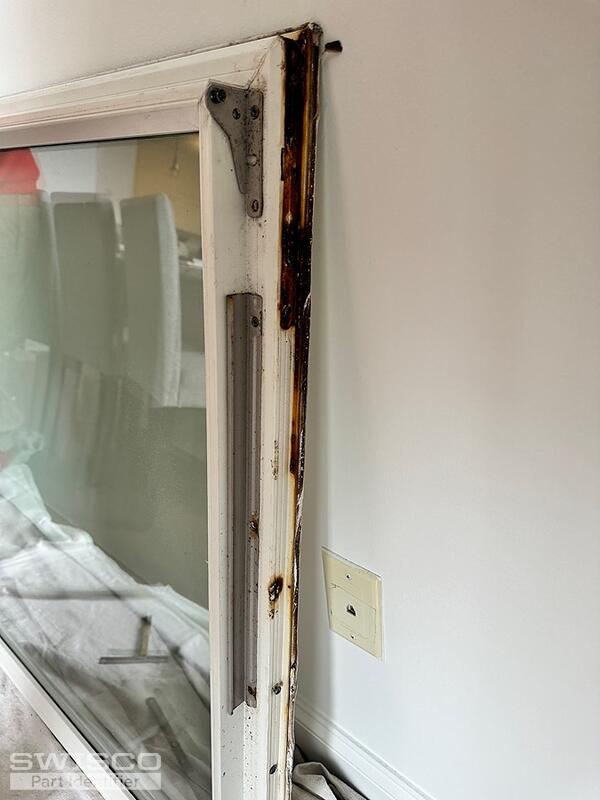

Hi, please help me identify the parts for this casement window. I would like to replace all the hinges and supporting brackets and the cracking mechanism as well.

Bob · Accepted Answer

Thanks for posting. I believe the casement operator is either our 39-253LB or 39-438B. The video below explains the difference between these two operators. Take a look to determine which you need.

If you have the 39-253LB, see the 39-529 track slider and 39-528 track. For a new cover and handle, see either the 39-375 or 39-451, depending on the style you prefer. For a new stud bracket, see the 39-545 and 39-546. For a new hinge set, see if the 10" 36-004-10 matches what you have. Let me know if you have further questions.
