Window hardware replacement

A quick learner from Marietta, GA, USA says:
I have 16 windows total I'd like to replace the hardware on since the room has been painted. Please see attached. I'm envisioning replacing the cover, the handle and the sash lock. I think I have the correct items in my cart alread but would like some confirmation prior to ordering, thanks!
Thumbnail of the uploaded file named IMG_5384.jpg
Thumbnail of the uploaded file named IMG_5385.jpg
Thumbnail of the uploaded file named IMG_7993.jpg

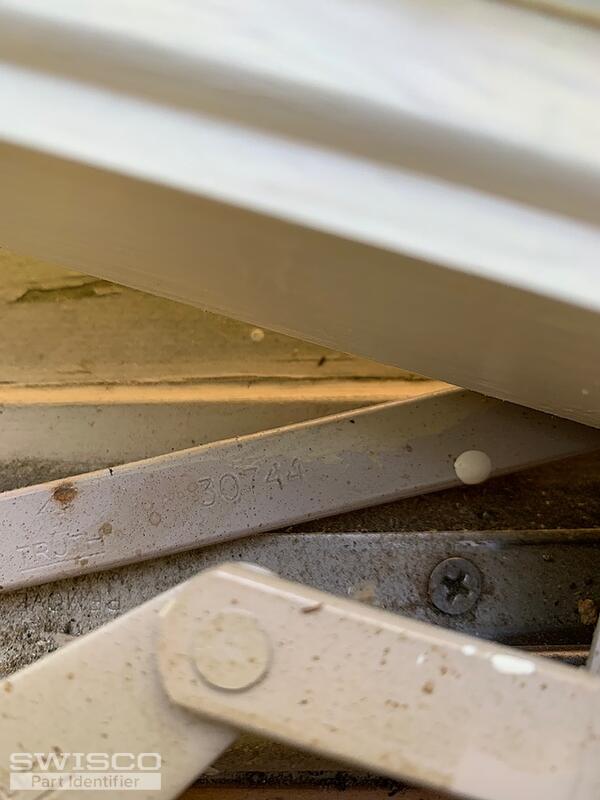

Thumbnail of the uploaded file named IMG_7994.jpg
Profile picture of Bob
Bob from SWISCO responded:

Hello there. This operator looks like our 39-155 and 39-156 type, and so the 39-107 cover and 39-114L handle should work for you. If you need to replace any locks on these windows as well, please send pictures of them and I'll do my best to find them.

A quick learner from Marietta, GA, USA says:
Thank you Bob. Do you have advise on these two items?

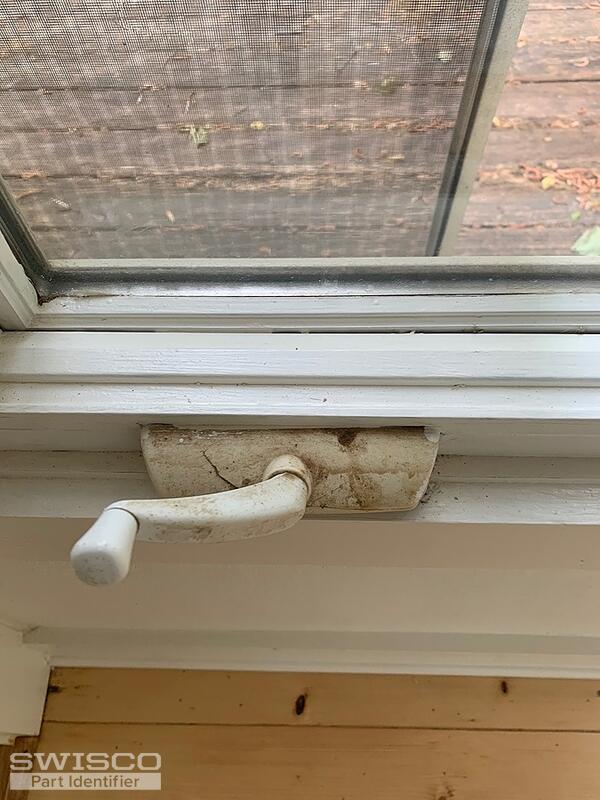

Thumbnail of the uploaded file named 64141049333__86365C7F-897C-4ABB-8053-B18A8DE5EBB6.

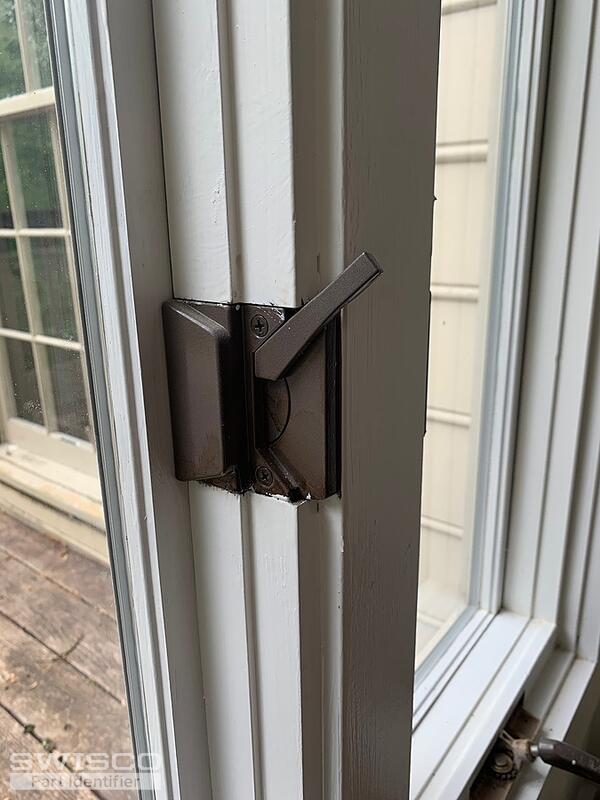

Thumbnail of the uploaded file named 64141045980__A19BC7FF-0F18-46C4-AC7D-3AD65B870E33.
Profile picture of Bob
Bob from SWISCO responded:

Sure, I actually think that operator in your first photo is the same as the one in your first photo, just using a different style cover. You should compare that to the hardware I've already recommended to confirm.

As for the lock in your second photo, this design is a little different than anything we have. I have a few ideas but I'd like to see the keeper it secures to before I make a recommendation. Let me know if you could get that for me.

A quick learner from Marietta, GA, USA says:
Bob - is the attached helpful?

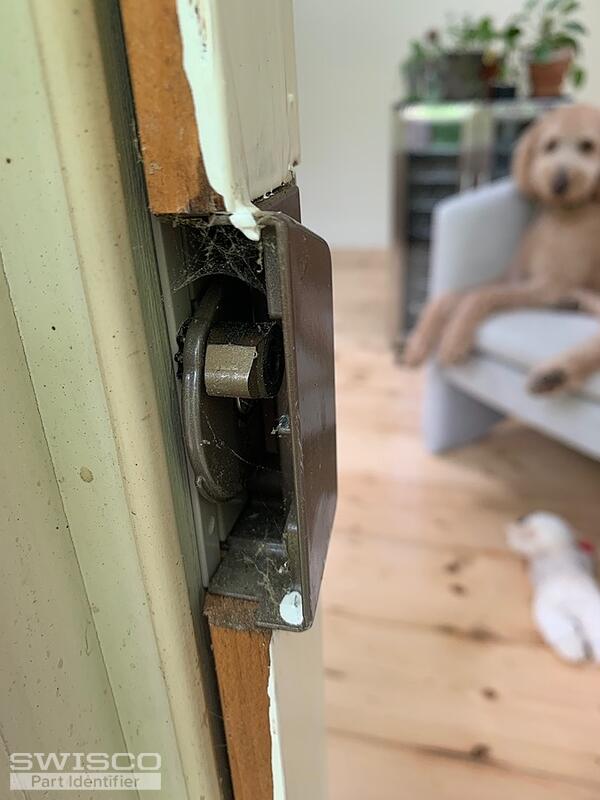

Thumbnail of the uploaded file named 64148246619__D9B23754-4645-401B-87BE-313F3A261C7A.

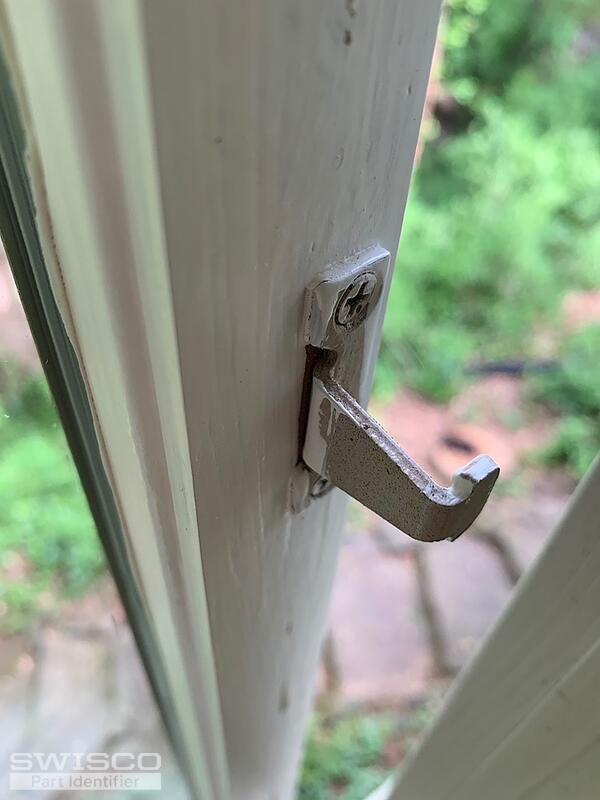

Thumbnail of the uploaded file named 64148240311__78C3E861-5F61-457E-8020-31F118EED84B.

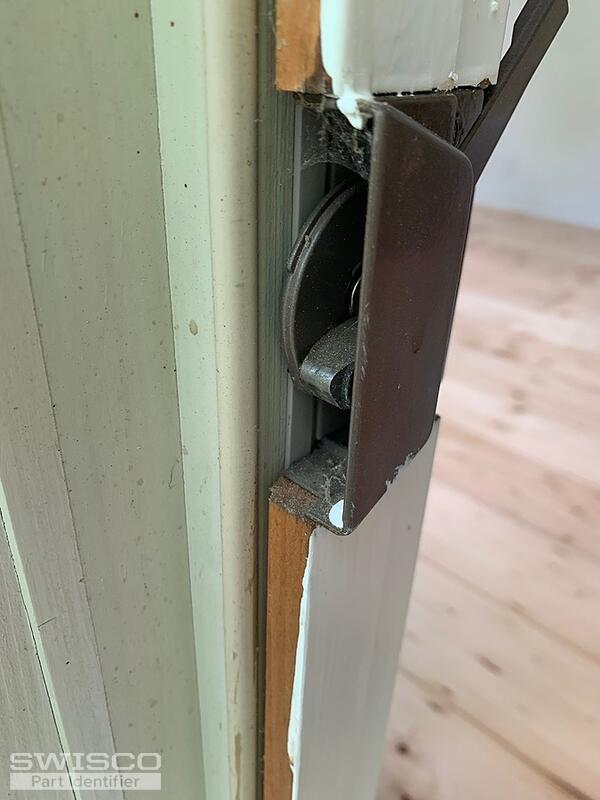

Thumbnail of the uploaded file named 64148236037__3412FA76-FACC-47C2-953B-D6BC7E506EE8.
Profile picture of Bob
Bob from SWISCO responded:

Thank you, that's exactly what I wanted to see. This looks like an older version of our 38-079 keeper, so I would recommend our 38-097 and 38-098 locks to replace the originals. You will also need the new style 38-079 keeper, too, since these locks won't work with the old one.
